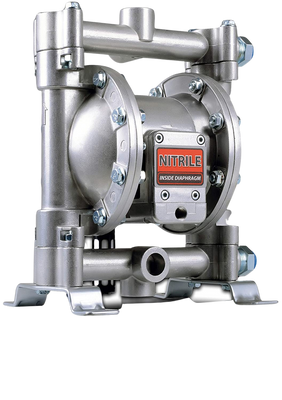

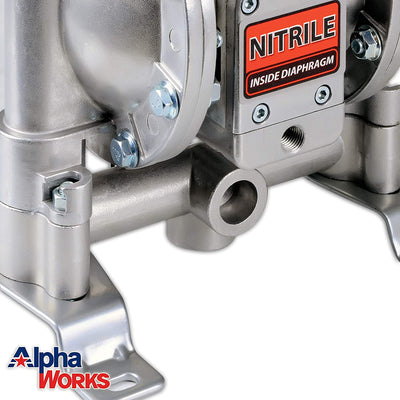

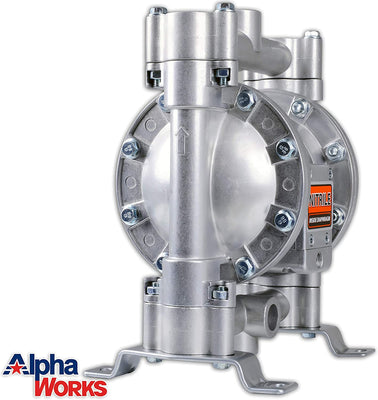

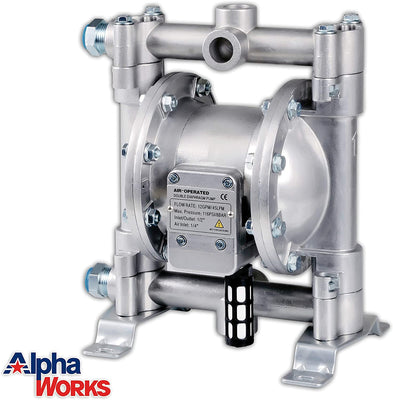

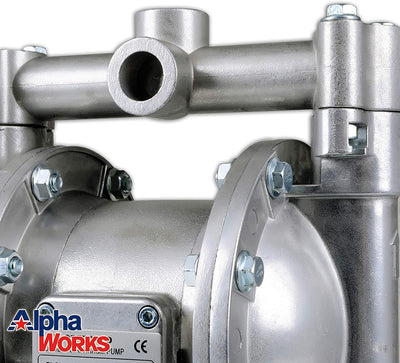

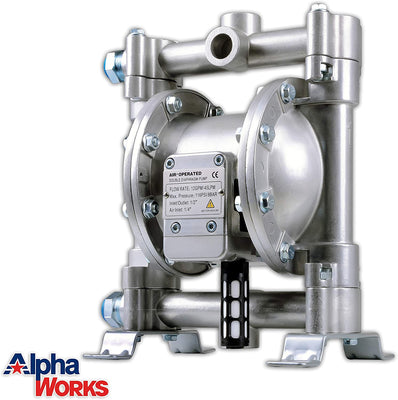

Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New

Manufacturer: Alpha Works

SKU: GUF014

Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New
Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New

QTY

(888) 999-1522

$ 289.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Ships Same or Next Day

If ordered by 12PM EST

Extended Warranty

×

Factory Warranty

  • Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$59.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$89.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Alpha Works GUF014 12GPM 1/2

Alpha Works GUF014 12GPM 1/2" In/Out 1/4" NPT Air Inlet Air Powered Nitrile Double Diaphragm Transfer Pump New

Product Overview

These pumps are capable of a max suction height of 10ft (3m) and a max head of 164ft (50m) for professional applications. All Membrane/O-Rings/Seals/Elastomers are of Nitrile/NBR/Buna-N material. For safety and best operational use always mount in the upright position, this pump is specifically for fuel transfer of [Non-Flammable Liquids like Diesel, Kerosene and Oil].

vendor logo
divider
authorized dealer
checkmark

1 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Alpha Works out of CA

checkmark

Authorized Alpha Works dealer

Features

  • 12GPM NITRILE ALUMINUM DOUBLE DIAPHRAGM PUMP - This Commercial capable 12GPM Diaphragm Pump is designed for all DIY or Professional applications. Capable of delivering fast flows & precision volumes of various fluids. Built to meet & exceed industrial grade quality standards & provide dependable performance. Manufactured to OSHA & ISO Regulations, making this a solid choice for the everyday Hard Working American!
  • GEARHEAD SPECS - This Pneumatic Diaphragm Pump has a Flow Rate of 12GPM/45LPM with Self-Priming capabilities. Max Pressure: 116PSI/8BAR with 1/2" Inlet/Outlets, an Air Inlet of 1/4" NPT, a Max diameter Solid of 1/8" & complete with a pair of PTFE Ball Valves.
  • SUPERIOR PRODUCT INTEGRITY - Our Diaphragm Pumps are compact, lightweight & built of a Aluminum body for rigorous applications & the Membrane/O-Rings/Seals/Elastomers are of Nitrile/NBR/Buna-N material. With a Max Suction Height of: 10ft (3m) & Max Head of: 164ft (50m) for professional applications.
  • SAFETY & BEST APPLICATION - This AlphaWorks Diaphragm Transfer Pump is to be mounted upright during operation for user safety. This pump is designed specifically for Fuel Transfer of [Non-Flammable Liquids like: Diesel, Kerosene & Oil] (DO NOT USE FOR GASOLINE, Bio-Diesel, Windscreen & Similar Chemicals).

Specifications

Air Motor Type Positive Displacement (aka Membrane Pump)
Manifold and Body Material Polypropylene
Diaphragm and O-Ring Elastomers Nitrile/Viton/FPM
Max Suspended Dia. Solids 1/8" (3mm)
Valve Type and Check Valves Ball PTFE
Max PSI / Flow Rate 116 PSI (8 Bar) / 12 GPM/45 LPM
Air Inlet // Inlet/Outlet Size / Average Air Consumption 1/4" NPT // 1/2" to 1"
Item Weight 17.66 pounds

Package Contents

Air-Powered Nitrile Double Diaphragm Transfer Pump

Instruction Manual

Warranty

vendor logo
divider
authorized dealer

Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
