Amscope SE306R-PZ-3M 20X - 80X 3MP Digital Camera Compact Multi Lens Stereo Microscope New
Share
Product Overview

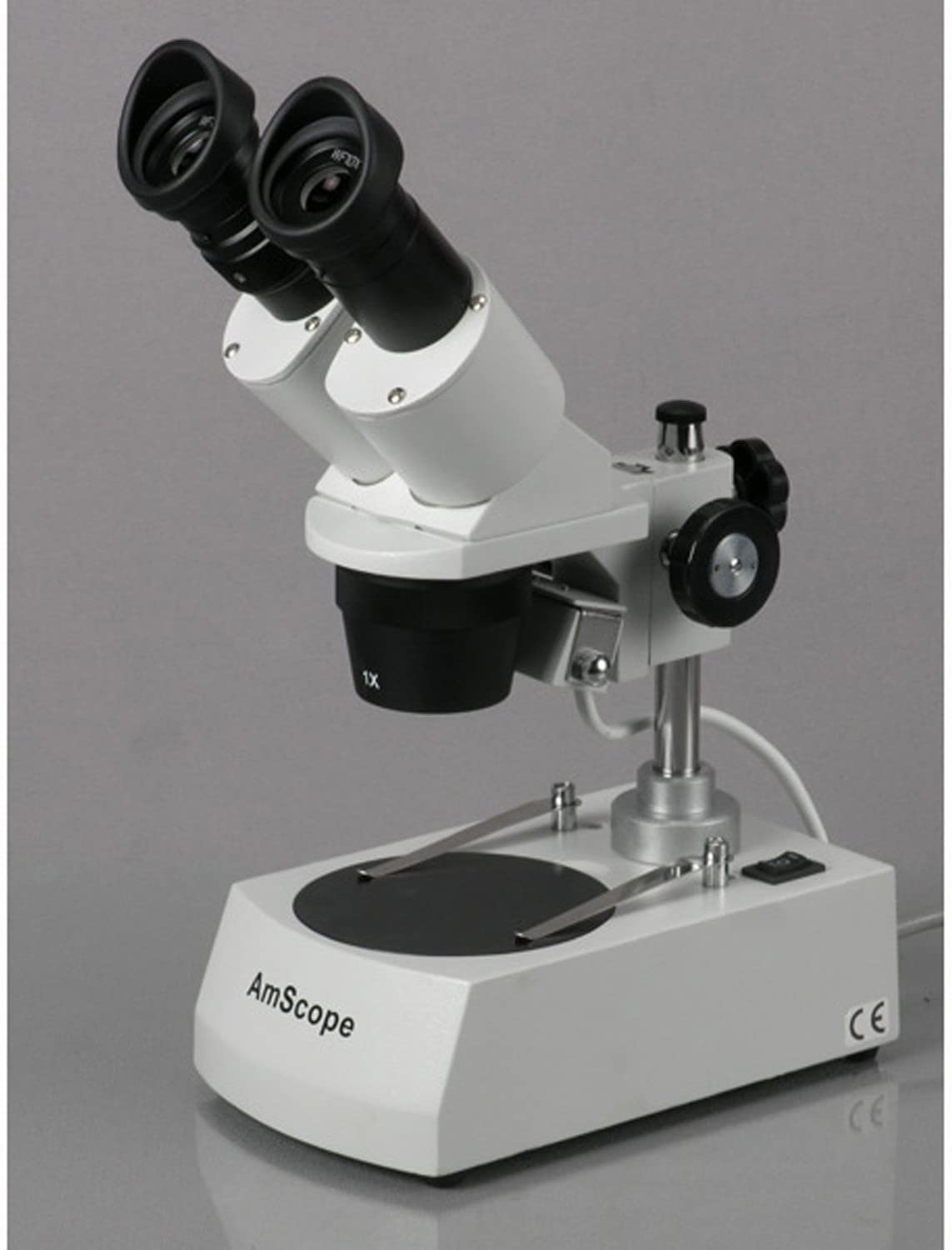

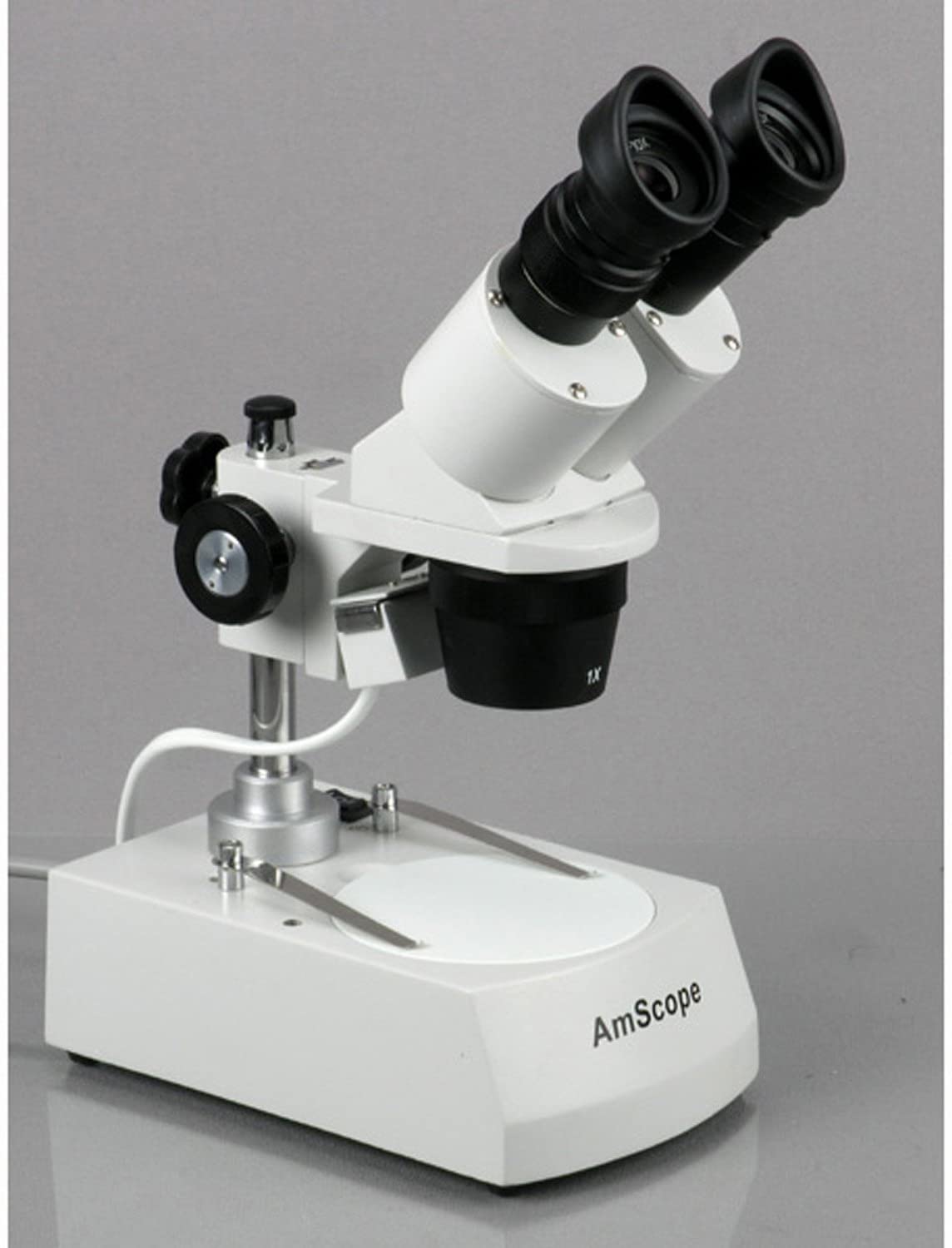

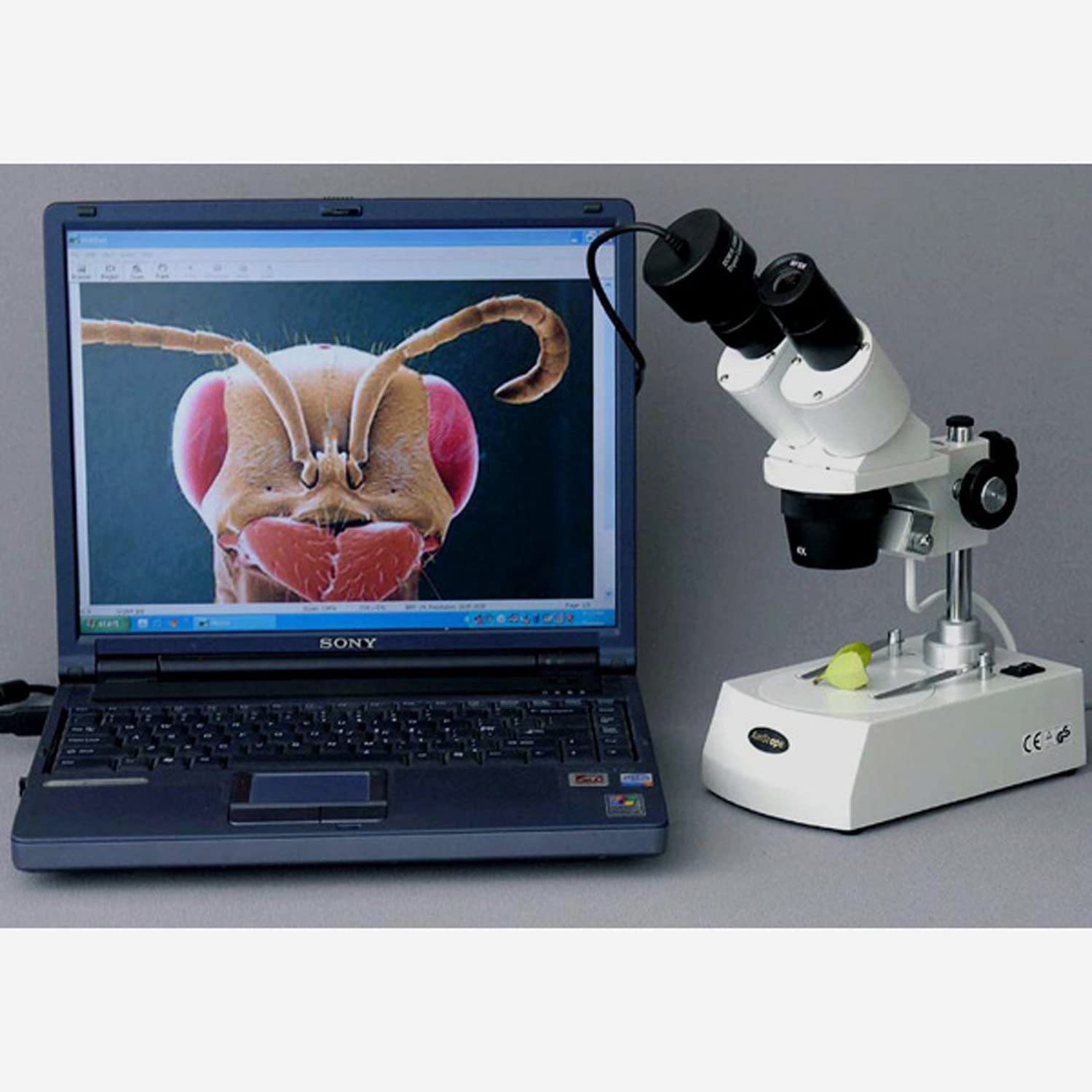

This forward binocular stereo microscope comes with 3MP color digital camera, offering three magnification power settings, 20X - 40X - 80X. The digital camera captures still images and video, and allows you to view a live stream on your PC.
This microscope is useful for many applications. It can be used in geology, forestry, archaeology, agriculture, biology and is appropriate for educational purposes in hospitals and schools.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- An affordable great stereo microscope with digital image system
- 45 degree inclined binocular head with locked in eyepieces
- Three magnification levels: 20X, 40X and 80X
- Sharp stereo erect images over a wide field view
- High quality original true color
- Ocular tube with adjustable diopter
- Accurate alignment ensuring a fatigue free long hour viewing
- Rugged metal frame and stand
- Full optical glass elements
- Precise ground glass lens
- All metal mechanical parts
- Adjustable interpupillary distance
- Built in both incident and transmitted illumination systems
- Upper/lower halogen lights
- GS and CE approval electric apparatus
- Extra bulb, white/black base plate and rubber eye guards included
- Manufactured under ISO 9001 quality control standard
- Excellent 5 year factory warranty
Specifications
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port |
| Shipping Weight | 9 lbs |
| Head | 45 degree inclined binocular |

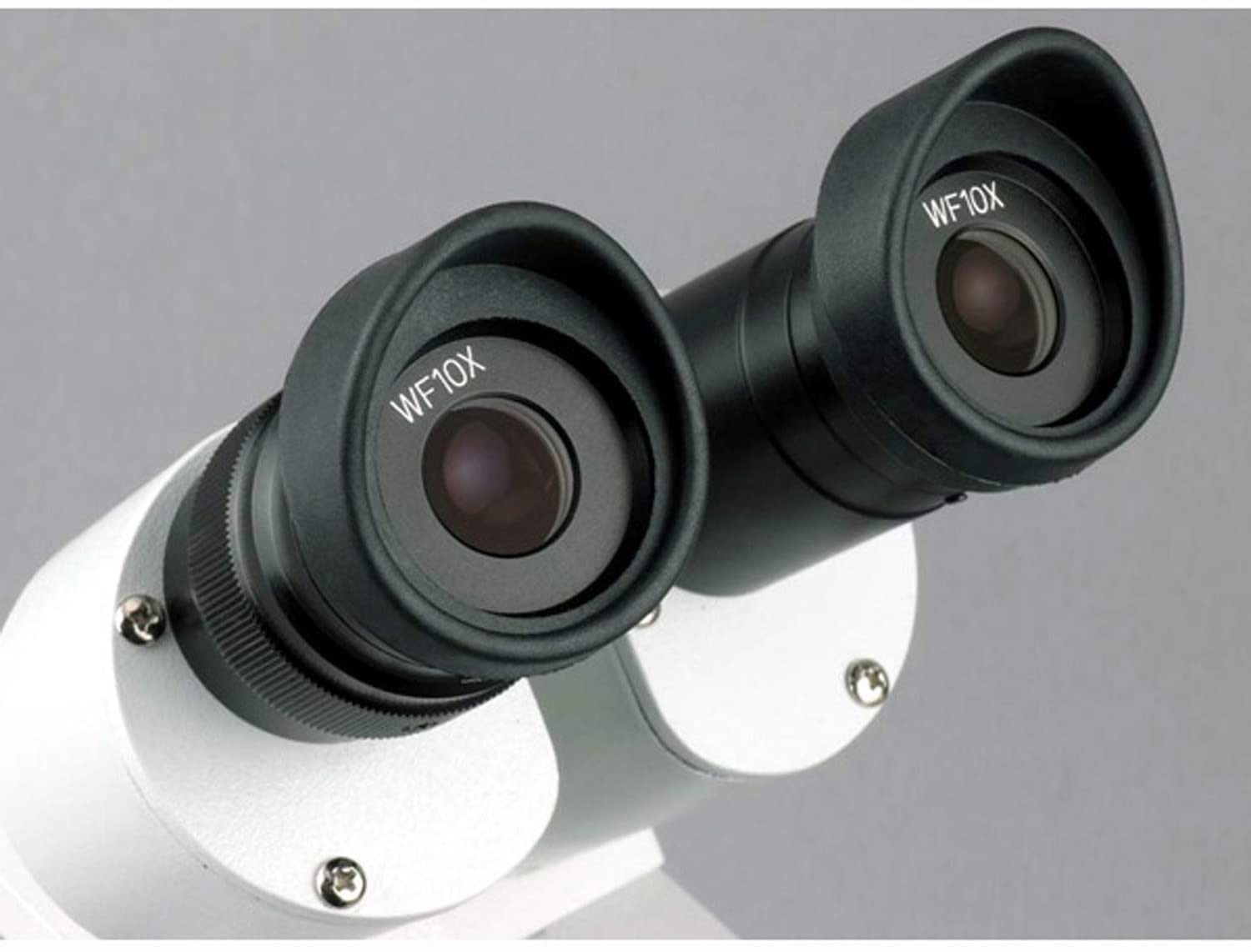

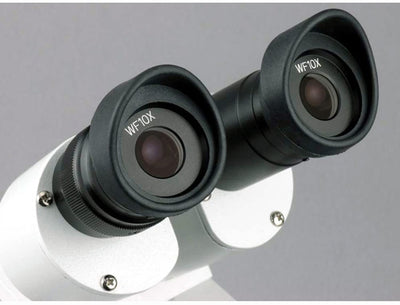

| Widefield Eyepieces | WF10X and WF20X |
| Objectives | 2X and 4X |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55 - 75mm) |
| Working Distance | 2 - 1/8" (53mm) |
| Frosted Glass Objective Plate | 3 - 3/4" (96mm) in diameter |
| White/Black Plastic Objective Plate | 3 - 3/4" (96mm) in diameter |
| Illumination | 12V/10W lamps |
| Accessories | A pair of eye caps, a pair of clips and a dust cover |
| Sensor | Aptina MT9T001 |
| Sensor Type | CMOS |
| Sensor Size | 6.55 x 4.92mm |
| Pixel Size | 3.2 |
| Resolution | 3.1MP |
| Frame Rate | 8 @ 2048 x 1536, 22 @ 1024 x 768, 43 @ 680 x 510 |
| Sensitivity | 1.0V/lux-sec |
| Compatibility | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |

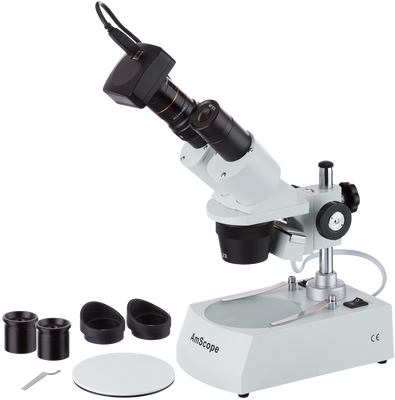

Package Contents
Binocular Microscope
Pair of 10X Widefield Eyepieces
Pair of 20X Widefield Eyepieces
3-3/4" (96mm) Frosted Glass Plate
3-3/4" (96mm) Plastic Plate
Wrench for Focusing Tension Adjustment
Pair of Eye guards
Pair of Clips
12V/10W Spare Bulb
Dust Cover

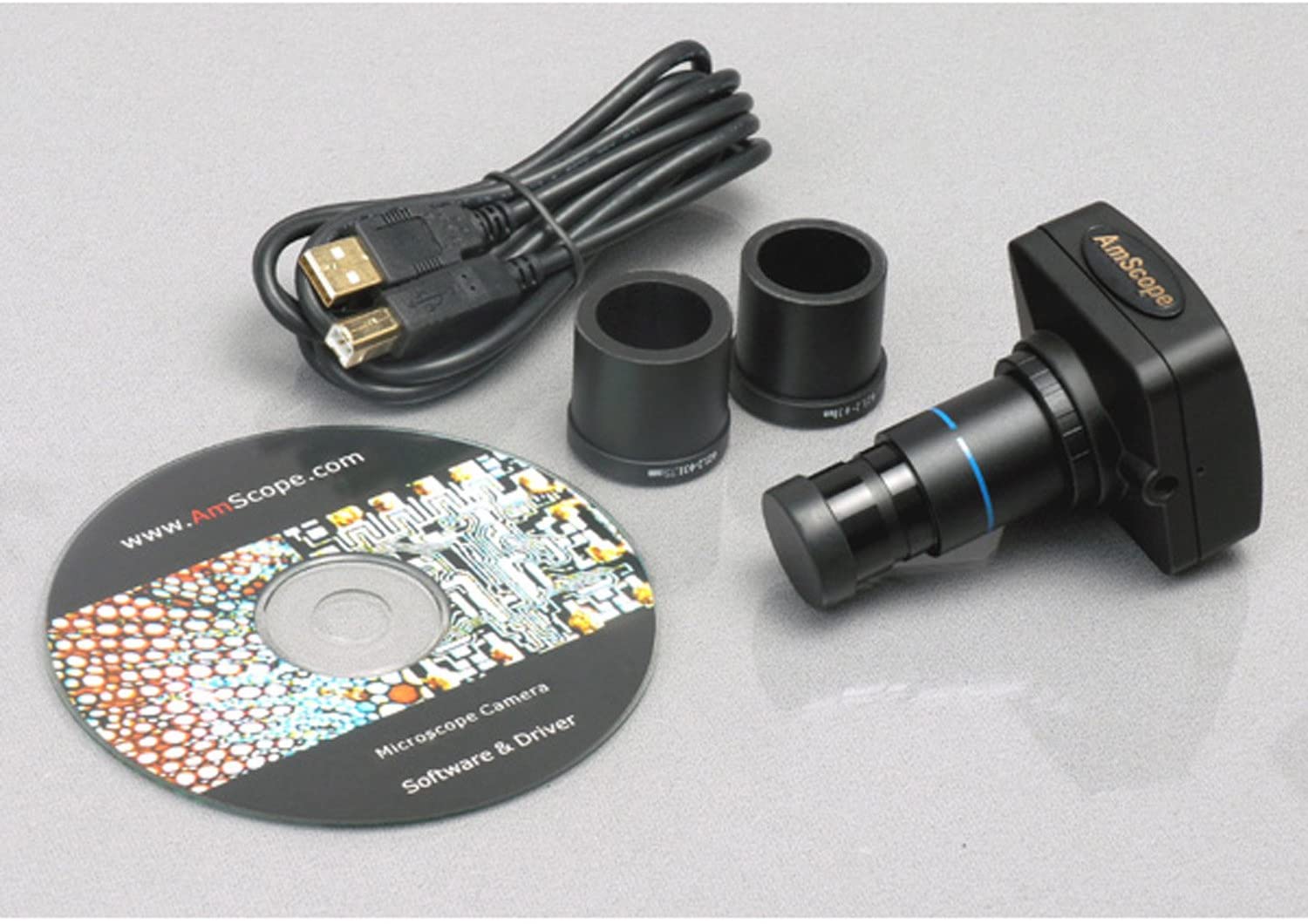

3MP USB Digital Camera with Reduction Lens
CD with Software, Driver and Users' Step-by-Step Instructions
USB Cable and One Mounting Adapter Included
User's Manual
Warranty
This product comes with a 5 year factory warranty.
