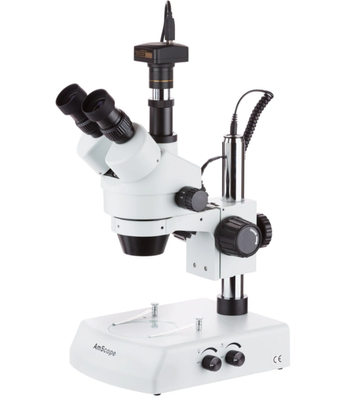

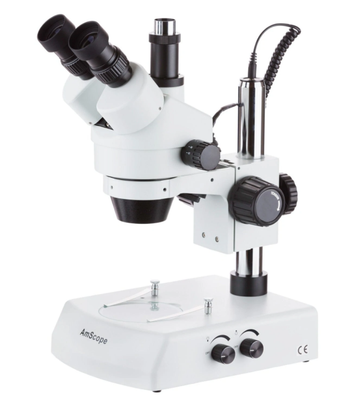

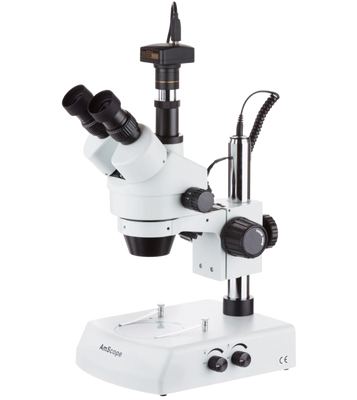

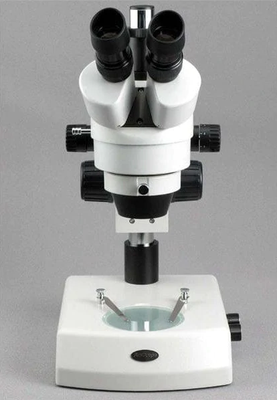

Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New

Manufacturer: AmScope

SKU: SM-2T-3M

  • Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New
  • Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New
  • Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New
  • Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New
  • Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New
  • Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New

QTY

$ 631.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE FOLLOWING CODE AT CHECKOUT FOR 2% OFF: amscope COPY

Ships in 1-2 business days

Extended Warranty

×

Factory Warranty

  • This product comes with a 5 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This product comes with a 5 year factory warranty.

$49.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$69.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$99.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

The SM-2T is a turnkey trinocular stereo microscope solution for biological and industrial fields. The dual illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs.



This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

5 year factory warranty

checkmark

Manufacturer direct shipping from CA

checkmark

Authorized AmScope dealer

Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New

Amscope SM-2T-3M 7X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights and 3MP Camera New

Features

  • The stereo optics provide clear, sharp images with excellent focus depth and a large working distance.
  • With 0.7X - 4.5X zoom objectives, moving through the magnification range is as easy as turning a knob.
  • 10X wide field eyepieces provide an ample magnification range from 7X to 45X, with high eyepoint optics to accommodate glasses or goggles.
  • Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity.
  • Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
  • The switched trinocular photo port provides a dedicated mount for a camera.
  • When the photo port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.
  • The dual illumination stand provides a turnkey solution for biological and industrial applications.
  • The pillar based support system offers flexibility with its ability to quickly adjust height and lateral position.
  • The microscope can be easily set and rotated in the mounting collar, and locked in place once adjusted.
  • Our professional software for Windows provides a wide assortment of capture and photo editing functions including color correction, time lapse capture, image stitching, and a full complement of measuring tools.
  • Overhead and substage halogen lighting allows you to work with opaque and translucent objects.
  • Large, symmetrical focus knobs provide the precision control needed, with adjustable tension for light or heavy loads as well as comfort.
  • The top light is mounted behind the head to provide offset light, and can be tilted for varied effect.
  • This is useful for topological examination, such as with circuit boards and biological cultures.
  • Thin tissue specimens, gemstones, and other translucent materials will benefit from the substage transmitted lighting.
  • A frosted glass stage plate is provided to diffuse the light for more even backlighting.
  • Monitor and capture photos and videos with the included 3.0MP USB2.0 camera.
  • The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer.
  • This ability to view microscopic images on your computer reduces eye strain.
  • Also allows groups of people to view images at the same time.
  • A 0.5X reduction lens is included to capture more of the microscope's field of view.
  • A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Specifications

Head Type Trinocular, 45° incline, 360° rotatable
Optical System Greenough stereoscopic
Interpupillary Adjustment Compensation free gemel, 54 - 76mm
Ocular port Diameter 30mm
Dioptric Adjustment Both oculars, ± 5dp
Eyepieces 10X
Photo Port Height adjustable 23mm tube, CX series
Objective Lenses 0.7X - 4.5X zoom
Objective Numerical Aperture 0.065 @ 4.5X0.02 @ 0.7X
Objective Resolution 195 lp/mm @ 4.5X60 lp/mm @ 0.7X
Native Field of View (10X Eyepieces) 4.4mm - 28.6mm
Native Working Distance 100mm
Auxiliary (Barlow) Lens 48mm thread
Stand Type Pillar stand with integrated top and bottom illumination
Focusing block Focus Range 50mm
Reflected Illumination 15W halogen
Transmitted Illumination 15W halogen
Stage Illumination Plate Diameter 95mm
Power 110VAC 60Hz
Sensor Type CMOS
Sensor Optical Format 1/2"
Active Pixels 3M (2048 x 1536)
Pixel Size 3.2µm x 3.2µm
Active Sensor Area 6.55mm x 4.92mm
Shutter Electronic rolling shutter
Sensitivity 1.0V/Lux-sec
Spectral Response 380 - 650nm with IR cut filter
Capture Resolution and Maximum Framerate 8fps @ 2048 x 153622fps @ 1024 x 76843fps @ 680 x 510
Connectivity USB 2.0
Lens-mount C-mount
Compensating Lens 0.5X
Power 5VDC over USB
OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 4GB RAM
Features Windows Version Live video preview, Captures still images and video, Time-lapse capture, Exposure and white-balance controls, Dark-field correction, Digital binning, Image processing, Measurement tools, including lines, arcs, polygons, Segmentation and counting tools, Image-stitching, extended depth-of-field, HDR, Fluorescence color-mapping
Features Mac/Linux Versions Live video preview, Captures still images and video, Exposure control, Color adjustment, Measurement tools, including lines, arcs, polygons

Package Contents

Trinocular stereo microscope head

Photo port

Pair of 10X eyepieces

Pair of eye guards

Pillar stand

Focusing block

Top light

Pair of stage clips

Glass stage plate

Black/White stage plate

Power cord

Two light bulbs

Hex wrench

Dust cover

C-mount USB camera

0.5X reduction lens

Two sizing adapters

USB Type B to USB type A cable

Software CD

User's Manual

Warranty
