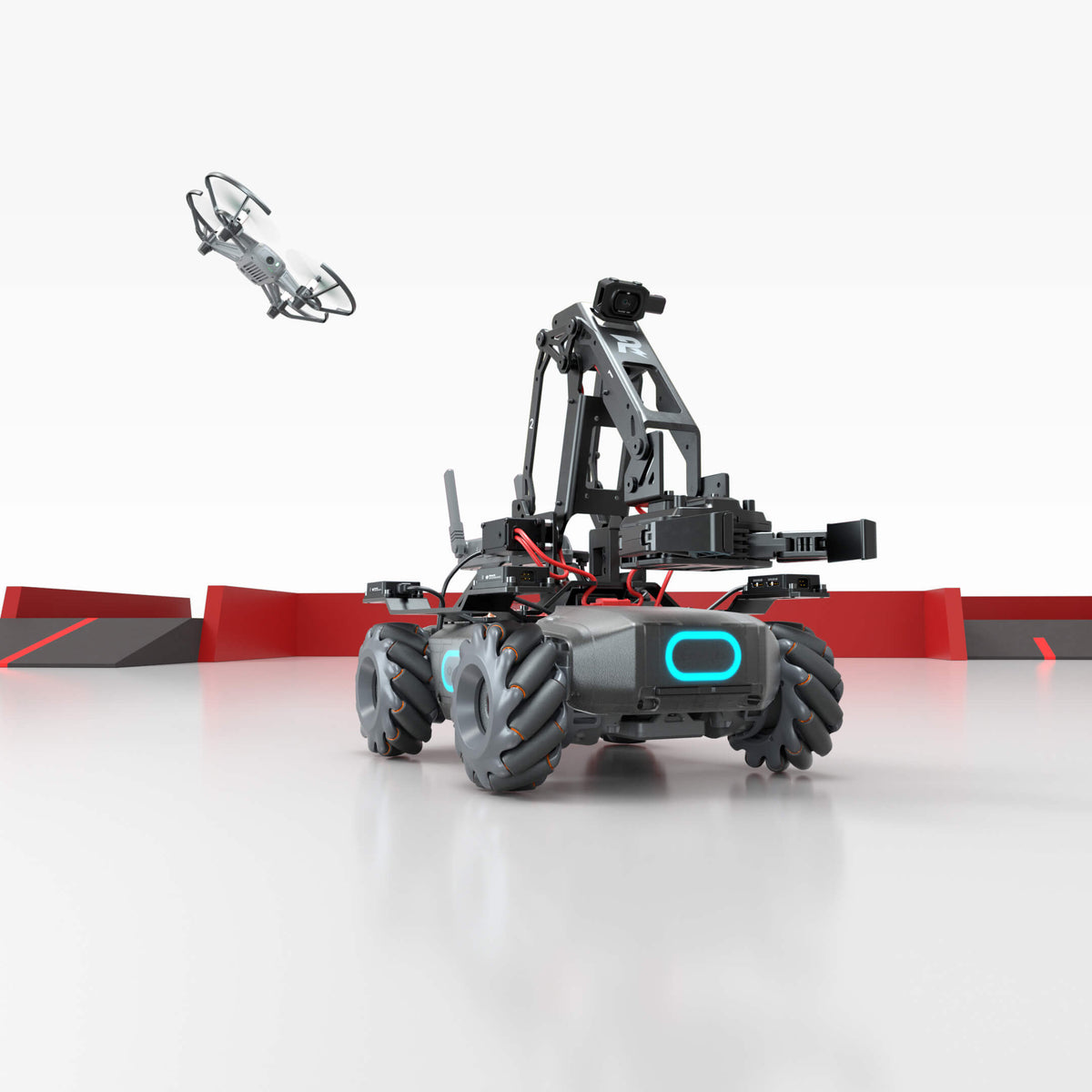

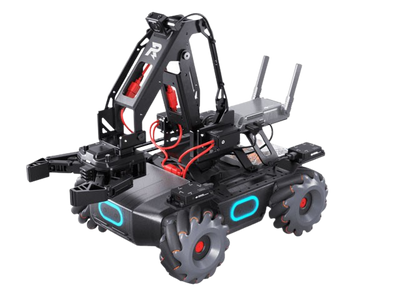

DJI RoboMaster EP Core Education Expansion Intelligent Robot New
Manufacturer: DJI
SKU: CP.RM.00000180.01
Share
Email
QTY
$ 889.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Manufacturer Direct
Product Overview
The RoboMaster EP Core was built to take learning to the next level. This advanced educational robot provides an all-in-one solution for STEAM-based classrooms everywhere, offering AI and programming projects for students of all ages and experience levels.
Brand new and manufacturer direct
1 year warranty
Ships from FL
Free shipping
Authorized DJI dealer
DJI RoboMaster EP Core Education Expansion Intelligent Robot New
Share
Email
Share
ShareFeatures
- Outstanding Teaching Tool- High-Performance Mechanical Accessories
Powerful Compatibility Features and Abilities Introduction to Real-World AI Implementation. - Teaching Resources- Project-Based Courses Suitable for Multiple Grade Levels
Aligns with Curriculum Standards. - Competition Database- Competition Rules and Operation Plans Customizable Competition Arrangements Practical Hands-On Learning.
- Unrivaled Tools for Teaching- The RoboMaster EP Core is an unrivaled educational tool with powerful mechanical accessories and unlimited expandability options.
- Cutting-Edge Equipment & Technology- Made of steel and finished with a sleek, futuristic design, the RoboMaster EP Core is fully equipped with cutting-edge technologies that provide consistent support for classroom learning.
- Robotic Arm- The EP Core’s Robotic Arm is incredibly durable, yet compact and flexible. It supports precise FPV control, allowing students to complete tasks even when the target objects are out of sight.

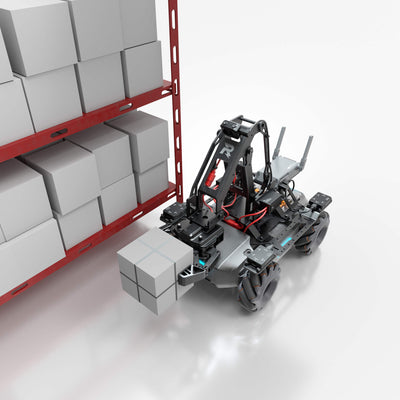

- Gripper- The Gripper transforms the EP Core into a powerful robot with multiple functions. A convenient structural design and adjustable gripping force empower it to firmly and reliably grasp and move objects of various shapes, weights, and sizes.
- Mecanum Wheels- The EP Core comes with four Mecanum wheels, each with 12 rollers that allow omnidirectional movement and precision control. Front axis suspension allows for added versatility during operation.
- High-Performance Servo- As a propulsion driver for the EP Core, the servo supports customized control abilities through the EP Core’s main control board. It ensures high control accuracy and large output torque. It can also power the Robotic Arm and allow students to build lifting structures using their knowledge of physics.
- Sensor Adaptor & Power Connector Module- Each sensor adaptor has two ports and provides power supply. A power connector module can connect and power third-party hardware, offering multiple ports to connect hardware and create custom programs and applications.
- Intelligent Controller- Using a powerful CPU, the Intelligent Controller can simultaneously support functions such as low-latency high-definition image transmission, AI computing, and programming development. It also coordinates transmission seamlessly to execute command signals.
- Infrared Distance Sensor- With a measurement range of 0.1-10 meters, the infrared distance sensor provides reliable distance measurement information. This enables the EP Core to sense its environment and avoid obstacles, deepening students’ understanding of advanced autonomous driving principles.
- High-Performance Motor- The EP Core comes with a customized motor that features an integrated FOC ESC with an output torque of up to 250 mN•m. Linear Hall-effect sensors with advanced algorithms allow closed-loop control for added precision. Additional safety mechanisms deliver outstanding stability.
- Add Hardware, Unlock Creativity- The versatility to accommodate third-party hardware provides unlimited options for learning and unlocks students’ potential and imagination.

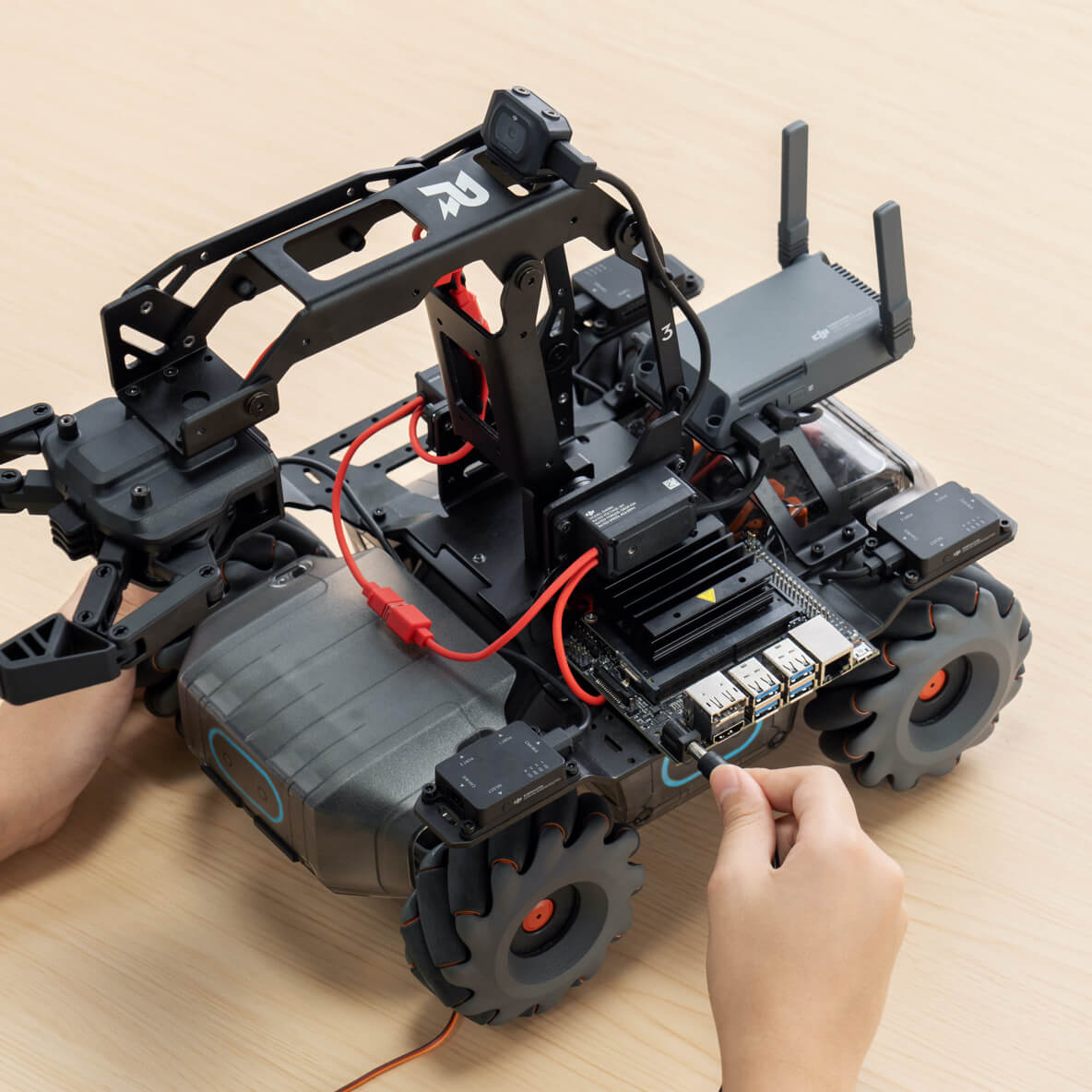

- Compatible with Third-Party Hardware- The RoboMaster EP Core supports third-party open-source hardware such as Micro:bit, Arduino, and Raspberry Pi. These items can be connected and powered via serial ports on the main controller of the chassis. The EP Core can also perform model training and scene recognition through AI platforms such as NVIDIA Jetson Nano and the official DJI SDK, enhancing students’ understandings of the operating principles of AI.
- Attitude Data- Code flexibly with attitude data collected from gyroscopes on the chassis.
- Increased Expandability- The versatility to accommodate third-party hardware such as building blocks and 3D printed objects provides unlimited options for learning and unlocks students’ potential and imagination.
- Compatible with Third-Party Sensors- The RoboMaster EP Core is equipped with four sensor adaptors, making it convenient to connect and power third-party sensors that measure inputs such as temperature, pressure, distance, and more. Sensory data can even be used in Scratch, unlocking endless programming possibilities.
- Real-World AI Implementation- Endless programming possibilities are unlocked when you use SDKs (software development kits). Open DJI SDK is available on the EP Core and supports more than 39 programmable sensor ports. This allows students to utilize streaming data from sensor modules, video, and audio to program AI applications and experience genuine AI technology.
- Video & Audio Streaming Data- HD video and audio streaming data and stabilized images bring higher recognition accuracy. In-depth learning projects and features such as data analysis, model training, scene recognition, and custom AI functions can be achieved with third-party platforms.
- Swarm- Connect multiple EP Cores to one computer to realize swarm movements through multi-machine communication.
- Goalkeeper- The EP Core transforms into a goalkeeper and is able to automatically identify a moving ball and respond with brilliant saves.
- Guide Bot- Use the TOF module and vision sensor to enable functions such as motion sensing, tracking, obstacle avoidance, and more.
- Fetch- The EP Core identifies and fetches objects for you.
- Software Programming Platform- With the dedicated RoboMaster app, multi-platform interactions and various operation methods for the EP Core are supported, along with rich educational resources and several competition modes.
- Scratch & Python Programming- The EP Core supports the Scratch and Python programming languages. This allows you to take your abilities to the next level, whether you are new to coding or are already on your way to becoming an expert.
- Low-latency HD FPV- Enjoy a unique and immersive driving experience with the EP Core's exhilarating FPV perspective, which allows students to complete tasks even when the target objects are out of sight.
- Customizable UI- Code virtual widgets with Python to design your own user interface and more.
- Resources- The EP Core comes with more than just a robot. DJI Education offers a custom curriculum, a competition database, and a variety of events to complete the classroom teaching and learning experience.
- Custom Learning Materials- Combining robotic theory with programming practice operations and tailored projects, the curriculum resources aim to drive students’ interests in engineering and cultivate their spirit of exploration. Lecture slides and lesson plans are provided to educators, worksheets and handouts are tailored for the students, and they all align with the most popular educational standards and are incredibly easy to follow, allowing smooth integration at multiple age and grade levels.
- Fun & Quick Competitions- The RoboMaster EP Core Competition Database offers easy-to-understand rules and instructions for a wide variety of competitions. This allows educators to get games up and running with your class quickly and efficiently, testing the learning outcomes in a fun and exciting way.
- Activities & Events- Together with our partners around the world, DJI hosts a series of activities for educators and students. From training workshops to educator communities, we have something for everyone in the STEAM education field.
Specifications
| Infrared Distance Sensor | |
| Detection Range | 0.1-10 m |
| FOV | 20° |
| Accuracy | 5% |
| Robotic Arm | |
| Movement Range | Horizontal |
| Number of Axes | 2 |
| Gripper | |
| Range | Approx. 10 cm |
| Servo | |
| Weight | Approx. 70 g |
| Body Dimensions | 44.2×22.6×28.6 mm |
| Transmission Ratio | 512 |
| Operation Modes | Angle mode, Speed mode |
| Sensor Adaptor | |
| Port Type | IO, AD |
| Number of Ports | 2 |
| Power Connector Module | |
| Communication Port | CAN bus |
| Output | USB Type-A power port |
| Input | TX30 power port |
| Camera | |
| FOV | 120° |
| Max Still Photo Resolution | 2560×1440 |
| Max Video Resolution | FHD |
| Max Video Bitrate | 16 Mbps |
| Photo Format | JPEG |
| Video Format | MP4 |
| Sensor | CMOS 1/4″; Effective pixels |
| Operating Temperature Range | -10 to 40 °C (14 to 104 °F) |
| Hit Detector | |
| Detection Requirements | For the Hit Detector to be activated, the following conditions must be met |
| Maximum Detection Frequency | 15 Hz |
| EP Core | |
| Weight | Approx. 3.3 kg |
| Dimensions | 320×240×270 mm (length × width × height) |
| Chassis Speed Range | 0-3.5 m/s (forward) 0-2.5 m/s (backward) 0-2.8 m/s (sideways) |
| Max Chassis Rotational Speed | 600°/s |
| M3508I Brushless Motor | |
| Max Rotational Speed | 1000 rpm |
| Max Torque | 0.25N·m |
| Max Output Power | 19 W |
| Operating Temperature Range | -10 to 40 °C (14 to 104 °F) |
| Driver | FOC |
| Control Method | Closed-loop speed control |
| Protection | Overvoltage protection Overtemperature protection Soft-start Short-circuit protection Chip and sensor anomaly detection |
| Intelligent Controller | |
| Latency | Connection via Wi-Fi |
| Live View Quality | 720p/30fps |
| Max Live View Bitrate | 6 Mbps |
| Operating Frequency | 2.4 GHz, 5.1 GHz, 5.8 GHz |
| Operating Mode | Connection via Wi-Fi, Connection via Router |
| Max Transmission Distance | Connection via Wi-Fi |
| Transmission Power (EIRP) | 2.400-2.4835 GHz FCC |
| Transmission Standard | IEEE802.11a/b/g/n |
| Intelligent Battery | |
| Capacity | 2400 mAh |
| Nominal Charging Voltage | 10.8 V |
| Maximum Charging Voltage | 12.6 V |
| Battery Type | LiPo 3S |
| Energy | 25.92 Wh |
| Weight | 169 g |
| Operating Temperature Range | -10 to 40 °C (14 to 104 °F) |
| Charging Temperature Range | 5 to 40 °C (41 to 104 °F) |
| Maximum Charging Power | 29 W |
| Battery Life in Use | 35 minutes (measured at a constant speed of 2 m/s on a flat surface) |
| Battery Life on Standby | Approx. 100 minutes |
| Charger | |
| Input | 100-240 V, 50-60Hz, 1A |
| Output | Port |
| Voltage | 12.6 VRated Voltage |
| App | |
| App | RoboMaster |
| iOS | iOS 10.0.2 or later |
| Android | Android 5.0 or later |
| Router | |
| Recommended Routers | TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China) TP-Link Archer C7; NETGEAR X6S (International) |
| Recommended outdoor power supply solution for routers | Laptop Power Bank (match the input power of the router) |
| microSD card | |
| Supported SD Cards | Supports microSD cards with a capacity up to 64GB |
| Notes | 1. Applies to surfaces with reflectivitiy ranging from 10% to 90%. 2. Measured in an interference-free and unobstructed enviroment with a distance of approximately one meter between the mobile device, the router, and the EP. The iOS device used was an iPhone X. The results of testing with different Android devices may be different. 3. Outdoor use of the 5.1 GHz and 5.8 GHz frequency bands is prohibited in some areas. Always follow all local laws and regulations in your country or region. 4. Measured in an interference-free and unobstructed environment. For Connection via Wi-Fi, the mobile device used for testing was a sixth-generation iPad (released in 2018). For Connection via Router, several router models were used for testing. FCC |
Package Contents
RoboMaster EP Core
User's Manual
Warranty
This product comes with a 1 year limited factory warranty.
