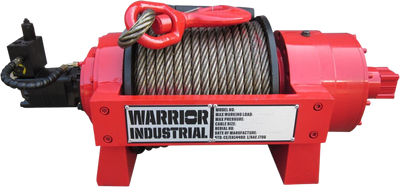

DK2 15TJP 33069 lbs. Capacity JP Series Industrial Hydraulic Winch New
Manufacturer: DK2
SKU: 15TJP
Share
Email
QTY
$ 13,999.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Special Order Item
(Check with us for processing time)
Exceptional Customer Service
Manufacturer Direct
Product Overview
Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for the toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Available from 10 tone to 40 tone. Manufactured to meet GLB82-86 National Military Standard.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Full float heavy duty planetary gearing
- Multi disc friction brake
- High torque industrial motor
- Air and manual clutch operation
- Heavy duty rope tensioner as standard
- Minimum 10:1 rope/drum ratio
- Balance valve as standard
Specifications
| RATED LINE PULL | 33069 LBS (15000 KG) |
| GEARING | 36 |
| BRAKING ACTION | AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH | 210 x 340mm (8.26 x 13.39") |
| CABLE - DIAMETER x LENGTH | 22mm x 50m (0.87" x 164') |
| DIMENSIONS | 1077 x 640 x 420mm (42.4 x 25.1 x 16.5") |
| MOUNTING PATTERN | 522mm x 180 / 280mm (20.5" x 7 / 11") |
| WEIGHT | 320 KG (705 LBS) |
| CERTIFICATION | CE CERTIFIED |
| MAX FLOW L/MIN | 110 L/MIN |
| BAR PRESSURE | 160 BAR |
Package Contents
Hydraulic Winch
Manual
Warranty
This item comes with a 1 year factory warranty.
