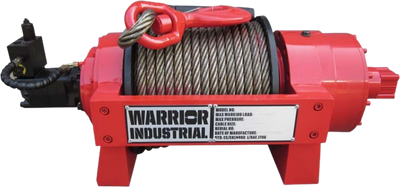

DK2 30TJP 66,138 lbs. Capacity JP Series Industrial Hydraulic Winch New

Manufacturer: DK2

SKU: 30TJP

  • Removebg upload test.
  • Removebg upload test.

QTY

$ 23,999.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

truck icon

Special Order Item

(Check with us for processing time)

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
vendor logo
divider
authorized dealer
checkmark

1 year factory warranty

checkmark

Ships directly from DK2 out of NV and OH

checkmark

Authorized DK2 dealer

DK2 30TJP 66,138 lbs. Capacity JP Series Industrial Hydraulic Winch New

DK2 30TJP 66,138 lbs. Capacity JP Series Industrial Hydraulic Winch New

Features

  • Full Float Heavy Duty Planetary Gearing
  • Heavy Duty Rope Tensioner as Standard
  • Multi Disc Friction Brake
  • Minimum 10:1 Rope/Drum Ratio
  • High Torque Industrial Motor
  • Balance Valve as Standard
  • Air and Manual Clutch Operation

Specifications

RATED LINE PULL66138 LBS (30000 KG)
BRAKING ACTIONAUTO HYDRAULIC
DRUM SIZE - DIAMETER x LENGTH280 x 360mm (11.02 x 14.17")
CABLE - DIAMETER x LENGTH32mm x 45m (1.26" x 148')
DIMENSIONS1301 x 770 x 545mm (51.22 x 30.31 x 21.46")
MOUNTING PATTERN610 x 170 / 310mm (24 x 6.7 / 12.2")
WEIGHT570 KG (1256.63 LBS)
CERTIFICATIONCE CERTIFIED
MAX FLOW L/MIN120
WORKING PRESSURE17 MPA
WORKING ARRESTER PRESSURELESS THAN 2.5 MPA

Package Contents

Hydraulic Winch

Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
