EMAX EI05V080I1 Industrial 80 Gal. 5 HP 1-Phase 2 Stage Inline Pressure Lubricated Pump Air Compressor New
Share
Product Overview

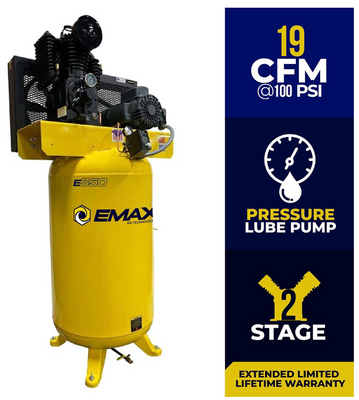

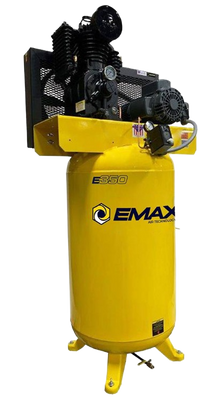

This EMAX EI05V080I1 5 HP 80 gal. Industrial Air Compressor is an Inline 2 stage, single-phase vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated 2-stage SOLID cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours.
This EMAX air compressor delivers 19 CFM at 100 PSI, Maximum PSI 175. The unit features industrial grade electric motor at 1750 maximum RPM and 24 running AMPS, magnetic starters, Condor pressure switch, Re-usable oil filter, manual ball valve tank drain, and powder coated ASME tank, rated at 200PSI in all 50 states.
5 year factory warranty
Brand new
Ships directly from EMAX out of OH
Authorized EMAX dealer
Features
- MADE IN USA
- Patented Pressure Lubricated 2-stage cast iron pump with dual-control design allows for automatic or continuous run rated at up to 70,000 hours based on required maintenance
- Industrial air compressor offers super quiet operation
- Solid cast iron crankcase ensures stable crankshaft alignment robust workload handling and oil sight glass (Not aluminum)
- Precision-balanced solid cast iron crankshaft with Timken-Style stainless-steel roller bearings for smooth and efficient operation with less drag and less energy use
- All steel connecting rods with replaceable rod bearing inserts
- Removable 100% Solid cast iron cylinders
- All cast iron cylinder heads for dependable operation
- Disc valve design intake and exhaust valves come out of the top of the cylinder head where they can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
- Precision ground pistons machined to tight tolerances ensures low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which will result in fewer loads on the electric motor
- Built-in head unloaders
- Built-in inter-cooler and after-coolers
- Certifications: ETL, UL, CSA, ASME-in all 50 states
- Eligible for EXTENDED lifetime warranty for required maintenance
- 1 Year Standard, 5 Year EXTENDED warranty available
- Maximum Pump RPM: 800, for extended life
- Running Amperage: 24
- Condor pressure switch
- Motor RPM: 1750
- Dimensions: 31 in. x 33 in. x 75 in. (LxWxH)
- Oil Pressure Gauge
- Re-usable oil filter
- 19 CFM @ 100 PSI
- Maximum PSI: 175
- MADE IN THE USA
- Weight: 576 lb.
- Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
Specifications
| Number of Wheels | 0 |
| Oil Free Compressor | No |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 75 in. |
| Product Length | 31 in. |
| Product Weight | 576 lb. |
| Product Width | 33 in. |
| Pump Life | 70,000 hr with required maintenance |
| Pump Material | 100% Solid Cast Iron |
| Pump Oil Capacity | 2.5 qt. |
| Regulator Included | No |
| Running Horsepower | 5 Horsepower |
| Stage Type | Two-Stage |
| Start Type | Electric |
| Tank Capacity | 80 gal. |
| Tank Fill Time | 4.5 min |
| Tank Orientation | Vertical |
| Tank Pressure Gauge | Yes |
| Voltage | 208/230 Volt |
| Air Delivery SCFM At 40 PSI | 26 |
| Air Delivery SCFM At 90 PSI | 21 |
| Airflow Volume | 19 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 24 running |
| Application/Use | Pneumatic air Power |
| Cartridge Size | 0 each |
| Color | Yellow |
| Compressor Type | Oil lubricated |
| Country of Origin | Made in USA |
| Drain System | Manual |
| Drive Type | Electric Motor |
| Engine Brand | N/A |
| Fuel Tank Capacity | 0 gal. |
| Handles Included | No |
| Hose Fitting Size | 3/4 in. |
| Hose Included | No |
| Low-Oil Shutdown | No |
| Lubrication Type | Oil |
| Maximum Operating Pressure | 175 PSI |
| Maximum RPM | 800 rpm |
| Motor Phase | Single |
| Nozzle Fitting Size | 3/4 in. |
| Number of Power Speeds | 1 |
Package Contents
EMAX Compressor
Owner's Manual
Warranty
This item comes with a 5 year factory warranty.
