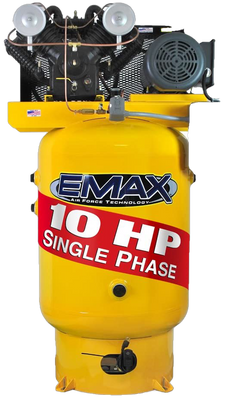

EMAX EP10V080V1 Industrial Plus 10 HP 1-Phase 80 gal. Vertical Electric Air Compressor w/ Pressure Lubricated Pump New

Manufacturer: EMAX

SKU: EP10V080V1

  • EMAX EP10V080V1 Industrial Plus 10 HP 1-Phase 80 gal. Vertical Electric Air Compressor w/ Pressure Lubricated Pump New
  • EMAX EP10V080V1 Industrial Plus 10 HP 1-Phase 80 gal. Vertical Electric Air Compressor w/ Pressure Lubricated Pump New

QTY

$ 3,599.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

This Industrial Plus 10 HP 2 Stage V4 1 Phase Vertical 80 Gallon Piston Air Compressor is designed for up to 50,000 hours of commercial or industrial use with proper maintenance. This unit features our low RPM pumps and delivers 38 CFM @ 100 PSI. Our unit features automatic or continuous run functionality and is SUPER COOL & SUPER QUIET! At the core of our Emax compressors is our pump. These pumps are SUPER quiet in operation and built to last! We start with a solid cast iron crankcase. Unlike some competitor’s aluminum body crankcases – our solid cast iron crankcase will ensure stable crankshaft alignment and will handle more work load under heavy load conditions.

vendor logo
divider
authorized dealer
checkmark

5 year factory warranty

checkmark

Brand new

checkmark

Ships directly from EMAX out of OH

checkmark

Authorized EMAX dealer

EMAX EP10V080V1 Industrial Plus 10 HP 1-Phase 80 gal. Vertical Electric Air Compressor w/ Pressure Lubricated Pump New

EMAX EP10V080V1 Industrial Plus 10 HP 1-Phase 80 gal. Vertical Electric Air Compressor w/ Pressure Lubricated Pump New

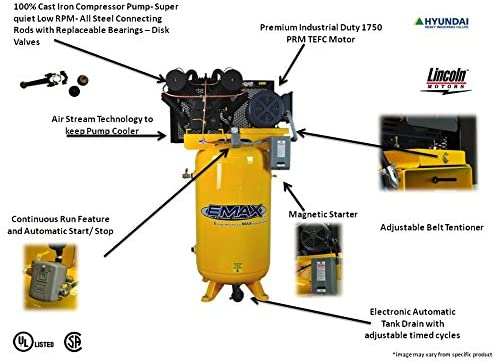

Features

  • Patented Pressure Lubricated Pump
  • Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
  • Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
  • Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance

Specifications

CFM @ 100 PSI38
Compressor StageTwo
Pump RPM800
Pump MaterialSolid Cast Iron
Pump ModelAPP4V1043TP
Dimensions LxWxH28" X 42" X 83"
Product Weight752
Motor RPM1750
Motor PhaseSingle
Voltage available230
Tank Size80 Gallon
Tank orientationVertical
Tank Outlet Size3/4"
Tank Drain TimedAutomatic
CertificationsUL,CSA, ASME,ETL
Noise Rating(DBA) 78
Warranty1 Year Standard, 5 Year Extended, Lifetime Extended
Running AMP40
Recommended Breaker60 AMP
Max PSI175
Oil Capacity2.5 quarts
Drive TypeBelt Driven
Tank Size80 Gallon

Package Contents

EMAX Compressor

Owner's Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 year factory warranty.
