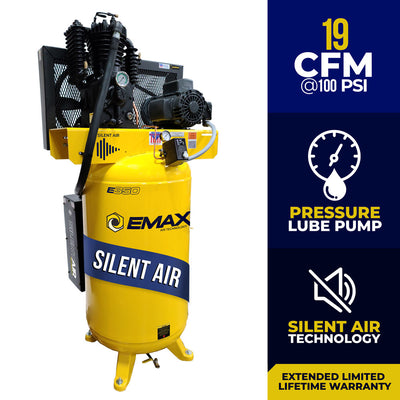

EMAX ES05V080I1 Industrial Series 80 Gal. 5 HP 1-Phase Silent Air Electric Air Compressor New
  Share
X

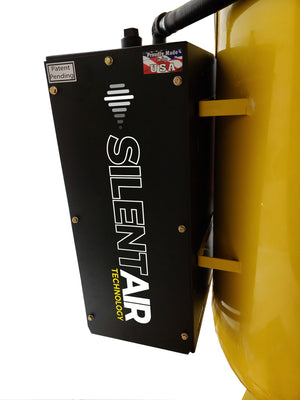

EMAX Compressor Tools and Equipment deliver overwhelming performance to ensure that they meet the needs of even the most demanding environments. All products are designed with exacting tolerance and specifications to deliver all the power that is needed at the Jobsite, Garage or Shop for extreme performance. All EMAX piston pumps deliver big air and include steel connecting rods and removable disc valves. Air Stream Technology insures you will have the coolest, quietest air compressor in the industry. It includes an air compressor silencer that is designed to suppress operating noise level and also acts as a filtration system to prevent foreign matter from entering the intake. The EMAX Silent Air Industrial Air Compressor offers super-quiet low RPM with solid cast iron construction for extended life.

Overview (Right Column)
5 year factory warranty
Brand new
Ships directly from EMAX out of OH
Authorized EMAX dealer

 Outlets
Features (Left Column)

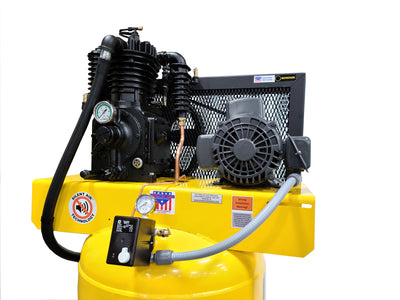

  • Piston series 2-stage cast iron pump, rated at up to 50000 hours based on B-10 bearing life rating
  • Ram-tek solid steel, heavy gauge rods are built for maximum performance and durability
  • Flow tek concentric disc valves deliver maximum performance and longevity
  • Cool-Tek - the coolest running compressors in the industry with air stream technology provides 35% lower operating temperature reducing moisture build up and extends pump life
Features (Right Column)
  • Premium 5 layer filtration system prevents foreign matter from entering intake and extends pump life
  • 5 HP industrial grade motor with low 1750 RPM design extends useful life
  • Gate valve oil drain provides quick, clean oil changes
  • 17 SCFM
Product Specifications (Left Column)
  • CFM @ 100 PSI: 19
  • Compressor Stage: Two
  • Pump Material: Solid Cast Iron
  • Dimensions LxWxH: 34" X 24" X 80"
  • Product Weight: 840
  • Motor HP: 5
  • Motor Phase: Single
  • Voltage available: 230
  • Tank Size: 80 Gallon
  • Tank orientation: Vertical
  • Tank Outlet Size: 3/4"
  • Tank Drain Timed: Automatic
  • Certifications: UL,CSA, ASME,ETL
  • Noise Rating: (DBA) 68
  • Running AMP: 24
  • Recommended Breaker: 40 AMP
  • Max PSI: 175
  • Drive Type: Belt Driven
  • Tank Size: 80 Gallon
Product Specifications (Right Column)

Package Contents:

  • EMAX Compressor
  • Owner's Manual
WARRANTY

This item comes with a 5 year factory warranty.

Manuals & Documentation

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul Osborne
Great heavy duty compressor

I got this compressor to run a Haas CNC mill in my garage. Since it is an attached garage, noise level was my biggest concern when purchasing. It is much quieter than any other large piston compressor I have ever used. Even when standing right next to it, you can hold up a conversation without having to shout at the other person. From the other side of the garage, it's even better. With a wall in the way, my wife thought it was the washing machine when she finally heard it.

I've only had my unit for a couple weeks, but the build quality seems excellent and it works as it should. Very low vibration, once it was on the isolators and bolted down I could not feel it at all. My only complaint was there was very little space for wiring inside the plastic box for the plug. Easy 5 star.
