EMAX ESP07V080V1PK Industrial 80 Gal. 7.5 HP 30 CFM Air Dryer 1-Phase 2 Stage V4 Pressure Lubricated Pump Silent Air Compressor New

Manufacturer: EMAX

SKU: ESP07V080V1PK

5
EMAX ESP07V080V1PK Industrial 80 Gal. 7.5 HP 30 CFM Air Dryer 1-Phase 2 Stage V4 Pressure Lubricated Pump Silent Air Compressor New


5
EMAX ESP07V080V1PK Industrial 80 Gal. 7.5 HP 30 CFM Air Dryer 1-Phase 2 Stage V4 Pressure Lubricated Pump Silent Air Compressor New

QTY

$ 5,362.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

truck icon

Free Freight Shipping With Liftgate

Please allow (est) 2-4 weeks to build

Extended Warranty

×

Factory Warranty

  • This item comes with a 5 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 5 year factory warranty.

$399.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$499.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$599.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

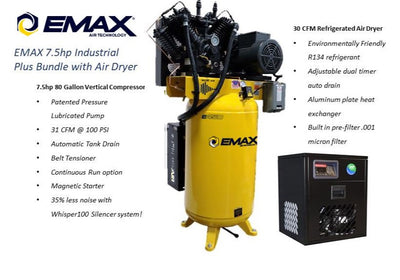

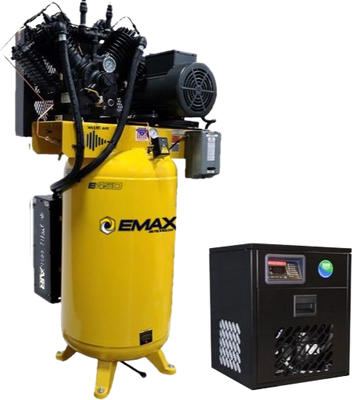

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 1Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM @ 100 PSI, top PSI of 175.



This unit features our patented Silent Air SILENCER system is already installed. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless.

vendor logo
divider
authorized dealer
checkmark

5 year factory warranty

checkmark

Brand new

checkmark

Ships directly from EMAX out of OH

checkmark

Authorized EMAX dealer

EMAX ESP07V080V1PK Industrial 80 Gal. 7.5 HP 30 CFM Air Dryer 1-Phase 2 Stage V4 Pressure Lubricated Pump Silent Air Compressor New

EMAX ESP07V080V1PK Industrial 80 Gal. 7.5 HP 30 CFM Air Dryer 1-Phase 2 Stage V4 Pressure Lubricated Pump Silent Air Compressor New

Features

  • MADE IN USA
  • 30CFM energy efficient refrigerated air dryer
  • Air Dryer filters air solid particles down to 0.01 microns
  • Air compressor 31CFM @100PSI
  • Maximum PSI: 175
  • AIRBASE Pressure lubricated SOLID cast iron Pump: Model APP4V1043TP
  • Patented Pressure lubricated Solid Cast iron Pump RPM: 640
  • Pump Oil Capacity: 2.5 qt.
  • Single Phase 208/230 volt
  • Running AMP: 32 AMP
  • Tank Outlet Size: 3/4 in.
  • Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
  • 80 gal. vertical, ASME Certified UV, rust resistant, Powder coated, Max 200PSI Air Tank Approved for ALL 50 states
  • Air stream Technology
  • Heavy duty Industrial 1750 RPM (not 3450 RPM) Name Brand Motor UL & CSA
  • 1 Year Standard, 5 Year Extended, eligible for Lifetime Warranty
  • Certifications: ETL, UL,CSA, ASME
  • Air compressor Dimensions: 28 x 42 x 72 in. (LxWxH)
  • Product weight: 701 lb.
  • Patented SILENT AIR silencer system
  • Dual control design pump allows for automatic or continuous run rated at up to 70,000 hours
  • Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
  • Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
  • Built in Inner-cooler and After cooler
  • Gate valve oil drain provides quick, clean oil changes
  • Pump oil level site glass
  • EMAX Refrigerated air dryer. Model #EDRCF1150030
  • Air dryer: Keeps Water, Oil, And Dirt Out of Your Compressed Air
  • Air dryer: Less corrosion of pipes and tools means less downtime
  • Dryer: Avoid splotches & stains on your projects with proper filtration
  • Dryer: Energy Efficient Aluminum Refrigerated Air Cooling System
  • Dryer: Rust Free, Stainless Steel Heat Exchanger
  • Dryer: Maximum heat transfer, maximum dryer life & less maintenance
  • Dryer: Refrigerated Air Inlet Inner Cooler
  • Dryer: Provides trouble free operation for high temp cooling
  • Dryer: Uses environmentally safe 134A refrigerant to prevent damage to the ozone layer
  • Dryer dims: 16 x 18 x 24 in. (LxWxH)
  • Dryer weight: 110 lb.
  • Includes: auto drain, Built in Coalescing Filter
  • Dryer: 1 Year Standard, 3 Year extended
  • Dryer Dew point: 37-50 degrees
  • Dryer pipe size: 1/2 in. NPT
  • Dryer Max rated inlet temp: 140 degrees
  • Dryer Max Ambient temp: 122 degrees
  • Dryer full load amps: 3.92 amps
  • Dryer Amp draw: 6 amps
  • Dryer: 1 phase, 60 Hz, 115 volt, 30CFM dryer,
  • Dryer: Refrigerant amount = 11 oz.

Specifications

Product Height Compressor
Product Length Compressor
Product Weight Compressor
Product Width Compressor
Pump Life 70,000 hr.
Pump Material SOLID cast iron
Pump Oil Capacity 2.5 qt.
Regulator Included No
Running Horsepower 7 HP
Stage Type Two-Stage
Start Type Electric
Tank Capacity 80 gal.
Tank Fill Time 10 min
Tank Orientation Vertical
Tank Pressure Gauge Yes
Voltage 208/230 Volt
Airflow Volume 30 CFM
Air Outlet Size 34 in.
Amperage 32 running amps
Application/Use Pneumatic air power
Color Yellow
Compressor Operation Dual control
Compressor Type Oil lubricated
Country of Origin Made in USA
Drain System Auto Tank drain
Drive Type Belt Drive
Fuel Tank Capacity 0 gal.
Low-Oil Shutdown No
Lubrication Type Oil
Maximum Operating Pressure 175 PSI
Maximum RPM 1,750 RPM Motor
Motor Phase Single
Number of Power Speeds one
Number of Wheels 0
Oil Free Compressor No
Portable or Stationary Stationary
Power Type Electric

Package Contents

208V/230V 32 Amp 1 Phase 80 gal Corded Air Compressor

115V 4 Amp Corded Refrigerated Air Dryer

Owner's Manual

Warranty
