Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New

Manufacturer: Fuelworks

SKU: 10304010A

Removebg upload test.
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Removebg upload test.
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New
Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New

QTY

(888) 999-1522

$ 109.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Fuelworks 12V 10 GPM 3/4

Fuelworks 12V 10 GPM 3/4" NPT Diesel Fuel Transfer Pump Kit New

Product Overview

This pump is built of a very strong and durable heavy duty shroud to protect the pump during transit. This pump is great for on the go fuel transfers (DIESEL FUEL ONLY).

vendor logo
divider
authorized dealer
checkmark

1 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Fuelworks out of CA

checkmark

Authorized Fuelworks dealer

Features

  • PUMP SPECS This Portable Fuel Pump Kit has a Self-Priming DC 12V 220W 24A motor with a flow rate of 10GPM / 40LPM and 3/4” inch NPT Inlet/Outlets, the Suction/Delivery Hose has a Max pressure of 300PSI/20BAR (cut the hose to customize as need)

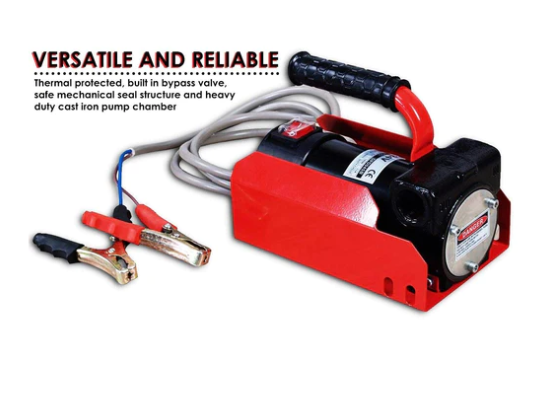

  • UNIQUE FEATURES The pump is thermal protected and operable in temperature ranges of -4°F to 140°F (-20°C to 60°C); included: Red/Black Alligator Clamp Connections, 13' feet (4m) Nitrile Rubber Suction/Delivery Hose with Filter and Aluminum Manual Nozzle
  • COMPACT DESIGN The small size, reliable and simple installation of the pump, hose and nozzle are all designed to be portable with an ergonomic grip handle to assist; the whole kit is compact enough for efficient storage
  • SAFETY and PROPER USE We recommend to always wear eye and hand protection during operation; This pump is designed for (DIESEL FUEL ONLY)(DO NOT USE FOR GASOLINE); This product is ideal for trucks, boats, agricultural and emergency back-up applications

Specifications

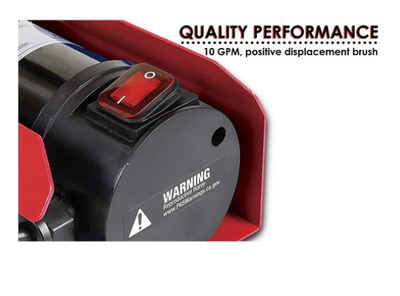

Motor / Flow Rate Positive Displacement Brush / 10GPM / 40LPM
Pump Max Pressure 14.5PSI / 1BAR
Current Flow / Voltage / Power (Wattage) / Current (Amperage) / Hertz (Hz) DC 12V 220W 24A
Number of Poles / Torque / Resistance (Ohms) 2 Poles / 584Nm / 0.6Ω
Inlet / Outlet 3/4"
Rotations Per Minute (RPM) / Synchronous Speed 3800 RPM / 3600
Temperature Min -20°C Max +60°C (-4°F /max 140°F)
Noise Level 70dB_ @ 1 meter
Recommended Duty Cycle 30 minutes intervals

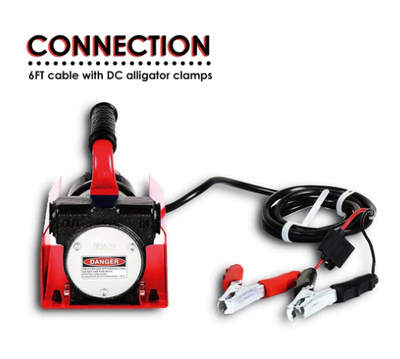

Connection 2 M/ 6.5 ft. cable with DC Alligator Clamps
Suction Height 2 M/ 6.5 ft.

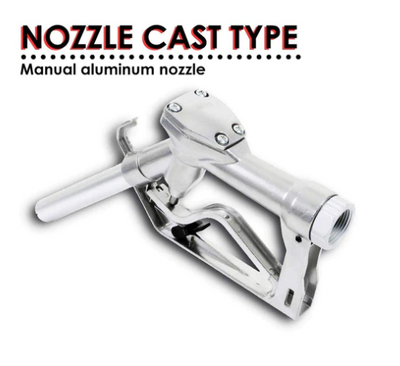

Nozzle Cast Type / Model / Inlet Aluminum / Manual / 3/4"

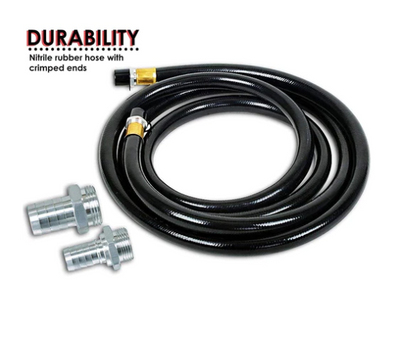

Hose I.D. / Length, Type / Max Pressure 3/4" / 13 ft.(4m) Nitrile Rubber Hose w/ crimped ends / 300PSI / 20BAR

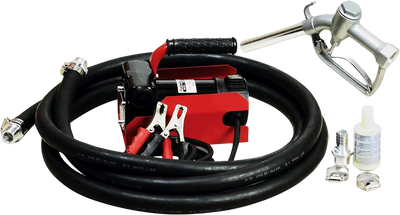

Package Contents

Diesel Fuel Transfer Pump Kit

Instruction Manual

Warranty

vendor logo
divider
authorized dealer

Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
