Renogy RNG-175D-US 175 Watt Monocrystalline Solar Panel New
Manufacturer: Renogy
SKU: RNG-175D-US
Share
Email
QTY
$ 259.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This product comes with a 5 year material and workmanship warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 5 year material and workmanship warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview

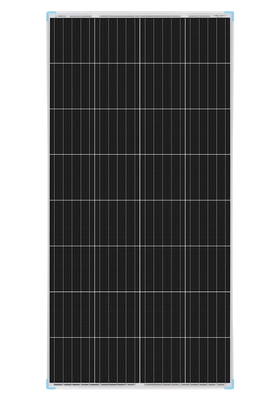

The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel is a key component to any solar power (PV) system. Whether you take it camping in the mountains or for a trip to the beach, this off-grid panel can be a great start or addition to any Renogy off-grid system. Each Renogy 175W Monocrystalline Solar Panel is capable of withstanding heavy snow and strong wind loads.
5 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features

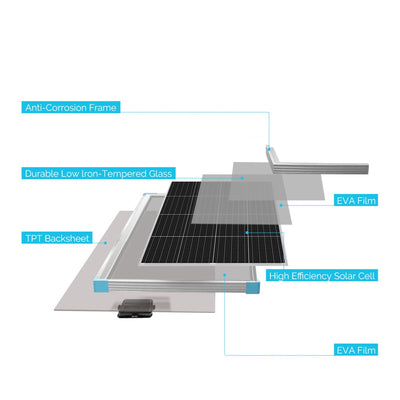

- Multi-layered sheet laminations enhance cell performance and ensure a long service life
- EL tested solar modules; no hot-spot heating guaranteed

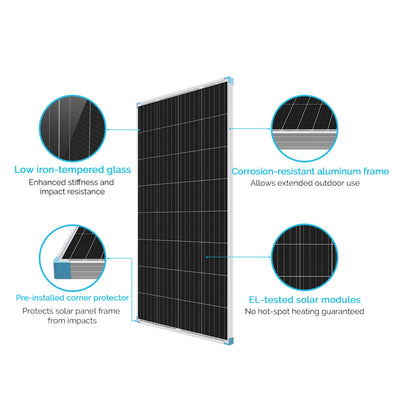

- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- TPT back sheet dissipates heat to ensure smooth performance over a long period of time
- Pre-installed corner protector protects you from accidental cuts from the sharp corners and protects solar panel frame from impacts
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)

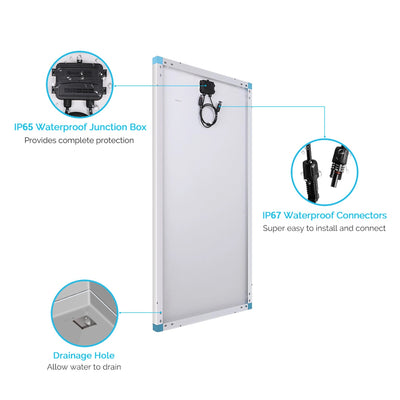

- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
- Bypass diodes minimize power drops caused by shade and ensure excellent performance in low-light environments
- A corrosion-resistant aluminum frame allows for extended outdoor use with a typical lifespan of decades
- Can be used for many different applications also ground mount compatible

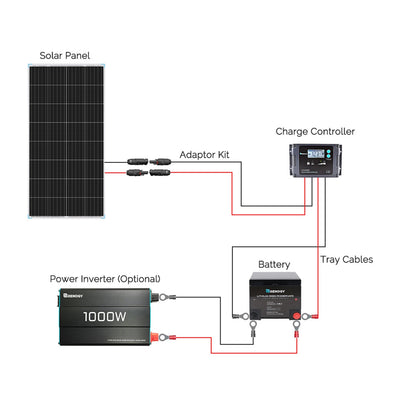

- Compatible with on-grid and off-grid inverters
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Pre-drilled holes are included for grounding
- Compatible with a variety of Renogy mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts
Specifications
| Max Power at STC | 175W |
| Open Circuit Voltage | 21.6V |
| Short Circuit Current | 10.62A |
| Optimum Operating Voltage | 18V |
| Optimum Operating Current | 9.73A |
| Operating Temperature | -40°F to 176°F (-40°C to 80°C) |
| Maximum System Voltage | 600VDC UL |
| Maximum Series Fuse Rating | 15A |
| Cables | 12 AWG 2.3ft long |

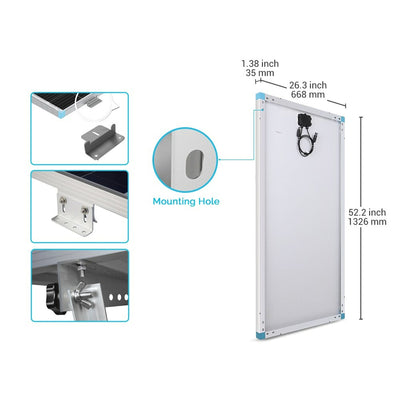

| Dimensions | 52.3 x 26.4 x 1.38 in (1328*670*35mm) |
| Weight | 20.9 lbs (9.5Kg) |
| Solar Cells | 32 Monocrystalline Cells |
| Junction Box | IP65 |
| Connectors | Solar Connectors |
| Module Efficiency | 19.80% |
Package Contents
Monocrystalline Solar Panel
User Manual
Warranty
This product comes with a 5 year material and workmanship warranty.
