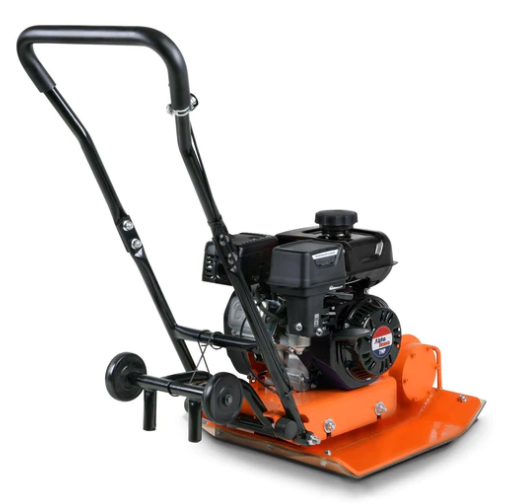

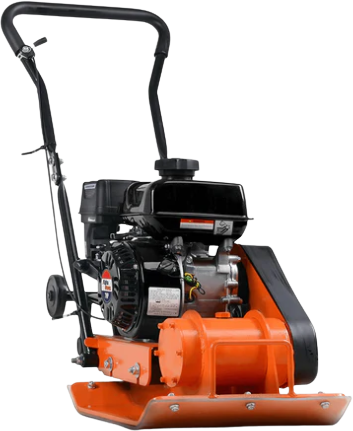

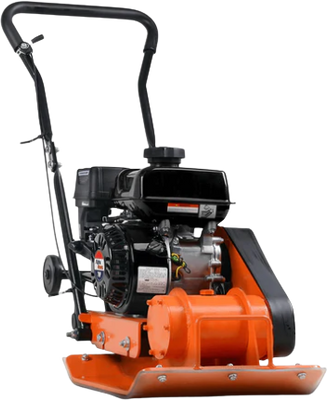

Super Handy GUO039 7HP 4200 lb. Compact Force 20" x 15" Plate Compactor New
Share
Product Overview
Our Plate Compactors have specially designed shock absorption systems, resulting in minuscule vibration transfer to the single lever direction control providing easy handling, increased operator comfort and reduced fatigue. Great for Outdoor and Concrete projects: lawn/garden, sand, walkways, patios, paver installations or asphalting projects. Great Mobility on surfaces in narrow confined areas. Dimensions: 26" x 18.5" x 22". Storage with the Collapsible Folding Handle.
1 year factory warranty
Brand new in box
Ships directly from Super Handy out of CA
Authorized Super Handy dealer
Features

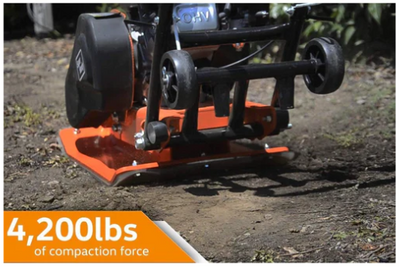

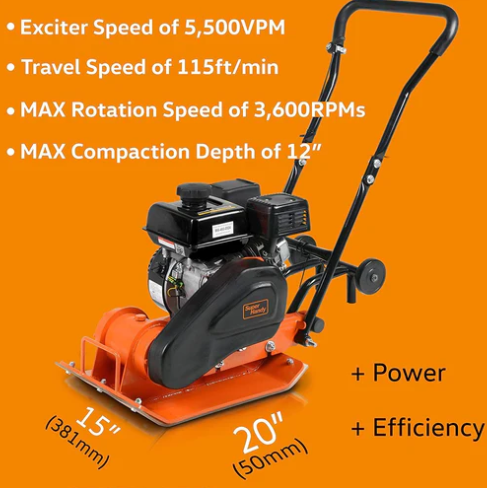

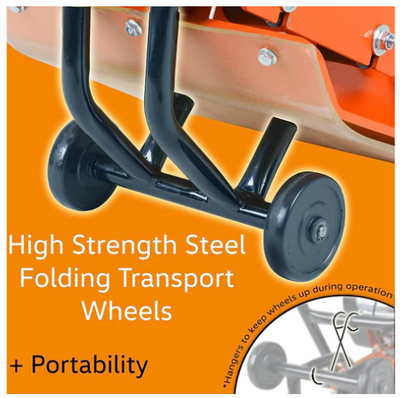

- PROFESSIONAL SPECIFICATIONS - This Force Compaction Plate Compactor has a powerful Alpha Works 7Hp 4 Stroke Single Cylinder OHV Gas Engine. Performing at a Max Output Power of 5kW, Exciter Speed of 5500VPM, Travel Speed 115FT/min, a High Max Rotation Speed of 3600RPMs granting a Compaction Force of 4200-Pounds (19Kn burst high impact force). With a Max Compaction Depth of 12", with a Heavy Duty Industrial size 20” (508mm) x 15" (381mm) Steel Compacting Plate, includes folding wheels.

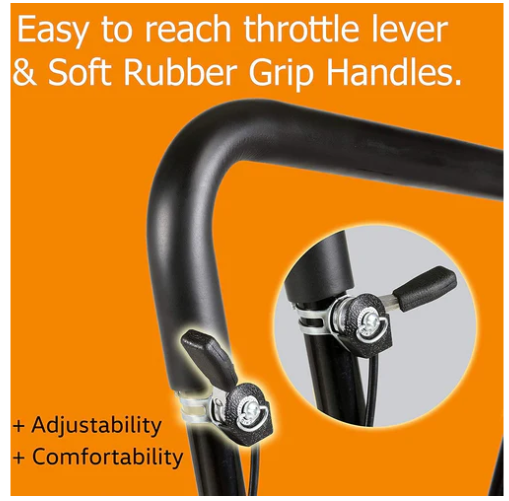

- EFFICIENT and MANEUVERABLE - Our Plate Compactors have specially designed shock absorption systems, resulting in minuscule vibration transfer to the single lever direction control providing easy handling, increased operator comfort and reduced fatigue. Great for Outdoor and Concrete projects: lawn/garden, sand, walkways, patios, paver installations or asphalting projects. Great Mobility on surfaces in narrow confined areas. Dimensions: 26" x 18.5" x 22". Storage with the Collapsible Folding Handle.
- SAFETY and PROPER USE - The engine is designed to ensure the operator's safety. Always operate machine according to directions in the user manual, always wear the appropriate ANSI standard hand and eye protection (ENGINE OIL NOT INCLUDED, MUST ADD UPON UN-BOXING). The engine runs on Unleaded 87+ octane Gasoline (10%< less ETHANOL recommended) and a Max capacity of 0.7 gallons. ONLY use this Plate Compactor for approved applications. Our Compactors are EPA Certified/CARB Compliant.
Specifications
| Plate Size | 20"×15" |
| Centrifugal Force | 4200 lb. |
| Exciter Speed | 5500 vpm |
| Compaction Depth | 12" |
| Travel Speed | 115 FT/min |
| Engine | 209cc |
| Operation Weight | 135lb |
Package Contents
Plate Compactor
Instruction Manual
Warranty
Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
