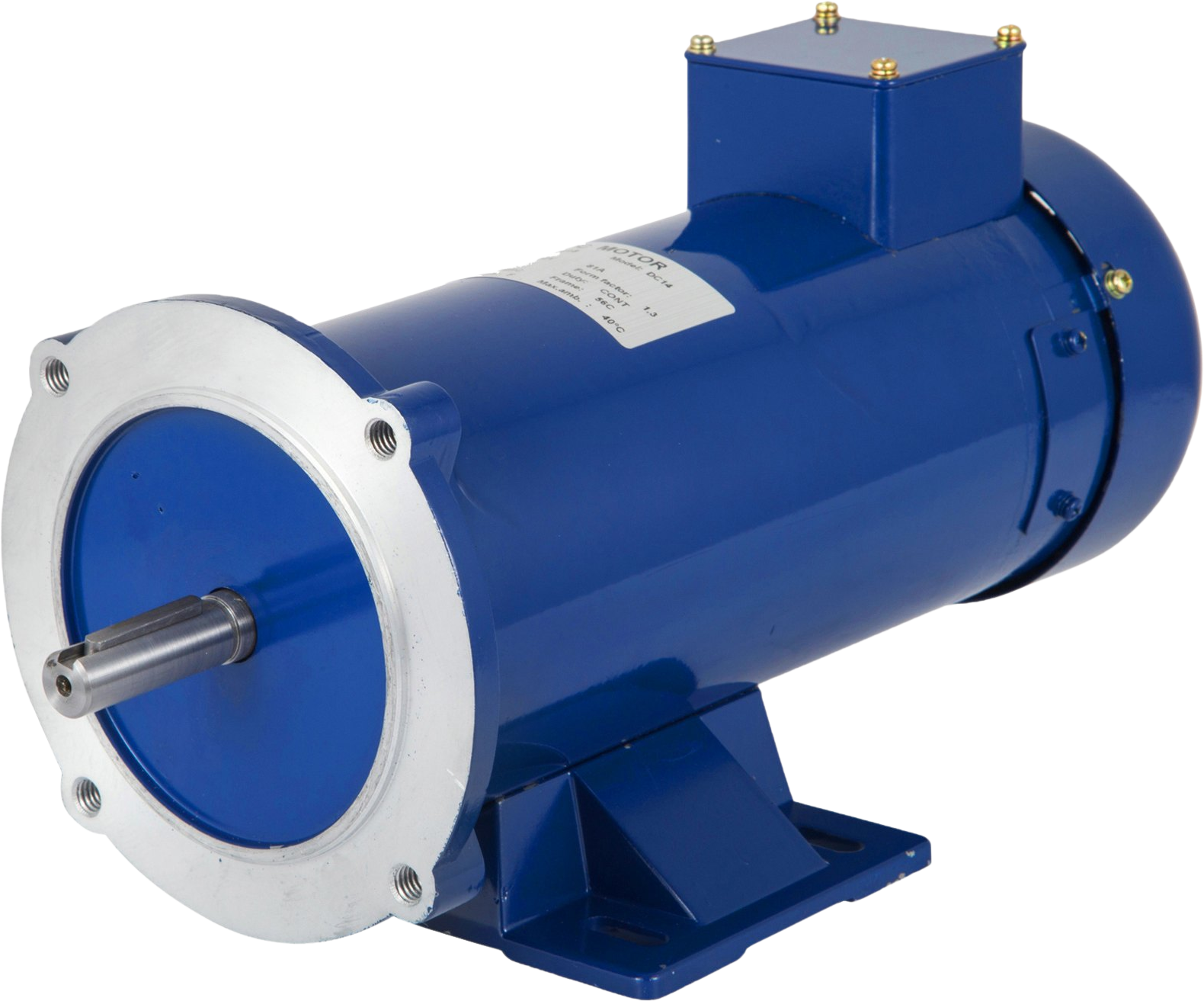

Vevor DC Motor 1HP Rated Speed 1750 RPM 12V Permanent Magnet Motor New
Product Overview
This DC motor features 100% pure copper core for high conductivity and high-temperature resistance. 1750 RPM rated speed, and 2050 RPM no-load speed is stable and highly efficient. The electric DC motor has 12V voltage, 1 HP output power for operating smoothly and saving energy. The permanent magnet motor is suitable for light and chemical industry, extrusion machinery. You can use it to achieve food processing functions, wire drawing, printing, and packaging.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Efficient DC Motor: The electric motor with 100% copper core has low noise and excellent speed regulating performance. The small-sized permanent magnet DC motor with an output power of 1 HP is compact and energy-saving.

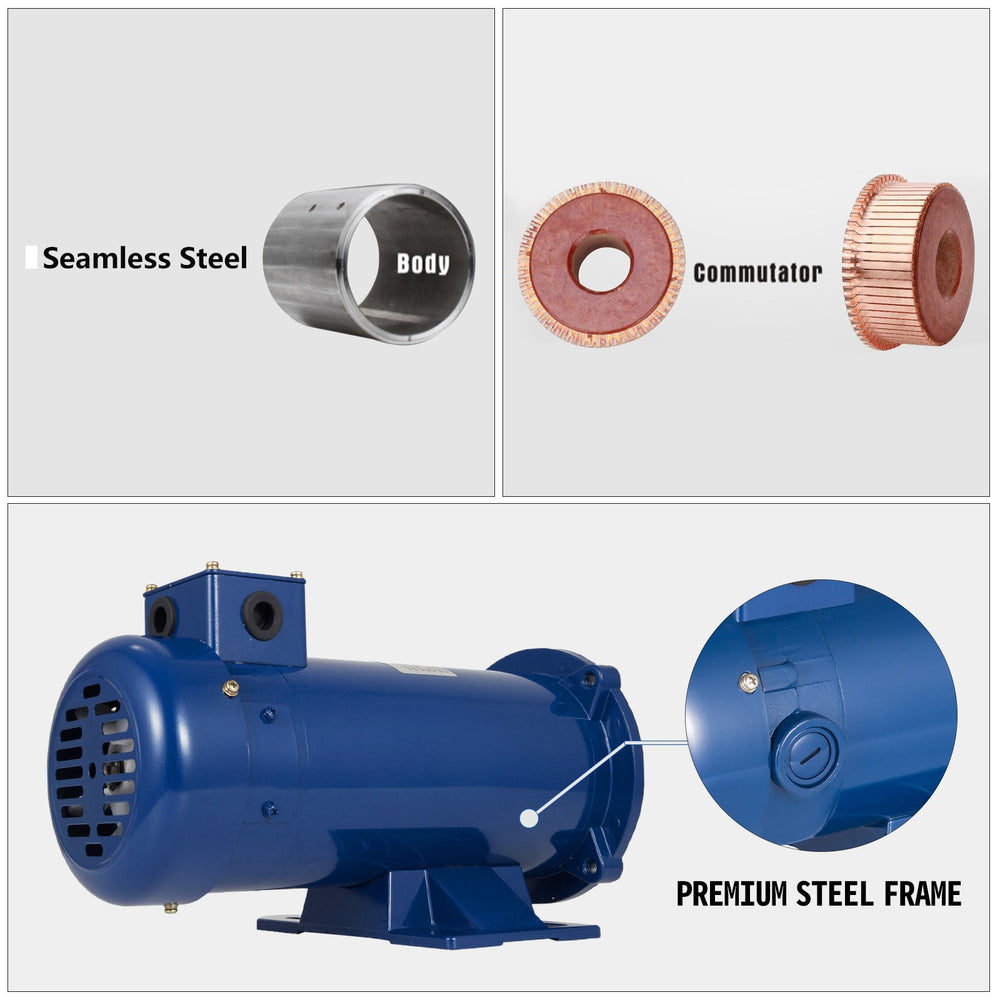

- Steel Housing: The shell of the permanent magnet DC generator is made of steel. The reliable metal material can well protect the internal circuit from thermal overload. Smooth appearance is convenient to clean and use.
- High-Speed Cooling Fan: Big fan at one end cools the high-speed DC motor for hours' running even in dusty or damp environments. It is able to reduce energy costs or overheads, reduce the running temperature, and increase winding lifetimes.

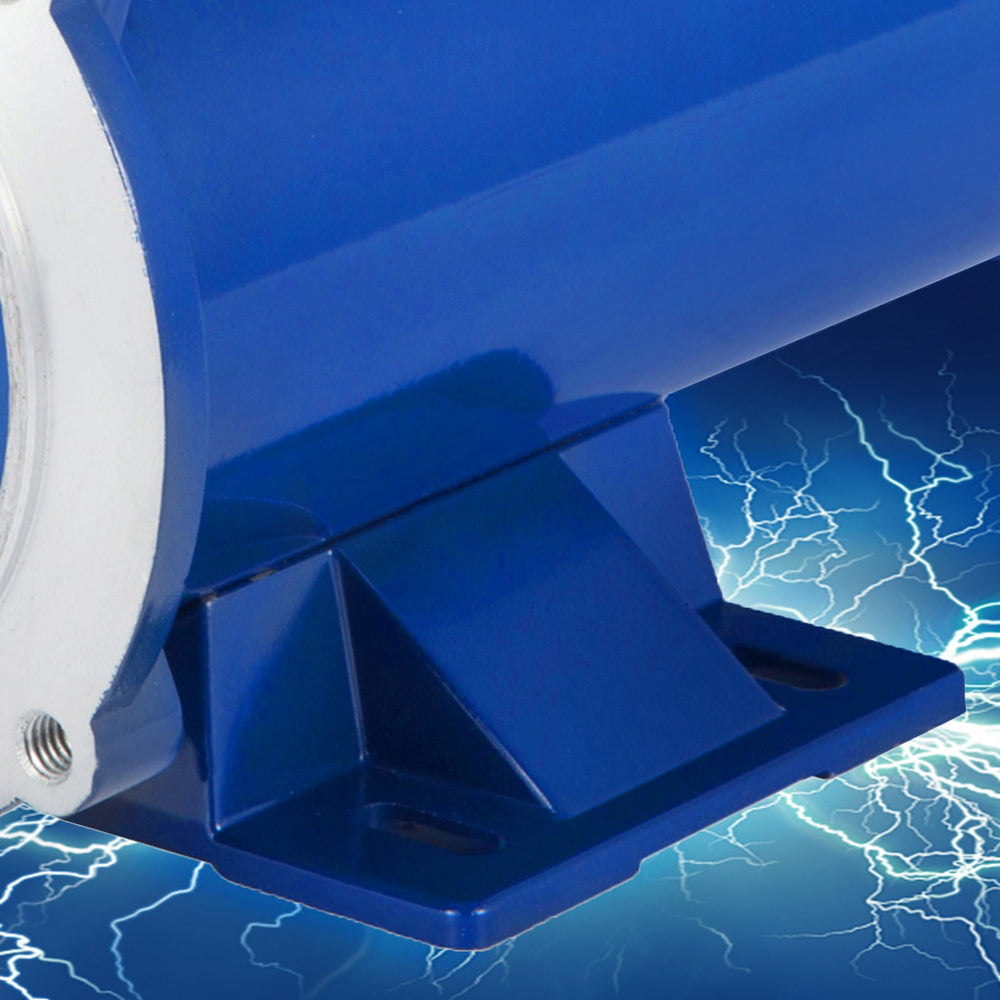

- Detachable Base: High torque DC motor with 56C frame and a mounting base provide dual mounting versatility for easy mounting. The carbon brush is a consumable part, and the package includes one pair of spare carbon brushes that can be replaced in time.
- Multiple Applications: DC motors have a wide range of applications. Our permanent magnet motor-generator is generally used in wire peelers, balers, paper cutter, and other mechanical equipment and automated control systems.
Specifications
| Rated Voltage | 12V |
| Rated Current | 81A |
| Rated Power | 1HP |
| Rated Speed | 1750 RPM |
| No-load Speed | 2050 RPM |
| Rated Torque | 4.09 N.m |
| Enclosure | TEFC |
| Frame | 56C |
| Form Factor | 1.3 |

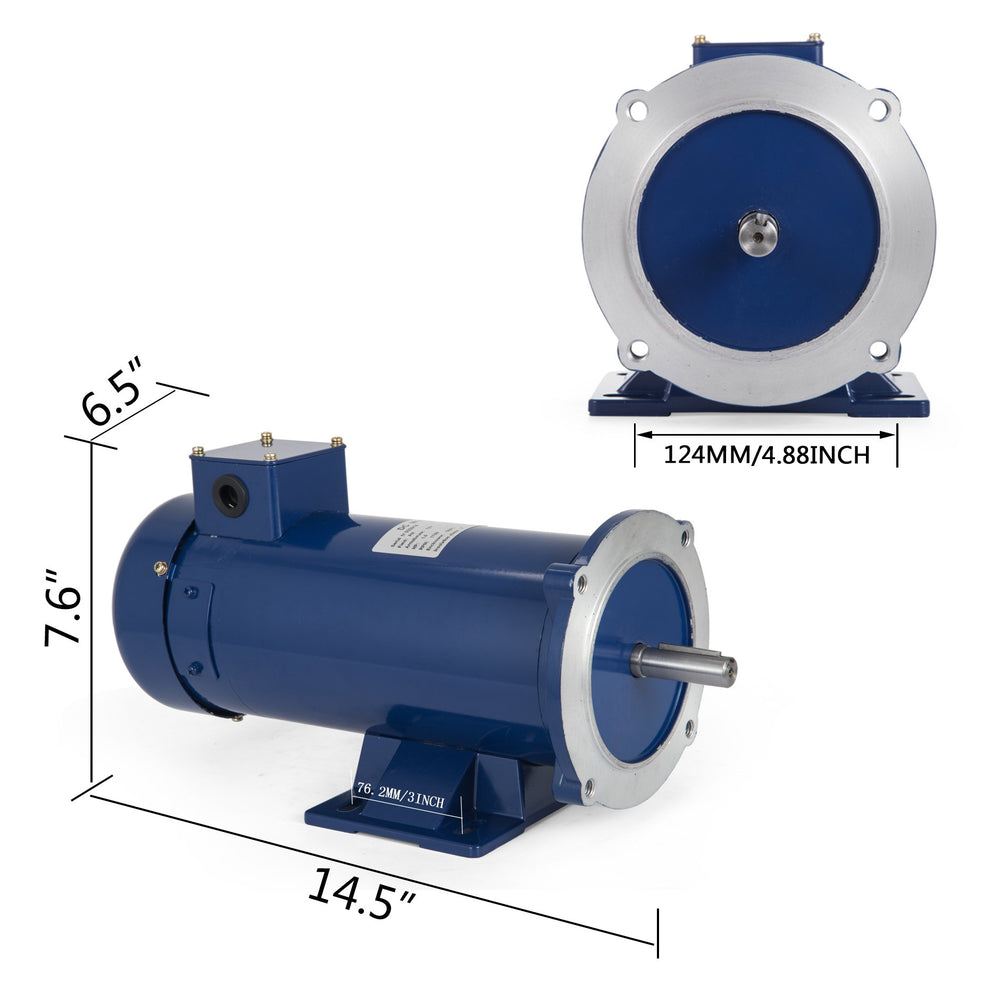

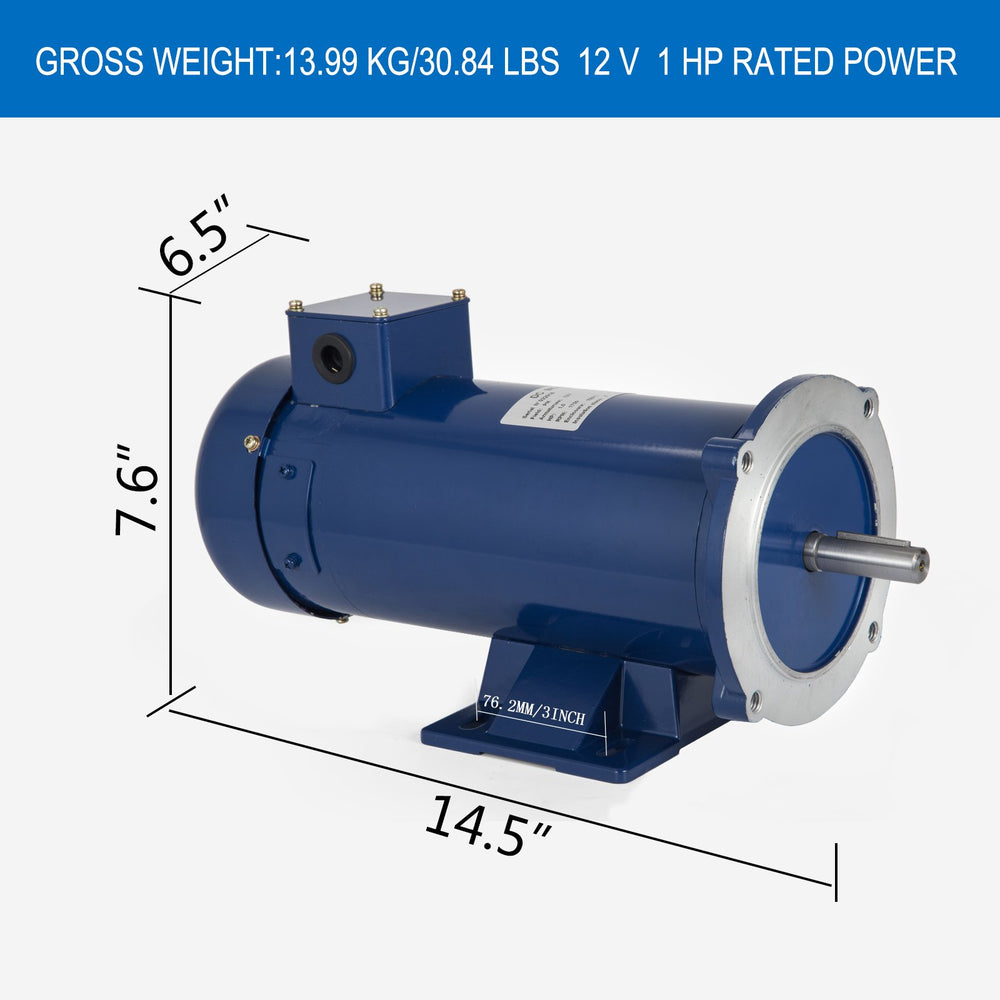

| Product Dimensions | 14.5" x 6.5" x 7.6" |
Package Contents
Vevor DC Permanent Magnet Motor 1HP 12V
(2) Carbon Brush
Warranty
This item comes with a 1 year factory warranty.
