Weldpro CUT40NH Plasma Cutter 40 AMP Dual Voltage 115-Volt/230-Volt 15-40 Amp Output L14003 New
Manufacturer: Weldpro
SKU: L14003
Share
Email
QTY
$ 668.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE THE FOLLOWING CODE FOR $10 OFF: 10off COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview
The CUT40NH is built on an inverter platform. Easy starting with blow back pilot arc allows easy cutting of rusty, dirty and painted metals. such as stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge, or as thick as 1/2 in. , with any air compressor that puts out 50.7-58 psi. Blowback start starts arc without the need of high frequency, which can interfere with surrounding electronics.
The dual voltage 115-Volt/230-Volt design allows it to be used almost anywhere there is power available (120-Volt restricts total amp output and cutting capacity)
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- 15-40 Amp output, with 60% at 40 Amp rated duty cycle
- Lightweight and portable, easily carried by 1 person (20.51ib)
- High temp and overload protection with indication
- Blowback/contact pilot arc start, which helps making clean, fast cuts through rusty, painted, or expanded metal, blowback start starts arc without the need of high frequency which can interfere with surrounding electronics
- 2T/4T modes, which is useful when having a long cut to do as it saves work of holding the trigger down the whole time
- Dual voltage 115-Volt/230-Volt 10% design
- It is designed for fabrication work, farm work, auto body repairs and DIY job
- Making clean, fast cuts through stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge, or as thick as 1/2 in.
Specifications
| Supply voltage (V) | 1 phase 115V±10% 1 phase 230V±10% |
| Frequency (Hz) | 60 |
| Rated input current (A) | 41.1/ 28.6 |
| No-load voltage (V) | 266 |
| Output current (A) | 15-30 15-40 |
| Output voltage (V) | 92, 96 |
| Duty cycle (%) | 60 |
| Power factor | 80 |
| Efficiency (%) | 0.73 |
| Arc starting mode | Non-HF, non-contact arc starting |
| Pressure of the air compressor (psi) | 50.7-58 |
| Nozzle orifice - inside (in) | .038 |
| Cutting thickness (in) | .39, .47 |
| Housing protection class | IP21 |
| Insulation class | F |
| Cooling method | Fan-cooled |
| Weight (lb) | 20.3 |
| Dimensions (in) | 16.5x6.7x12.4 |

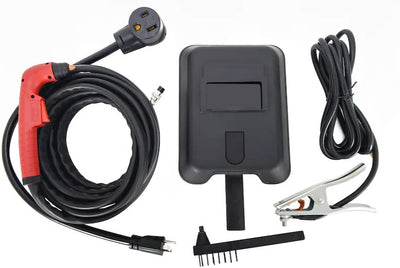

Package Contents
Inverter Plasma Cutter
Cutting Torch
Earth Clamp
Power Adapter
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
