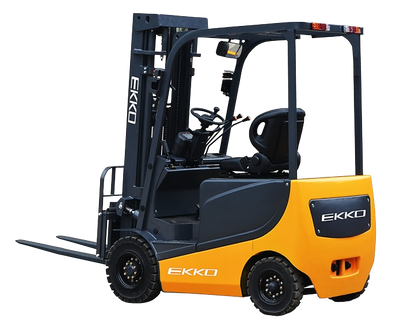

Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New

Manufacturer: Ekko

SKU: EK20R

  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
  • Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New

QTY

$ 33,998.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
Ekko EK20R 4 Wheel Electric Forklift 216

Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New

Product Overview

The Ekko EK20R 4 Wheel Electric Forklift is designed for use for all of your material handling demands.



It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

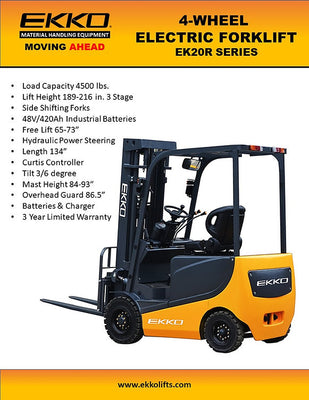

Features

  • Load Capacity 4500 lb
  • Raised Height 216" (18ft)
  • Side Shifting Forks
  • Free Lift 73”
  • Adjustable Forks 9.4-35.6"
  • Fork Length 45.3“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • ZF AC Drive Motor 7500 Watts
  • 7700 Watts Lifting Motor
  • Battery 48V/420Ah (Included)
  • Solid Cushion Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 48V/65A 480V

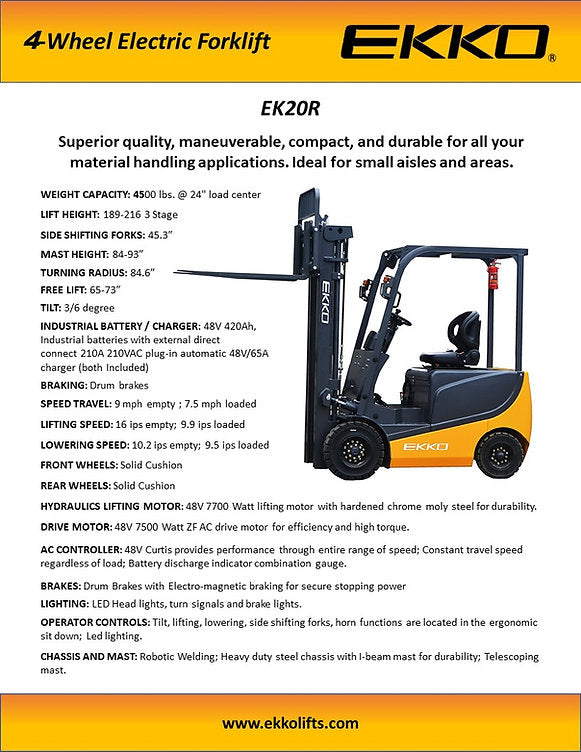

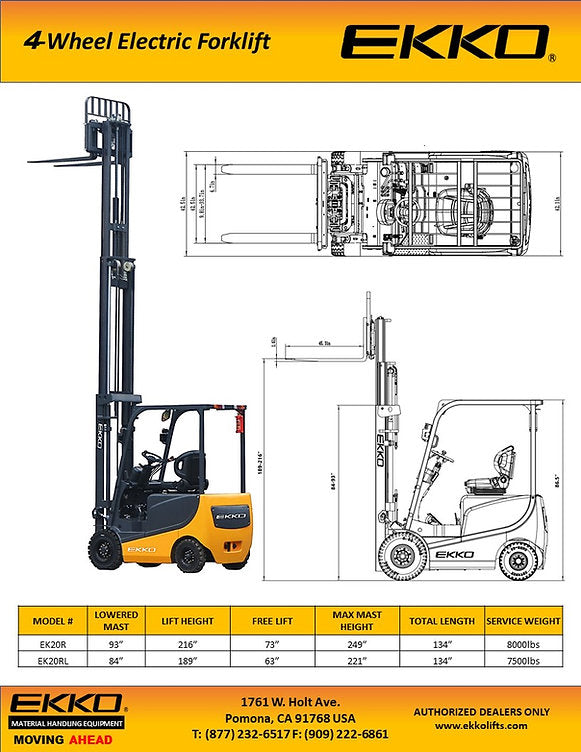

Specifications

Model EK20R
Lift Electric
Drive Sit-Down
Load capacity 4500 lbs.
Load center distance (in) 24
Wheel base (in) 55.5
Lifting height (in) 216
Free lifting height (in) 73
Lowered mast height (in) 93
Mast/Fork carriage tilt forward/backward ( °) 3/6
Side Shifting Forks 3-way valve
Overall length (in) 134
Overall width (in) 42
Fork size, Thick/Width/Length (in) 1.6/4.7/45.3
Fork adjust width (in) 9.4 - 35.6
Turning radius (in) 84.6
Maximum gradient performance, laden/unladen (%) 12/15
Lift speed, laden/unladen (in/s) 7.5/9
Lowering speed, laden/unladen (in/s) 9.5/10.2
Charger (v/a) 48/65
Driving Motor (k/w) ZF AC 48V/7500
Lifting Motor (w) 7700 Watt
Battery voltage (v/ah) 48V/420
Service Weight 8000 lbs.

Package Contents

4 Wheel Electric Forklift

Brochure

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year limited manufacturer's warranty, please see below.
