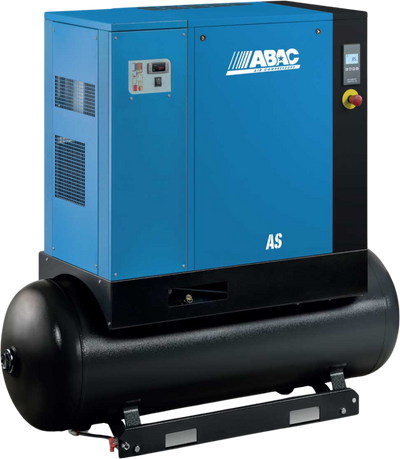

ABAC AS-B Rotary Screw Air Compressor w/ Dryer 150PSI 15HP 131 Gal. 3-Phase 230/460V New
Manufacturer: ABAC
SKU: 4152044997
Horsepower / CFM
QTY
or
(888) 999-1522
$ 11,185.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
ABAC AS-B Rotary Screw Air Compressor w/ Dryer 150PSI 15HP 131 Gal. 3-Phase 230/460V New
Product Overview
The AS-B is an all-in-one compressor, including compressor, receiver, and dryer. Key features include a fully integrated aluminum block, eco-friendly vertical oil separation technology, and an energy efficient motor. Additionally, a state-of-the-art air-end design ensures limited air loss, high energy efficiency, longevity, and limited noise and vibrations.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized ABAC dealer
Features
- 3-in-1 System Including Compressor, Dryer, and Receiver
- High Performance with Low Energy Consumption
- Fully Integrated Aluminum Block Design
- 3-Stage Vertical Oil Separation Process
- Smart and Reliable Digital Controller
- Reduced Risk of Condensation Build Up & Corrosion
- Limited Air Loss Due to Compact Size & Advanced Design
Specifications
| Item Model # | AS-15503TMD |
| Power Supply | 208-230-460V |
| Phase | 3-Phase |
| Noise Level | 69 dBA |
| Horsepower | 15 HP |
| Pump Configuration | Rotary |
| CFM @ 150 PSI | 46.4 |
| Max PSI | 150 |
| Oil Sight Glass | Yes |
| Tank Layout | Horizontal |
| Tank Capacity | 131 Gal. |
| Tank Outlet | 1/2" |
| Air Dryer | Yes (Non-Cycling) |
| Dryer Voltage | 115V 1-Phase |
| Overall Dimensions | 76" x 27" x 62" |
| Weight | 871 lbs. |
Package Contents
ABAC AS-15503TMD Rotary Screw Air Compressor 15HP 131 Gal. w/ Dryer
User Manual
Warranty
This item comes with a 1 year factory warranty.
