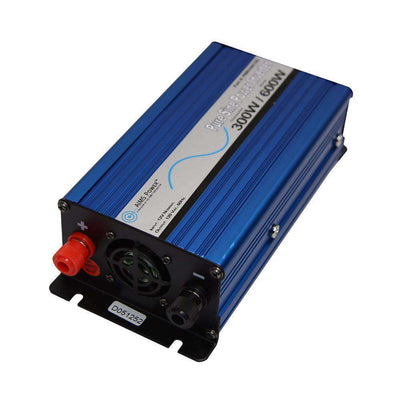

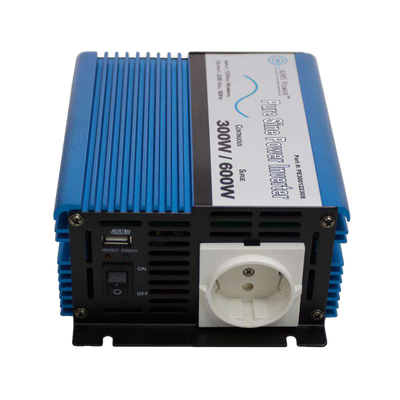

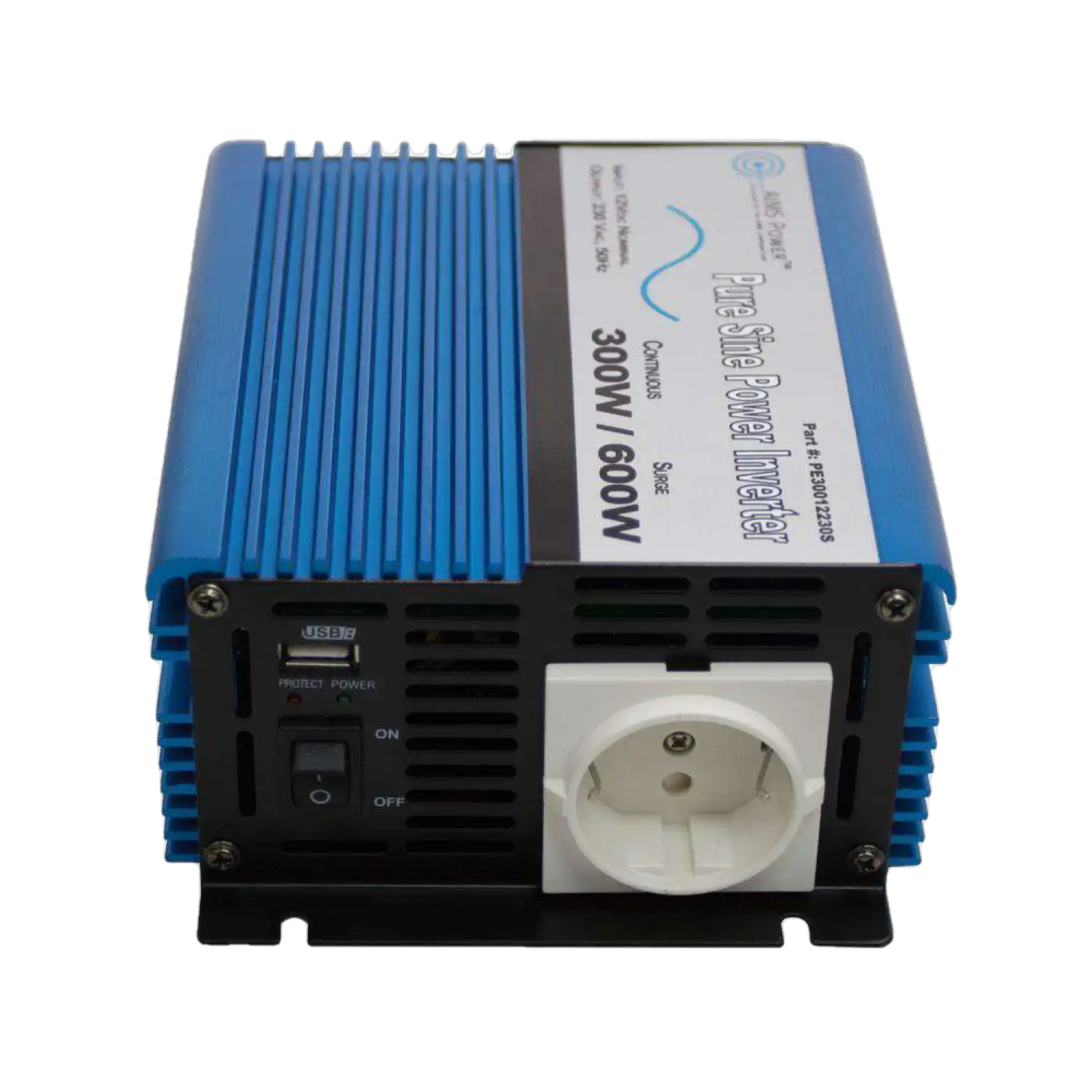

Aims Power PE60012230S 600 Watt Pure Sine Inverter New

Manufacturer: Aims Power

SKU: PE60012230S

  • Aims Power PE60012230S 600 Watt Pure Sine Inverter New
  • Aims Power PE60012230S 600 Watt Pure Sine Inverter New


$ 148.00

shipping box
FREE Shipping

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS Pure Sine Wave Power Inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights computers printers televisions medical equipment* and a broad range of appliances. And when it comes to selecting an inverter it’s helpful to know that AIMS Pure Sine Wave inverters represent the most technologically advanced lightweight compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade the AIMS’ Power Pure Sine Wave Power Inverters has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
vendor logo
authorized dealer

Brand new in box


Manufacturer direct shipping


Factory Warranty Included


Authorized Aims Dealer

Aims Power PE60012230S 600 Watt Pure Sine Inverter New

Aims Power PE60012230S 600 Watt Pure Sine Inverter New


  • 600W continuous power
  • Pure sine wave
  • USB Port
  • single ac receptacle
  • On/off switch
  • Over temperature indicator
  • Overload protection
  • Low battery voltage warning/shutdown
  • Alligator clips included 22"
  • High input voltage protection with automatic shutdown
  • Over load indicator
  • Short circuit protection
  • Load based fan - only runs when an inverter senses a load
  • Enclosed dc battery connections
  • AC output short circuit protection
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor


Continuous output power600 Watts
Surge power capability (peak power)1200 Watts
DC input / operating voltage10 to 15 Volts
Output voltage220/230 Volts ac
Output voltage regulation+/- 3%
Output wave formPure Sine Wave
Output frequency50 Hz
Battery low voltage alarm10.6 +/- 0.5 Volts
Battery low voltage shutdown10.0 +/- 0.5 Volts
Low battery voltage warning/shutdownYes
No load power consumption< .6 dc amps
DC amps50
AC amps5
Full load efficiency90%
1/3 load efficiency>85%
No load minimum operating temperature32 degrees F
Full load maximum operating temperature104 degrees F (automatic shutdown)
AC Output Socket TypeSingle Type C,E & F 16 amps
High input voltage protection15V
Low input voltage shutdown10V
Internal blade fuse protectionYes
Product size (L x W x H)8.39" x 5.51" x 2.91"

Package Contents

Aims Inverter

Owner's manual


vendor logo
authorized dealer

1 Year Manufacturer Warranty
