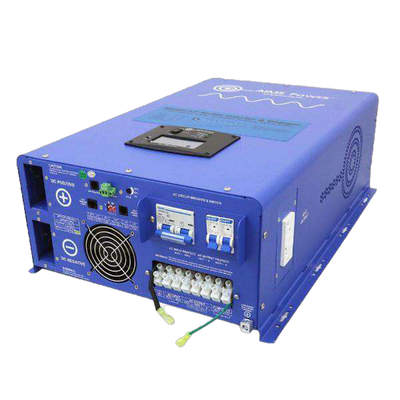

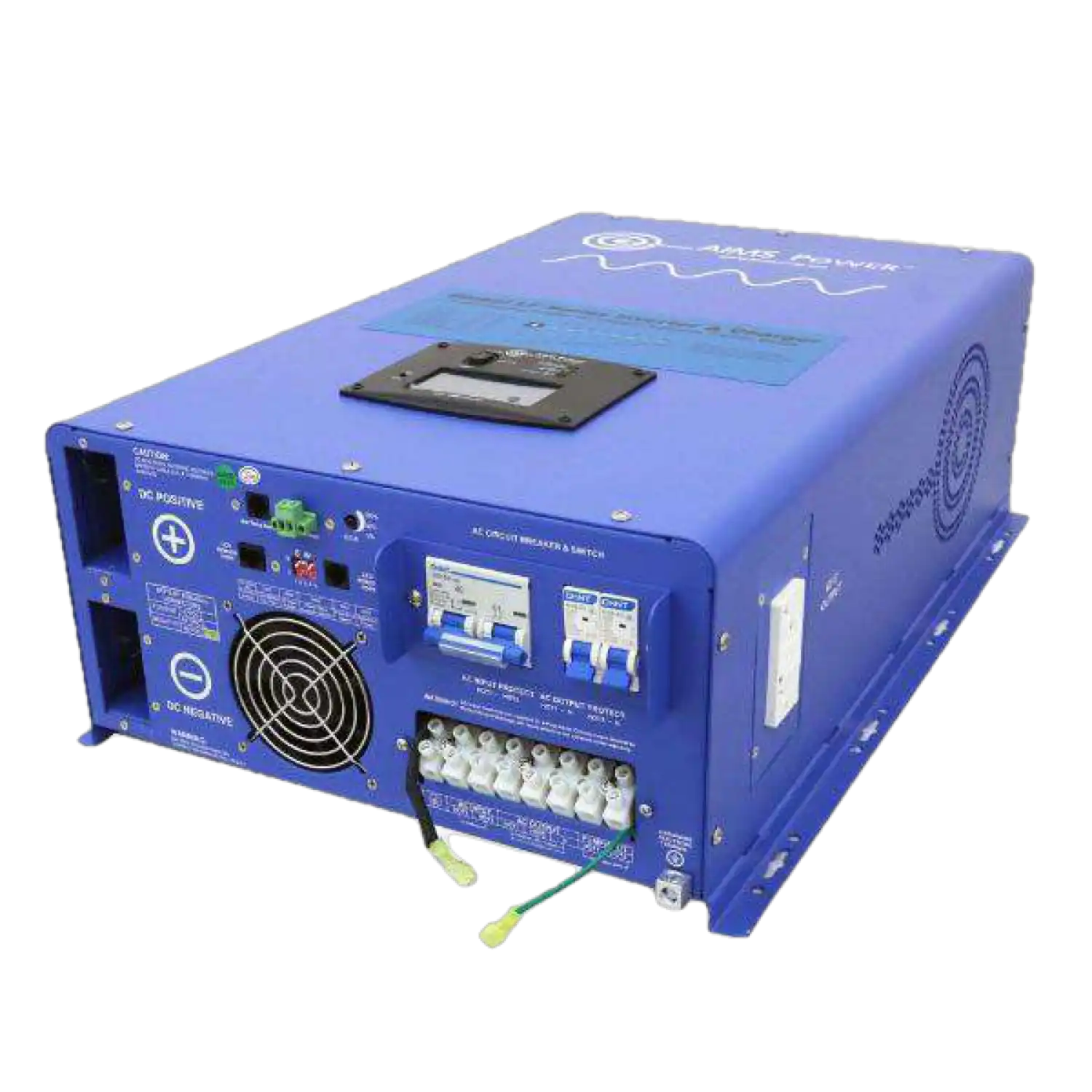

Aims Power PICOGLF10KW48V240VS 10000 Watt Pure Sine Inverter Charger New

decrease quantity increase quantity
$ 3,419.00
+
shipping icon FREE Shipping
OR

bread
Pay Over Time

Select Bread as your payment at checkout


in stock checkmarkIn Stock
truck icon
Special! Use the following coupon code at checkout for 2% off: AIMS25
Ships in (est) 1-2 business days

Extended Warranty

Factory Warranty
$0 ()

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
headset icon
Exceptional Customer Service
headset icon
Manufacturer Direct
Shopper Award
FactoryPure BBB Business Review
mcafee icon

Aims Power PICOGLF10KW48V240VS 10000 Watt Pure Sine Inverter Charger New

Aims Power PICOGLF10KW48V240VS 10000 Watt Pure Sine Inverter Charger New

share icon Share
X
AIMS Power's new 10000-watt 48-volt pure sine low-frequency inverter charger is built to last and possesses the toughness needed to get nearly any job taken care of. This monster of a 10KW inverter has ample power to tackle practically any task. Its most popular application is as an emergency backup power solution for businesses, homes and recreational applications. This inverter will output 120 or 220/230/240Vac, and it can output 50 or 60Hz via the SW4 switch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet! Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using 12 or 24 volts, which can be an attractive feature for sustainability lovers looking to live as efficiently as possible.

Overview (Right Column)

Brand new in box

Manufacturer direct shipping

Factory Warranty Included

Authorized Aims Dealer


Features (Left Column)
  • 10000 watt low frequency inverter 110/220Vac Split Phase
  • 30000 watt surge for 20 seconds -3x surge capability
  • Battery Priority Selector
  • Terminal Block
  • Marine Coated and Protected
Features (Right Column)
  • Multi Stage Smart charger 100 Amp charges GEL, Lead, AGM, Lithium
  • Remote panel available
  • 10msec typical transfer time
  • Selectable 25W power save mode (hibernation)
  • 8 battery charger settings
  • Automatic transfer switch
Product Specifications (Left Column)
  • Continuous Output Power: 10000 Watts
  • Surge Rating: 30000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Voltage: 100-110-120Vac / 220-230-240Vac
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
  • Nominal Input Voltage: 48.0Vdc
  • Low Battery Alarm: 42.0Vdc-44.0Vdc
  • Low battery Trip: 40.0Vdc-42.0Vdc
  • High Voltage Alarm: 64.0Vdc
  • Low battery Voltage Restart: 62.0Vdc
  • Idle Consumption: 150 Watts
  • Power Saver Mode Idle Consumption: 35 Watts
  • Unit Weight: 145.5 lbs.
  • Unit Size L x W x H: 23.3 x 16.3 x 7.9 inches
Product Specifications (Right Column)

Package Contents:

  • Aims Inverter
  • Owner's manual
WARRANTY
1 Year Manufacturer Warranty
