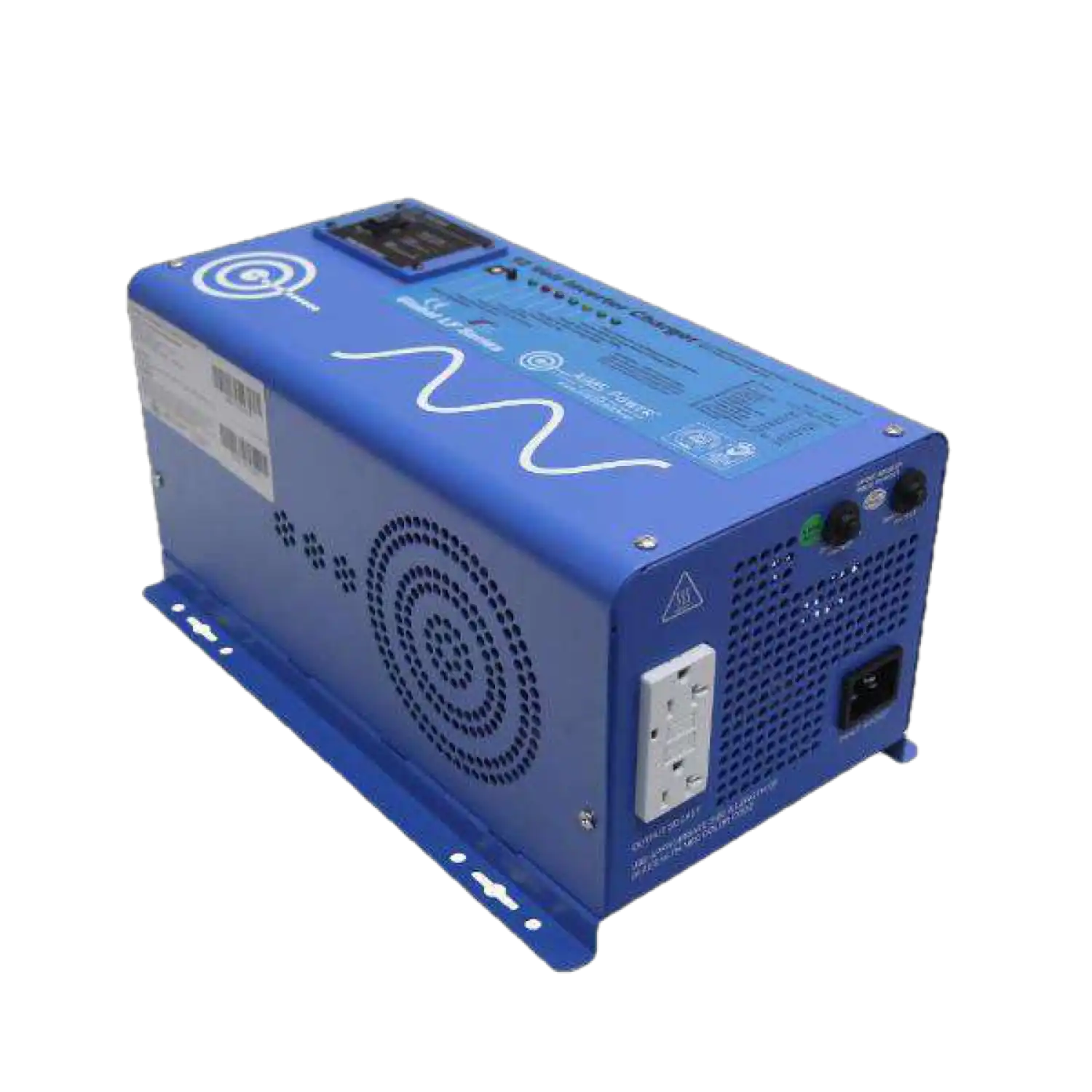

Aims Power PICOGLF10W12V120VR 1000 Watt Pure Sine Inverter Charger New
- Manufacturer: Aims Power
- SKU: PICOGLF10W12V120VR
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
|Brand new in box|
|Manufacturer direct shipping|
|1 year limited manufacturer's warranty|
|Authorized Aims Power dealer|

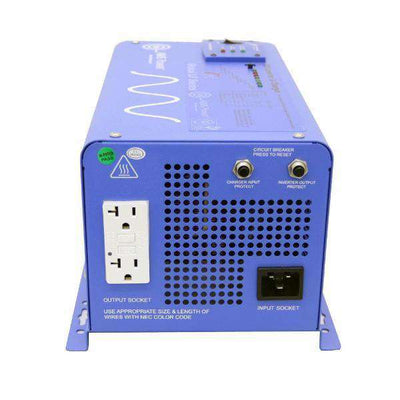

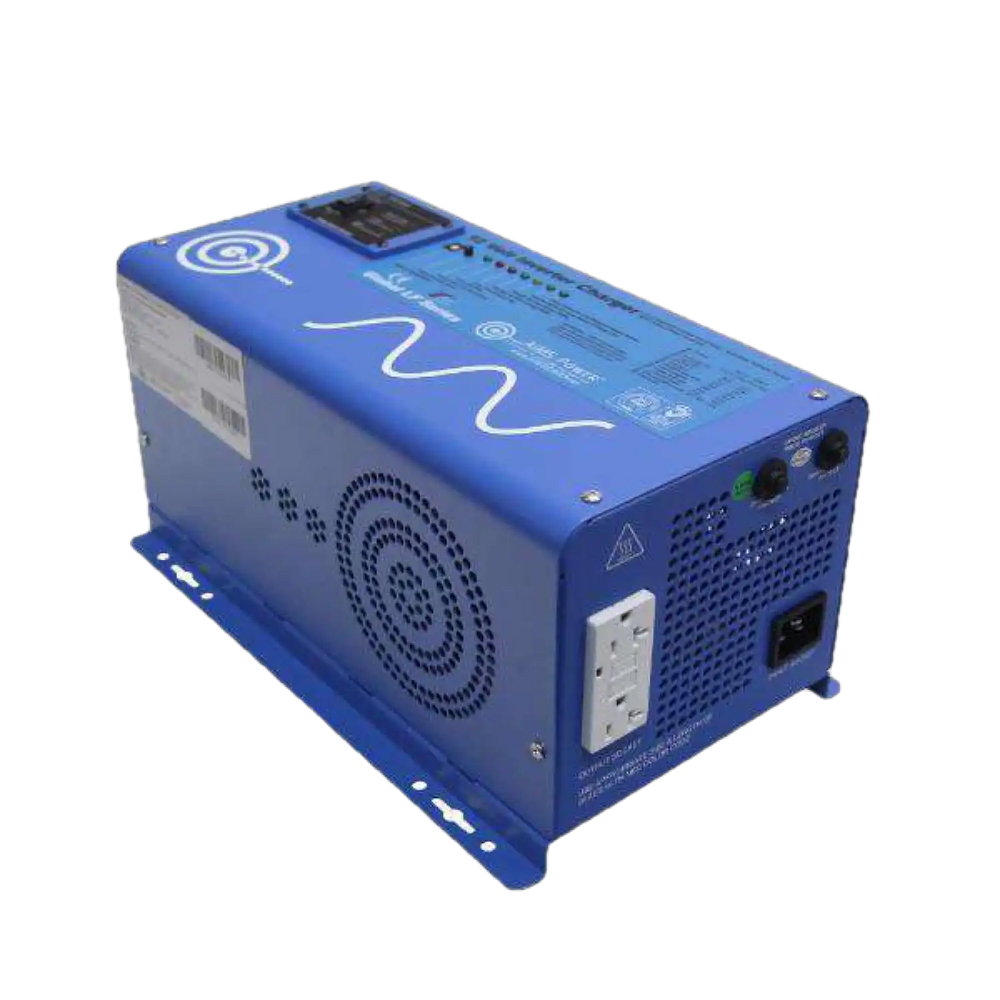

Aims Power 1000 Watt Pure Sine Inverter Charger
Here's the AIMS Power 1000 Watt Pure Sine Low-Frequency Inverter with the built-in battery charger. This inverter charger is perfect for small-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it to off-grid home back up power, solar systems, business back-up power, campsites, tailgating parties or any recreational locations. Use this product to power your essential household appliances during a power outage emergency. This inverter is also great in a smaller RV or boat. If 1000 watts is not enough power, check out our full line of low-frequency inverter chargers available in 12, 24 & 48-volt versions.
This AIMS power inverter charger is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension cord plugged into your wall outlet at home. This inverter charger is capable of a 3000-watt surge for 20 seconds and can run at 1000 watts continuously.
As an additional feature, this inverter is capable of being used worldwide by virtue of its auto frequency detection capabilities. It will run in any country that uses 120vac output. It works with type-A plugs or a direct 3-wire terminal connection. This inverter comes with a dual-plug GFCI outlet with a reset button. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at either 10 volts or 10.5 volts depending on your selection.
With the battery priority mode, you can set your inverter to run directly off of a battery back-up system instead of a generator or tertiary source of AC Powinverter-charger charger comes with a power saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will “sleep” and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it.
An optional wired remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.
- 1000 watt low frequency inverter
- 3000 watt surge for 20 seconds 300% surge capability
- Battery Priority Selector
- Terminal Block
- GFCI outlet - 10 amps
- Marine Coated and Protected
- Multi-Stage Smart charger 35 Amp
- remote panel available
- auto frequency
- 10msec typical transfer time
- selectable 25W power save mode (hibernation)
- 7 battery type settings for the charger
Inverter Output Specifications:
- Continuous Output Power: 1000 Watts
- Surge Rating: 3000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- Bypass Breaker - 20 amps
- THD: < 10% DC
- Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 15.5Vdc
- Idle Consumption: < 12.5 watts
- Charger breaker 10 amps
- Power Saver Mode Idle Consumption: <7.5 watts
- Output voltage: Depends on battery Type
- Charger Rate: 35A
- Over Charge Protection Shutdown 15.7V
- Selectable Charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four Stage Smart Charger
Transfer Switch Specifications:
- 30 amp automatic transfer switch
- 10 ms (max)
- Unit Weight: 35 lbs.
- Unit Size L x W x H: 14.1 x 8.74 x 7.10 inches
- Shipping Weight: 39 lbs.
- Shipping L x W x H 20.75 x 12.75 x 12.50 inches
As an Aims Power authorized dealer, we offer a 1 year limited factory warranty on this item.
