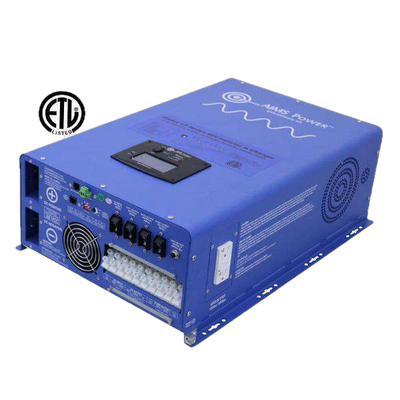

Aims Power PICOGLF120W48V240VS 12000 Watt Pure Sine Inverter Charger ETL Listed New
Manufacturer: Aims Power
SKU: PICOGLF120W48V240VS
QTY
(888) 999-1522
$ 4,071.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Special! Use the following coupon code at checkout for 2% off: AIMS25 COPY
Ships in (est) 1-2 business days
Extended Warranty
Factory Warranty
- 2 Year Manufacturer Warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- 2 Year Manufacturer Warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

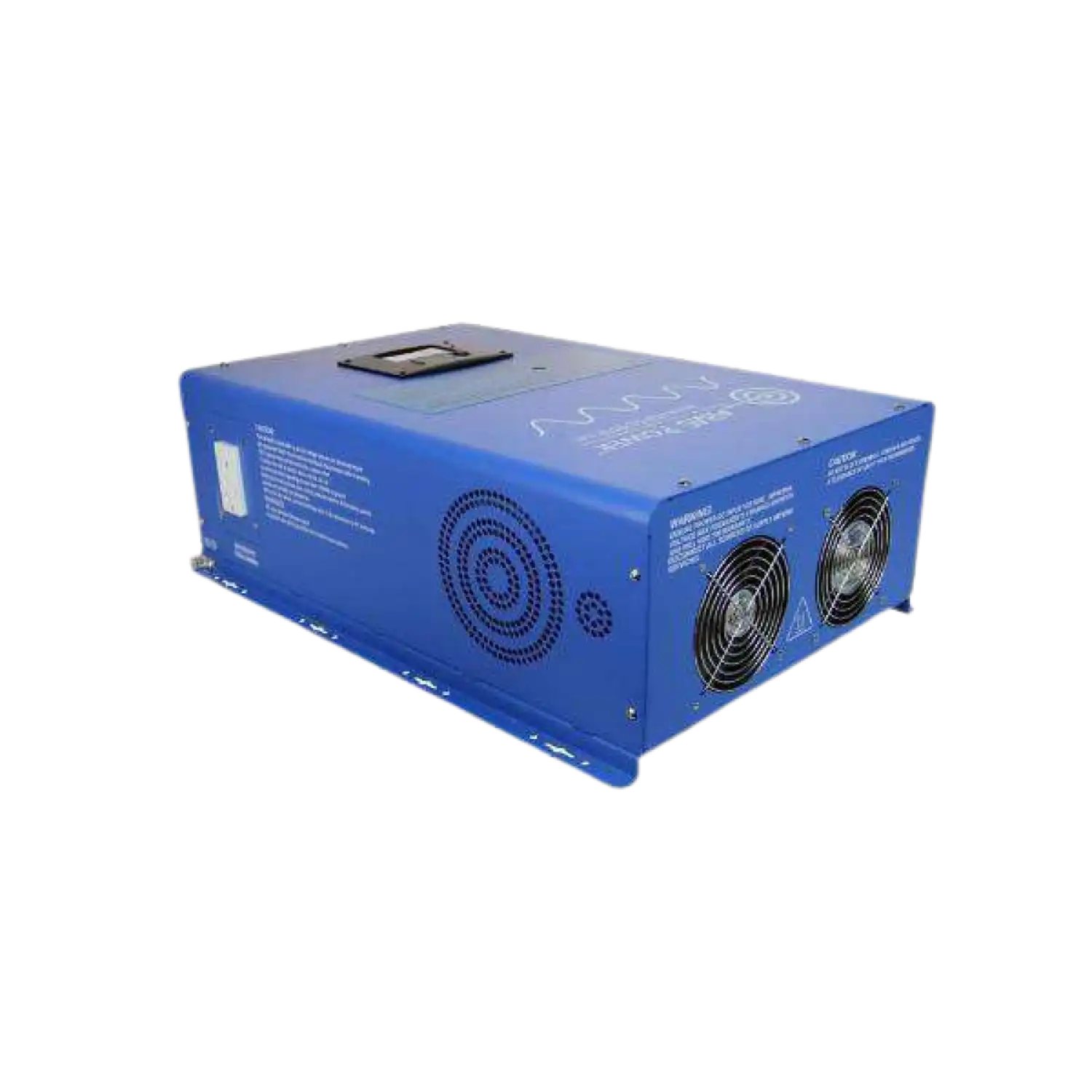

Aims Power PICOGLF120W48V240VS 12000 Watt Pure Sine Inverter Charger ETL Listed New
Product Overview
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 12000 watt low frequency inverter 110/220Vac Split Phase
- 36000 watt surge for 20 seconds -3x surge capability
- Battery priority selector

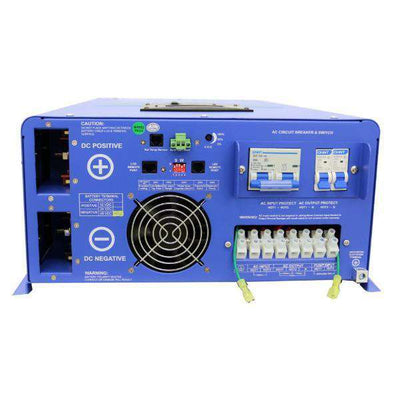

- Terminal block
- Marine coated and protected
- Multi stage smart charger 120 Amp charges gel, lead, AGM, lithium
- Remote panel available
- 60hz or 50 hz selectable dip switch
- 10msec typical transfer time
- Selectable 25W power save mode (hibernation)
- 8 battery charger settings
- Automatic transfer switch
Specifications
| Continuous Output Power | 12,000 Watts |
| Surge Rating | 36000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Voltage | 100-110-120Vac / 220-230-240Vac |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 48.0Vdc |
| Low Battery Alarm | 42.0Vdc-44.0Vdc |
| Low Battery Trip | 40.0Vdc-42.0Vdc |
| High Voltage Alarm | 64.0Vdc |
| Low Battery Voltage Restart | 62.0Vdc |
| Idle Consumption | 200 Watts |
| Power Saver Mode Idle Consumption | 40 Watts |
| Automatic Transfer Switch | 63A @ 220/230/240V |
| Bypass | 63A @ 220/230/240V |
| Unit Weight | 174 lbs. |
| Unit Size | L x W x H |
Package Contents
Aims Inverter
Owner's manual
Warranty
2 Year Manufacturer Warranty
Manuals & Documentation
Customer Reviews
Customer Reviews

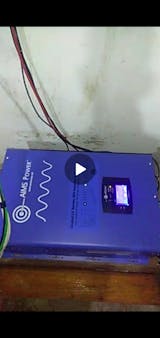

Afther search online for a good inverter , I decide to try this one because it looks like it will meet my criteria. It takes 1 to 2 weeks to arrives, I live in Connecticut. Ones it get here i send it to Domininican Republic. To be installed. Takes another 2 weeks. Finally afther this long journey this inverter is doing the job i was expecting. With 60 (250 watts) solar panels and a bank of 30 batteries is providing energy to a small country clud. We used the most for a 5 hp submersible water pump that provide water to the pool and the small hotel. If this equipment past the tests for the next 3 months we are thinking to purchase couple more to increase our electricity demand, but so far i will give a 5 🌟 rating. You can go on the web and look for plaza el oasis de Chesterfield, Dominican Republic.
