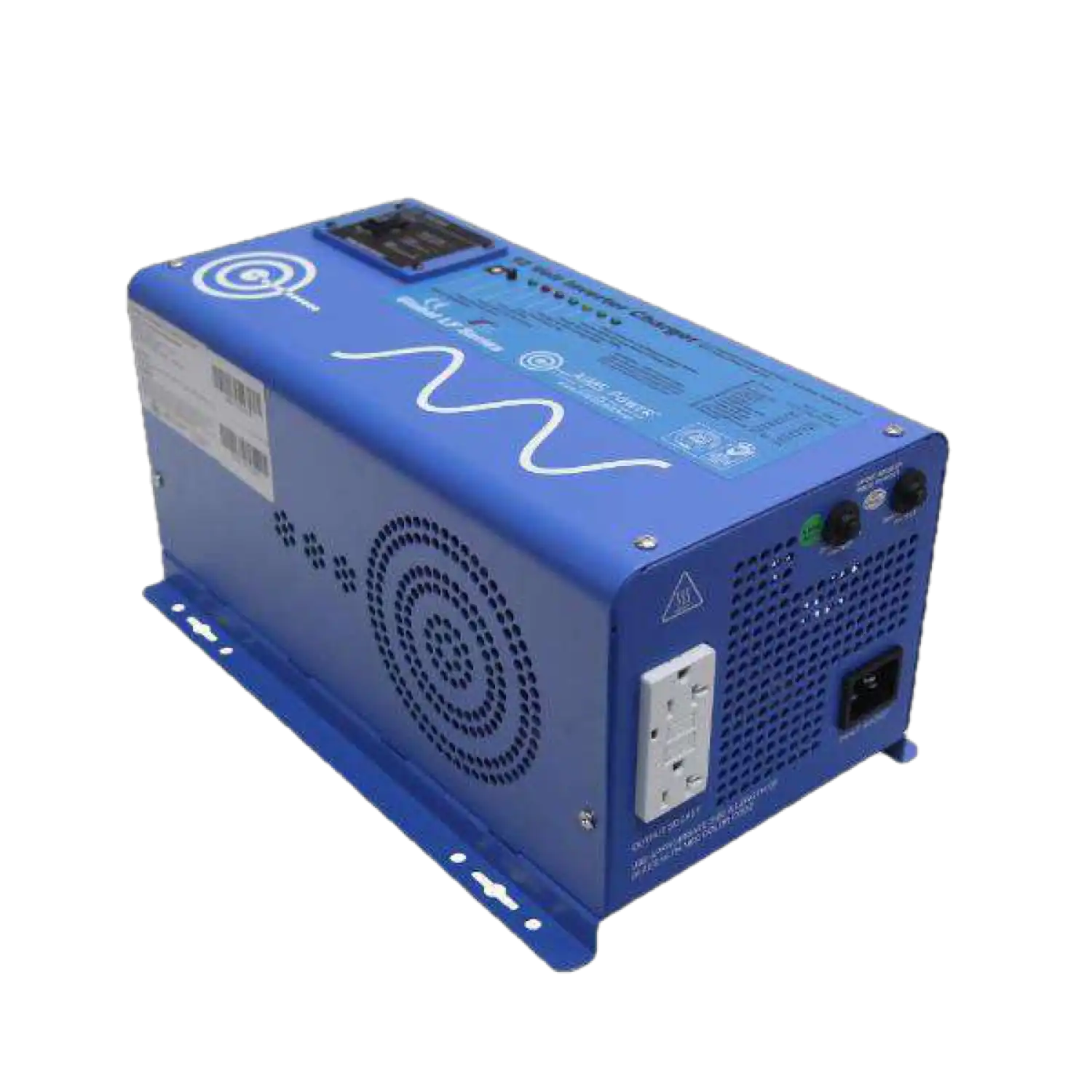

Aims Power PICOGLF15W12V120VR 1500 Watt Pure Sine Inverter Charger New
- Manufacturer: Aims Power
- SKU: PICOGLF15W12V120VR
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
 |
Brand new in box |
|
Manufacturer direct shipping |
|
1 year limited manufacturer's warranty |
|
Authorized Aims Power dealer |
|
Free shipping |
AIMS Power 1500 Watt Pure Sine Low-Frequency Inverter with built-in battery charger and transfer switch. This inverter charger is perfect for small-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that use 110 or 120 volts of alternating current.
This inverter is also great in a smaller RV or boat. If 1500 watts is not enough power, check out our full line of low-frequency inverter chargers available in 12, 24 & 48-volt versions. This AIMS power inverter charger is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension cord plugged into your wall outlet at home.
The 1500 watt inverter charger is capable of a 4500-watt surge for 20 seconds and can run at 1500 watts continuously. As an additional feature, this inverter is capable of being used worldwide by virtue of its auto frequency detection capabilities. It will run in any country that uses 120vac output. It works with type-A plugs or a direct 3-wire terminal connection. This inverter comes with a dual-plug GFCI outlet with a reset button. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at either 10 volts or 10.5 volts depending on your selection. With the battery priority mode, you can set your inverter to run directly off of a battery back-up system instead of a generator or tertiary source of AC Power. The inverter-charger comes with a power saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will “sleep” and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it.
An optional wired remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.
Features:
- 1500 watt low-frequency inverter
- 4500-watt surge for 20 seconds -3x surge capability
- Battery Priority Selector
- Terminal Block
- GFCI - 15 amps
- Marine Coated and Protected
- Multi-Stage Smart charger 50 Amp
- remote panel available
- auto frequency
- 10msec typical transfer time
- selectable 25W power save mode (hibernation)
- 7 battery type settings for the charger
Specifications:
Inverter Output Specifications:
- Continuous Output Power: 1500 Watts
- Surge Rating: 4500 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Output Voltage 100-110-120Vac
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Bypass terminal breaker - 20 amps
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
Input Specifications
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 15.5Vdc
- Charger breaker - 20 amps
- Idle Consumption: 13.5 Watts
- Power Saver Mode Idle Consumption: 8 Watts
Charger Specifications
- Output voltage: Depends on battery Type
- Charger Rate: 50A
Dimensions
- Unit Weight: 33 lbs.
- Unit Size L x W x H: 14.1 x 8.74 x 7.10 inches
- Shipping Weight: 42 lbs.
- Shipping L x W x H 20.75 x 12.75 x 12.5 inches
As an Aims Power authorized dealer, we offer a 1 year limited factory warranty on this item.
|
|
|||
