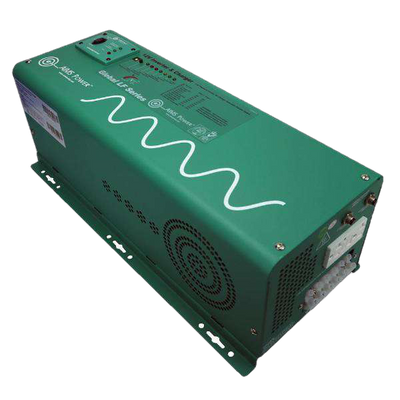

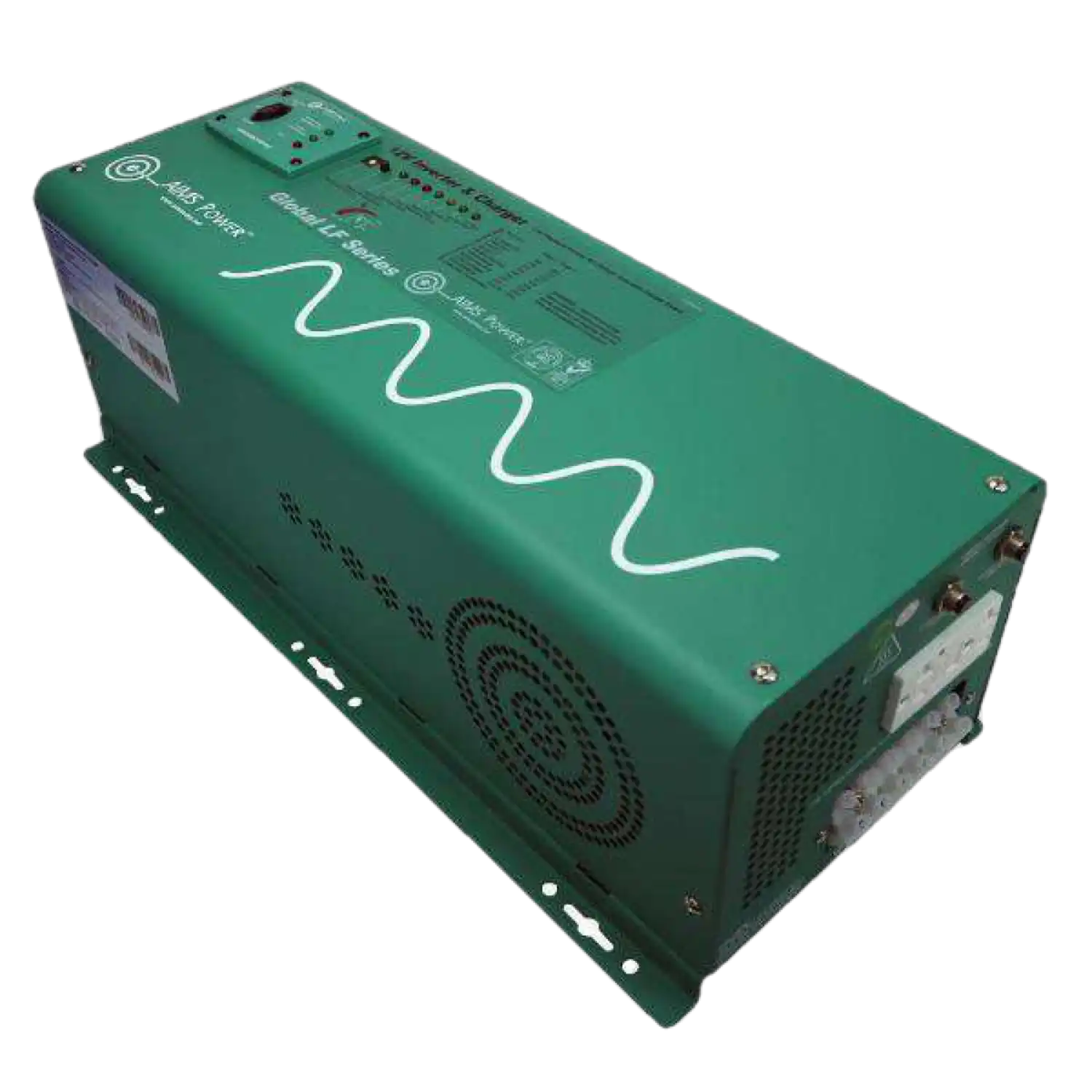

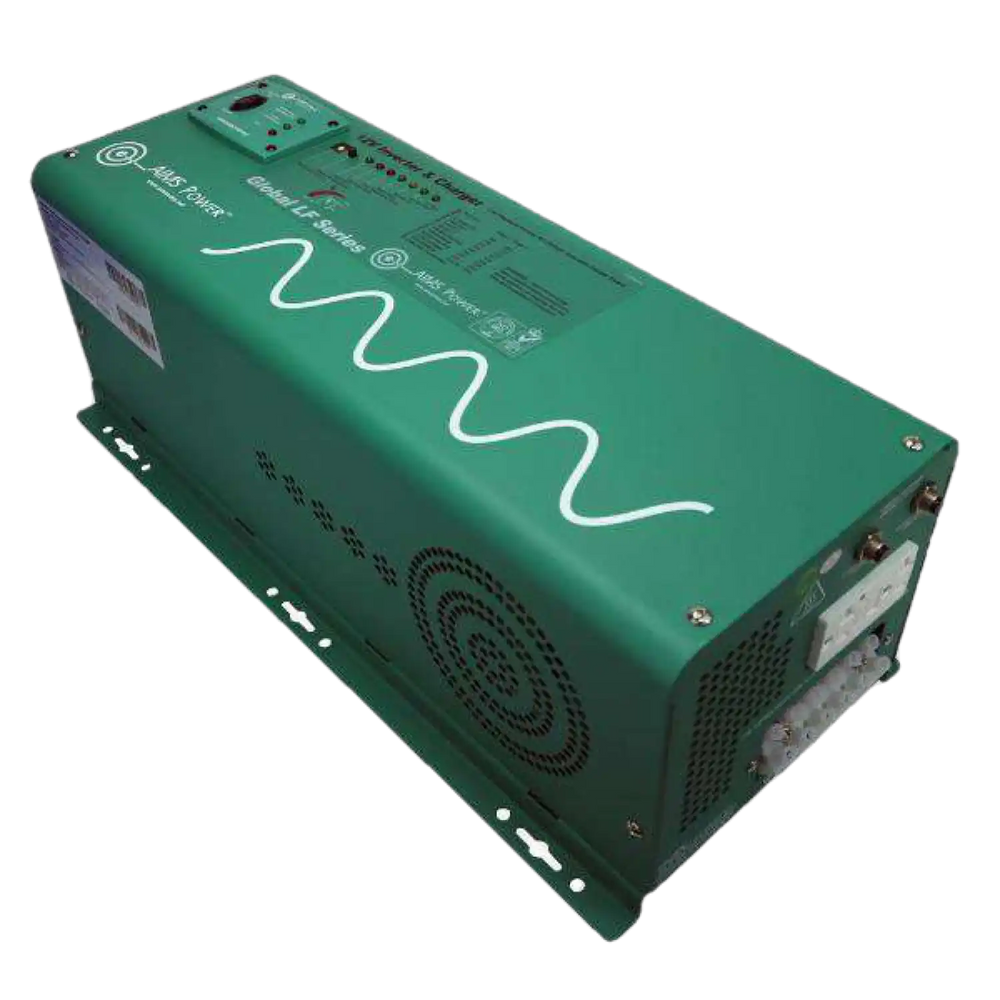

Aims Power PICOGLF25W12V120AL 2500 Watt Pure Sine Inverter Charger New

  • Model: Aims Power
  • SKU: PICOGLF25W12V120AL
Aims Power PICOGLF25W12V120AL 2500 Watt Pure Sine Inverter Charger New

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in!
56800

In Stock
/  876 Sold
Ships Same or Next Day
If ordered by 12PM EST
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.



Brand new in box
Manufacturer direct shipping
1 year limited manufacturer's warranty
Authorized Aims Power dealer
Free shipping

Features:

  • 2500 watt continuous
  • 7500 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often)
  • AC direct connect terminal block
  • GFCI outlet
  • Marine coated and protected
  • Multi stage smart charger 85 A
  • LCD or LED remote panel available (LED available in Dec.)
  • Thermal and load based fan
  • Low voltage recovery
  • Power save mode
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for the charger
  • 1-year warranty and free tech support

(no dip switches, optional battery temp sensor or auto gen start)

    Specifications:

    Output Specifications:

    • Continuous output power: 2500 Watt
    • Surge rating: 7500 Watt (20 seconds)
    • Output waveform: pure sine/same as input (bypass mode)
    • Output voltage: 100-110-120 VAC
    • Nominal efficiency: >88% (peak)
    • Line mode efficiency: >95%
    • Output frequency: 60Hz +/- 0.3Hz
    • Typical transfer time: 10ms (max)
    • Terminal output breaker/ transfer load: 30 amps automatic
    • THD: < 10% DC

    Input Specifications:

    • Nominal input voltage: 12.0 VDC
    • Minimum start voltage: 10.0 VDC
    • Low battery alarm: 10.5Vdc-11.0 VDc
    • Low battery trip: 10.0Vdc-10.5 VDC
    • High voltage alarm: 16.0 VDC
    • Low battery voltage restart: 15.5 VDC
    • Input breaker / charger breaker – 30 amps
    • Idle consumption: 55 watts
    • Power saver mode idle consumption: <21.7 watts

    Charger Specifications:

    • Output voltage: depends on battery type
    • Charger rate: 85 A

    Dimensions:

    • Unit weight: 46 lbs
    • Unit size: L x W x H: 21 1/2 x 8 3/4 x 7 3/8 inches
    • Shipping weight: 50 lbs.
    • Shipping size: L x W x H: 23.5 x 13.0 x 12.5 inches

                        As an Aims Power authorized dealer, we offer a 1 year limited factory warranty on this item.

                        Aims Power inverters have a one to two year warranty. If it is a ETL listed inverter it has a two year, all other models have a one year.
