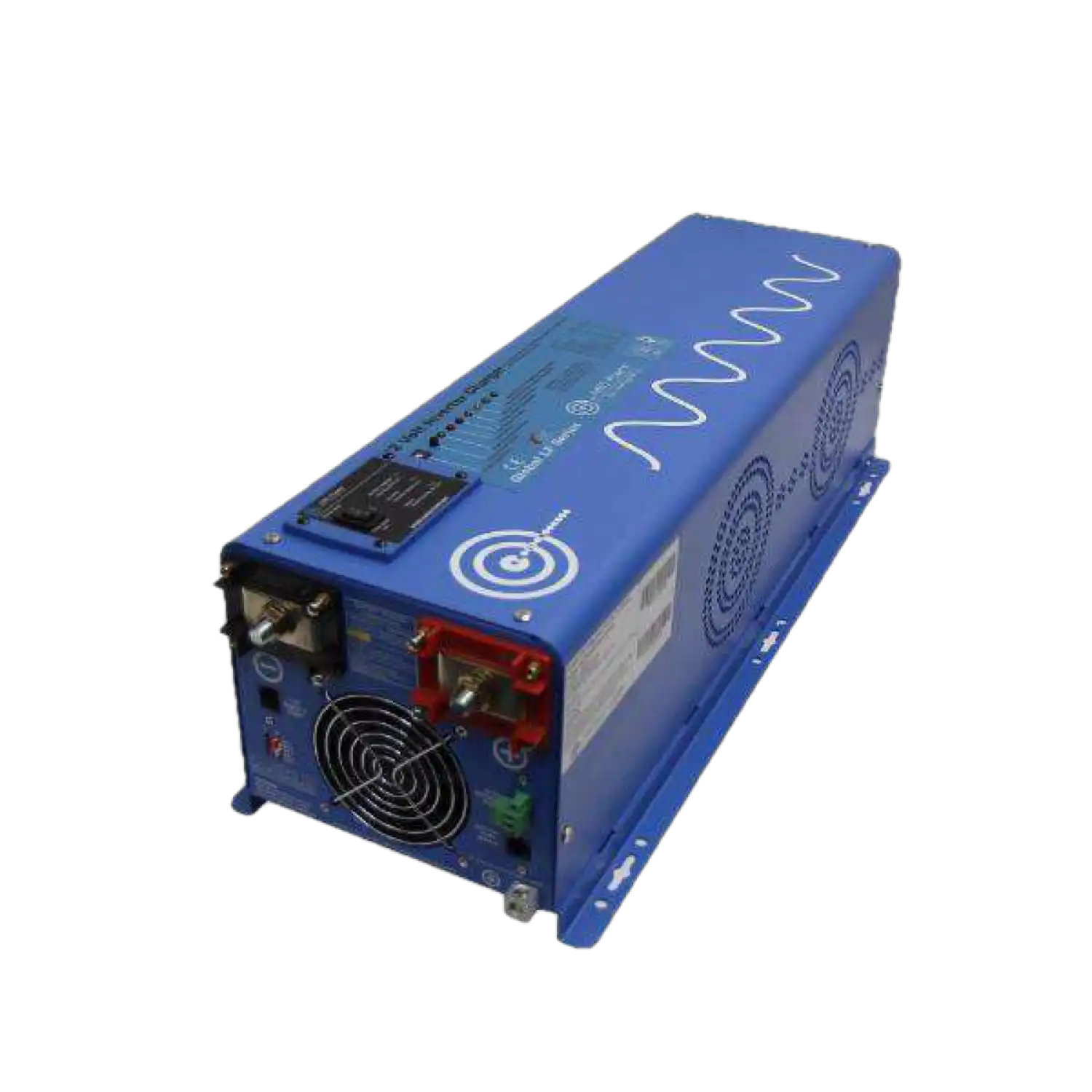

Aims Power PICOGLF4012120240VS 4000 Watt Pure Sine Inverter Charger - Charges at 120 VAC New
Manufacturer: Aims Power
SKU: PICOGLF4012120240VS
QTY
(888) 999-1522
$ 1,559.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
Special! Use the following coupon code at checkout for 2% off: AIMS25 COPY
Ships in (est) 1-2 business days
Extended Warranty
Factory Warranty
- 1 Year Manufacturer Warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- 1 Year Manufacturer Warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Aims Power PICOGLF4012120240VS 4000 Watt Pure Sine Inverter Charger - Charges at 120 VAC New
Product Overview
This 4000 watt inverter charger produces a pure sine wave, which some appliances require for use. So it can run laser jet printers, computers, televisions, CPAP machines and other medical equipment. During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing. Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 4000 Watt Low Frequency Inverter
- 12,000 Watt Surge for 20 seconds 300% Surge Capability
- 120/240 VAC Output Split Phase Charges with 120 Vac Multi-Stage Smart Charger
- 115 Amp Battery Priority Selector
- Charges Lithium LiFePO4, Gel, AGM and Lead Batteries. We recommend Checking Battery Charging Specifications for All Batteries.

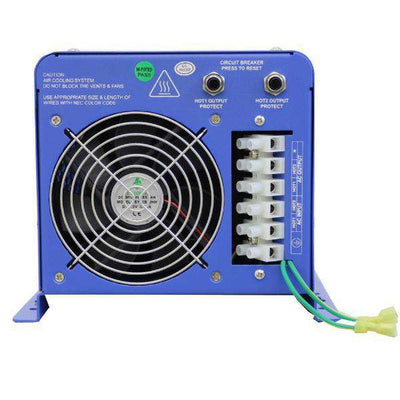

- Direct Connect AC Terminal Block
- Marine Coated and Protected
- Remote Panel Available Auto Frequency
- 10msec Typical Transfer Time Optional 25W Power Save Mode
- 7 Battery Type Settings For Charger
- 7 Automatic Transfer Switch
Specifications
| Continuous Output Power | 4000 Watts |
| Surge Rating | 12,000 Watts (20 Seconds) |
| Output 120/240 Vac | Split Phase 60hz |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Nominal Efficiency | >88% (Peak) Line Mode Efficiency |
| Output Frequency | 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low battery Trip | 10.0Vdc-10.5Vdc |
| High Voltage Alarm | 16.0Vdc Low battery |
| Voltage Restart | 15.5Vdc |
| Idle Consumption | 50 Watts |
| Power Saver Mode Idle Consumption | 21 Watts |
| Output voltage | Depends on battery Type |
| Charger Rate | 115A Over |
| Charge Protection Shutdown | 15.7V |
| Adjustable charge current off | 20%-100% |
| Unit weight | 75 lb |
| Unit size | L x W x H |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
