Aims Power PICOGLF4024120UL 4000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New
Product Overview
AIMS Power 4000 Watt Pure Sine Low Frequency Inverter, single phase with built-in battery charger and transfer switch. This inverter charger is perfect for medium-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz. This AIMS power inverter charger includes a powerful 45 amp charger and is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 4000 Watt Low Frequency Inverter
- 12000 Watt Surge for 20 Seconds 300% Surge Capability
- 24 Volt DC
- Single Phase 120Vac Output

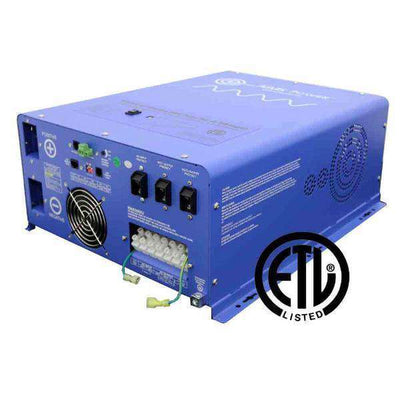

- Listed to UL 458, 1741, 1012 and CSA 22.2 NO 107.1 & 107.2
- Battery Priority Selector
- AC Direct Connect Terminal Block
- Marine Coated and Protected
- Multi Stage Smart Charger 45 Amp
- Charges Lithium LiFePO4, gel, AGM and Lead batteries

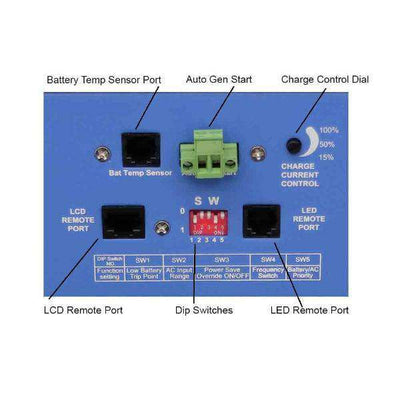

- Remote Panel Available LED or LCD
- Auto Frequency
- 10msec Typical Transfer Time
- Selectable 25W Power Save Mode (hibernation)
- 7 battery Type Settings for Charger
- Allows Start up and Through Power With Depleted Batteries
- Automatic Transfer Switch
Specifications
| Continuous output power | 4000 Watts |
| Surge rating | 12000 Watts (20 Seconds) |
| Output waveform | Pure Sine/Same as input (Bypass Mode) |
| Output voltage | 100-110-120Vac |
| Output breaker | 50 Amps |
| Nominal efficiency | >88% (Peak) |
| Line mode efficiency | >95% |
| Output frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical transfer time | 10ms (Max) |
| THD | < 10% DC |
| Ambient operating temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal input voltage | 24.0Vdc |
| Minimum start voltage | 20.0Vdc |
| Low battery alarm | 21.0Vdc-22.0Vdc |
| Low battery trip | 20.0Vdc-21.0Vdc |
| High voltage alarm | 32.0Vdc |
| Low battery voltage restart | 26.6Vdc |
| Idle consumption | 52.5 watts |
| Idle consumption with power saver mode ON | <25 watts |
| Output voltage | Depends on battery Type |
| Charger rate | 45A |
| Over charge protection shutdown | 31.4V |
| Adjustable charge current | off-15%-100% |
Package Contents
Aims Inverter
Owner's manual
Warranty
2 Year Manufacturer Warranty
