Aims Power PICOGLF40W24V120V 4000 Watt Pure Sine Inverter Charger New
Manufacturer: Aims Power
SKU: PICOGLF40W24V120V
QTY
(888) 999-1522
$ 1,313.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
Special! Use the following coupon code at checkout for 2% off: AIMS25 COPY
Ships in (est) 1-2 business days
Extended Warranty
Factory Warranty
- 1 Year Manufacturer Warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- 1 Year Manufacturer Warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased

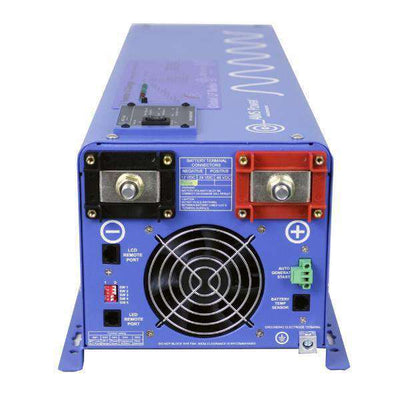

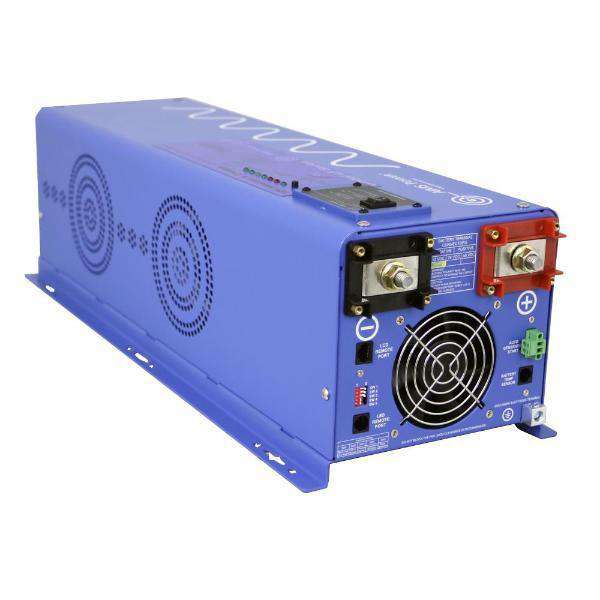

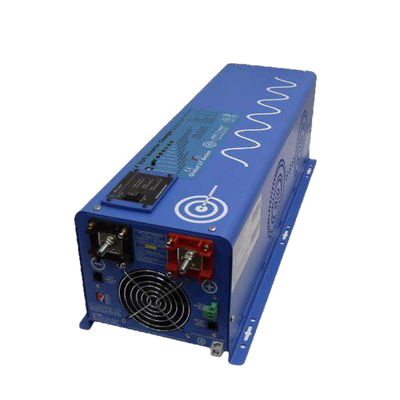

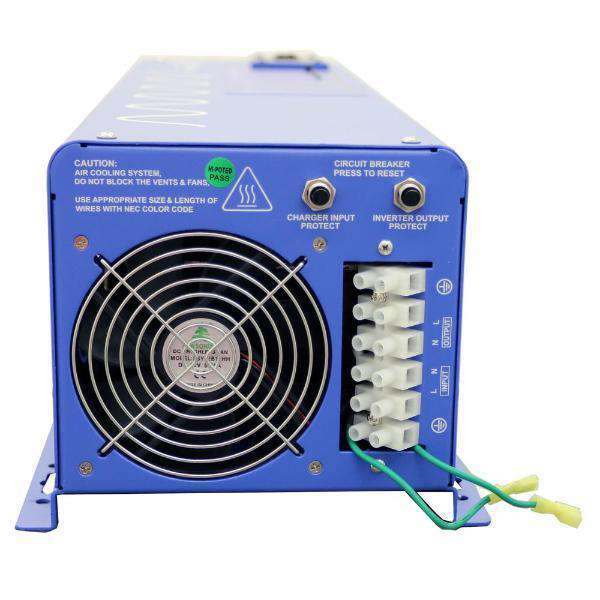

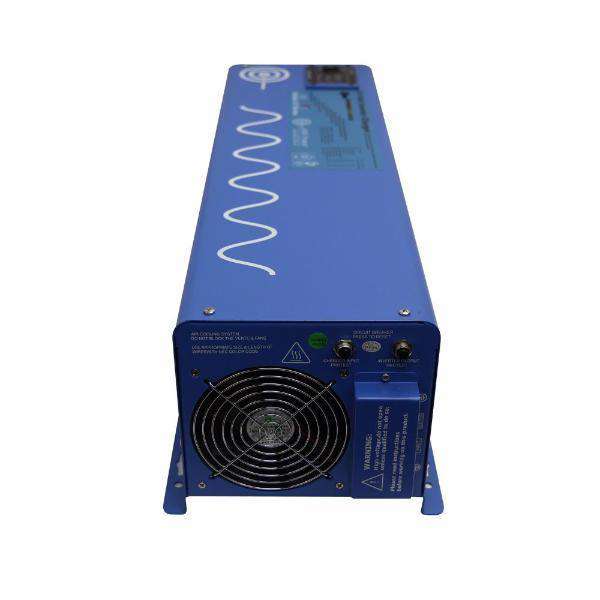

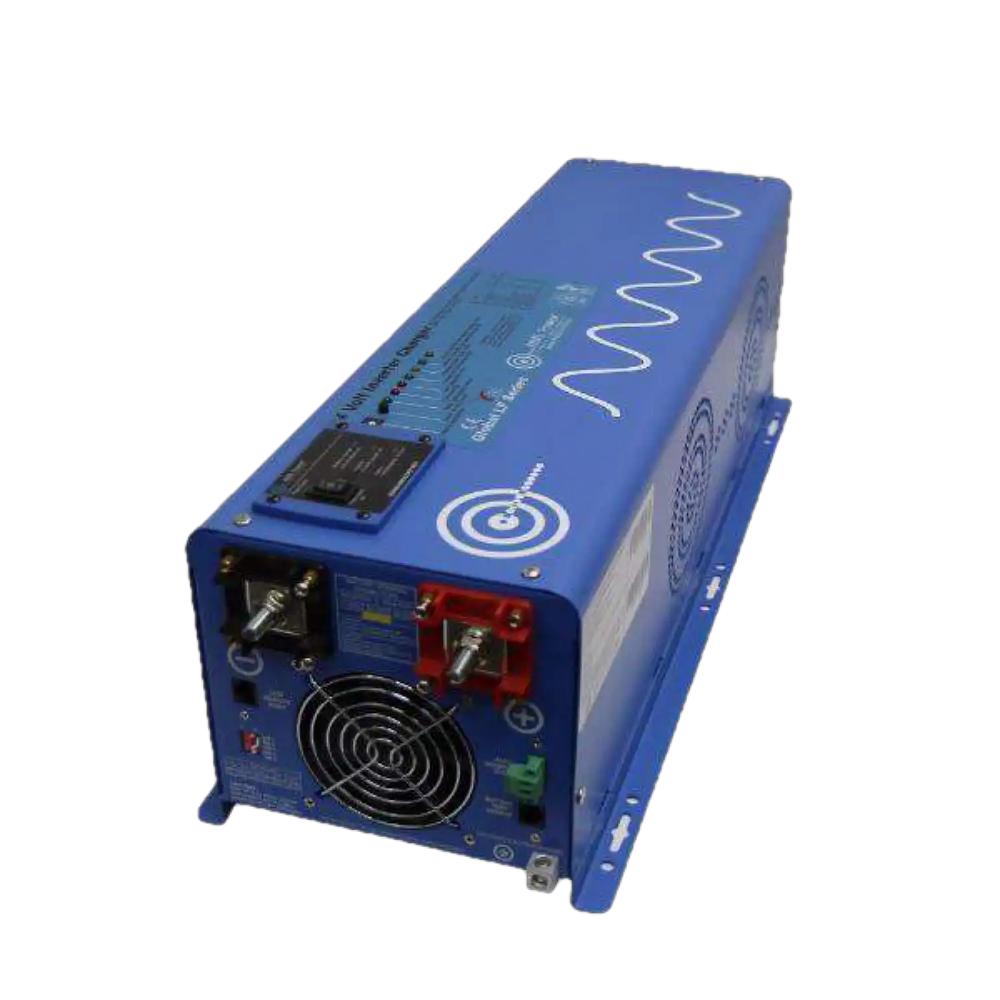

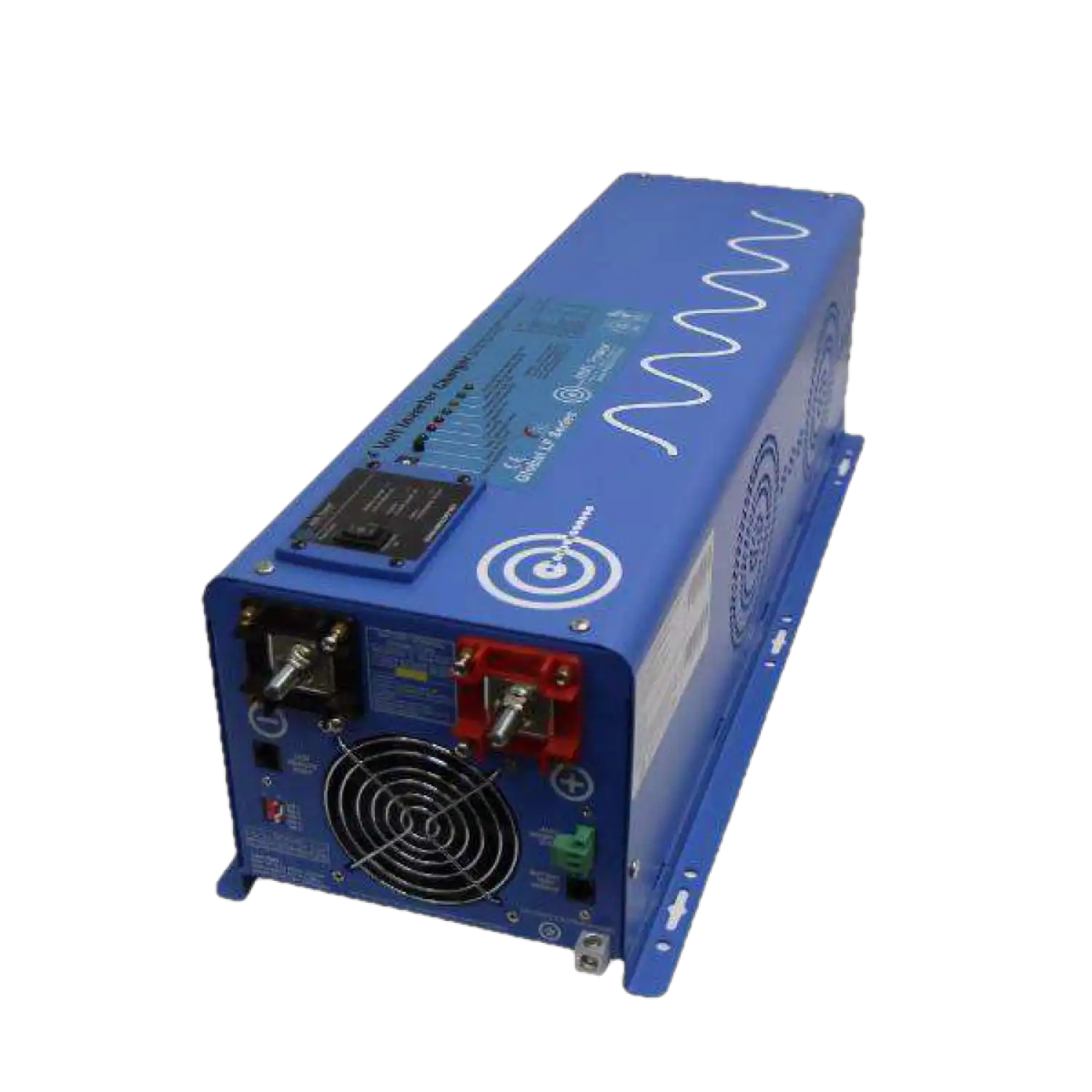

Aims Power PICOGLF40W24V120V 4000 Watt Pure Sine Inverter Charger New
Product Overview
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 4000 Watt Low Frequency Inverter
- 12000 Watt Surge for 20 Seconds 300% Surge Capability
- 24 Volt DC
- Battery Priority Selector
- Terminal Block
- Marine Coated and Protected
- Multi Stage Smart charger 50 Amp
- Charges Lithium LiFePO4, GEL, AGM and Lead Batteries
- Remote Panel Available
- Auto Frequency
- 10msec Typical Transfer Time
- Selectable 25W Power Save Mode (hibernation)
- 7 Battery Type Settings for Charger
- Automatic Transfer Switch
Specifications
| Continuous Output Power | 4000 Watts |
| Surge Rating | 12000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Output Voltage | 100-110-120Vac |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient operating temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 24.0Vdc |
| Minimum Start Voltage | 20.0Vdc |
| Low Battery Alarm | 21.0Vdc-22.0Vdc |
| Low battery Trip | 20.0Vdc-21.0Vdc |
| High Voltage Alarm | 32.0Vdc |
| Low battery Voltage Restart | 26.6Vdc |
| Idle Consumption | 52.5 Watts |
| Idle Consumption with Power Saver Mode ON | <25 Watts |
| Charger Rate | 50A |
| Over Charge Protection Shutdown | 31.4V |
| Unit Weight | 62 lbs. |
| Unit Size L x W x H | 23.5 x 8.74 x 7.10 inches |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
