  • Manufacturer: Aims Power
  • SKU: PICOGLF6024120UL
  • Share  Share
    X

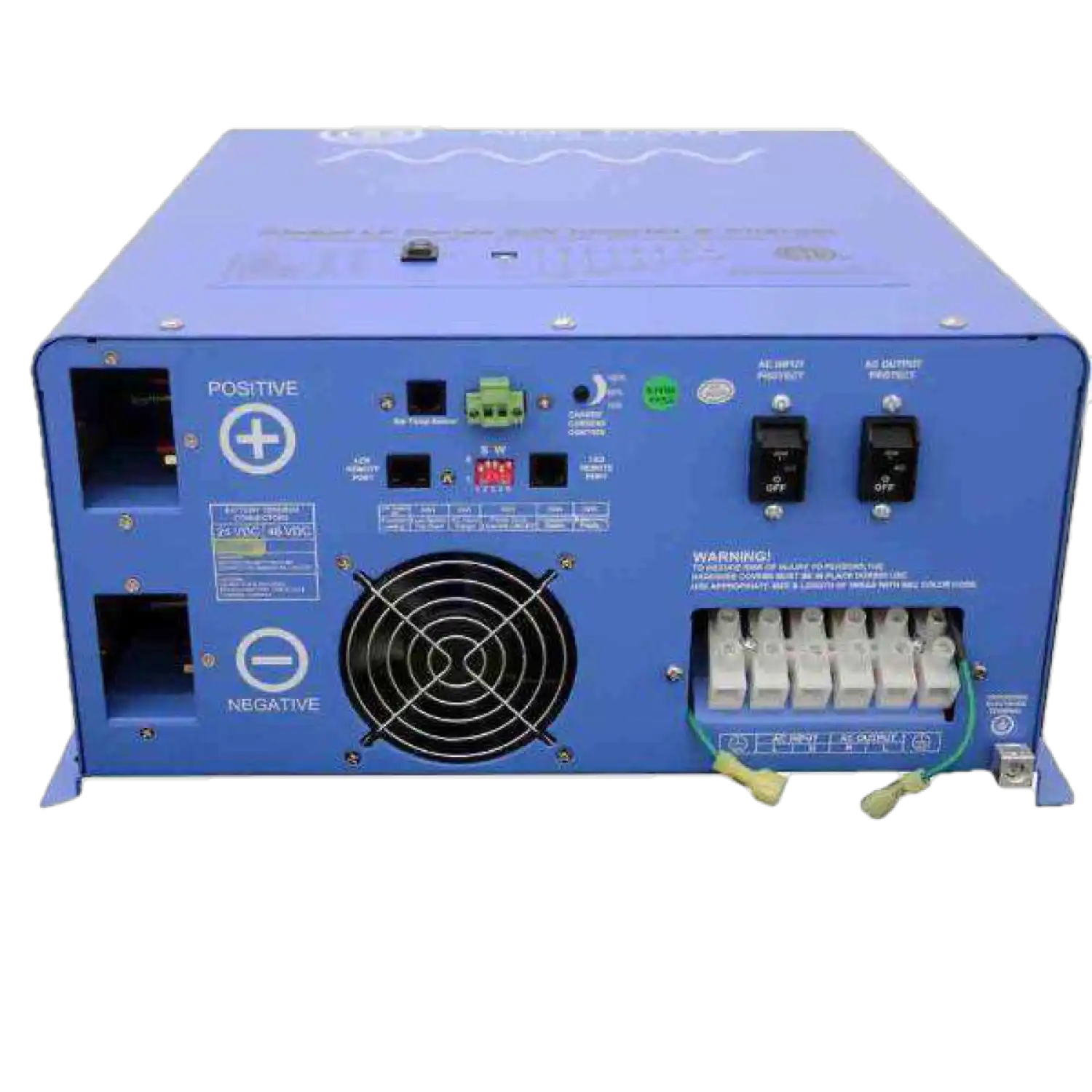

  • Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New
  • Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New
  • Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New
  • Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New
  • Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New
Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New

decrease quantity increase quantity
$ 2,260.00
+
shipping icon FREE Shipping
OR

bread
Pay Over Time

Select Bread as your payment at checkout

divider

in stock checkmarkIn Stock
truck icon
Special! Use the following coupon code at checkout for 2% off: AIMS25
Ships in (est) 1-2 business days

Extended Warranty

Factory Warranty
$0 ()

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
headset icon
Exceptional Customer Service
headset icon
Manufacturer Direct
Shopper Award
FactoryPure BBB Business Review
mcafee icon

Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New

Aims Power PICOGLF6024120UL 6000 Watt Pure Sine Inverter Charger ETL Listed to UL 458 New

share icon Share
X
AIMS Power 6000 Watt Pure Sine Low Frequency Inverter, single phase with built-in battery charger and transfer switch. This inverter charger is perfect for large-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.
Overview (Right Column)

Brand new in box

Manufacturer direct shipping

Factory Warranty Included

Authorized Aims Dealer


Features (Left Column)
  • 6000 Watt Low Frequency Inverter
  • 18000 Watt Surge For 20 Seconds 300% Surge Capability
  • 24 Volt DC
  • Single Phase 120Vac Output
  • Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2

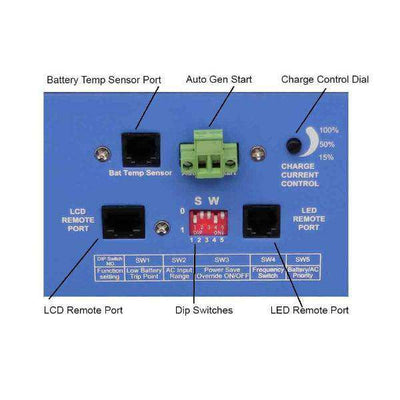

  • Battery Priority Selector
  • Terminal Block
  • Marine Coated and Protected
Features (Right Column)
  • Multi Stage Smart Charger 60 Amp Charges GEL, Lead, AGM, Lithium
  • Remote Panel Available LED or LCD
  • Auto Frequency
  • 10msec Typical Transfer Time
  • Selectable 25W Power Save Mode (hibernation)
  • 7 Battery Type Settings For Charger
  • Allows Start Up and Through Power With Depleted Batteries
Product Specifications (Left Column)
  • Continuous output power: 6000 Watts
  • Surge rating: 18000 Watts (20 Seconds)
  • Output waveform: Pure Sine/Same as input (Bypass Mode)
  • Output voltage: 100-110-120Vac
  • Output breaker: 80 Amps
  • Nominal efficiency: >88% (Peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (Max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
  • Nominal input voltage: 24.0Vdc
  • Minimum start voltage: 20.0Vdc
  • Low battery alarm: 21.0Vdc-22.0Vdc
  • Low battery trip: 20.0Vdc-21.0Vdc
  • High voltage alarm: 32.0Vdc
  • Low battery voltage restart: 26.6Vdc
  • Idle consumption: 52.5 watts
  • Idle consumption with power saver mode ON: <25 watts
  • Output voltage: Depends on battery Type
  • Charger rate: 60A
  • Over charge protection shutdown: 31.4V
  • Unit Weight: 108 lb.
  • Unit Size L x W x H: 19 x 16.5 x 8 inches
  • Transfer Switch: 80a
Product Specifications (Right Column)

Package Contents:

  • Aims Inverter
  • Owner's manual
WARRANTY
2 Year Manufacturer Warranty
