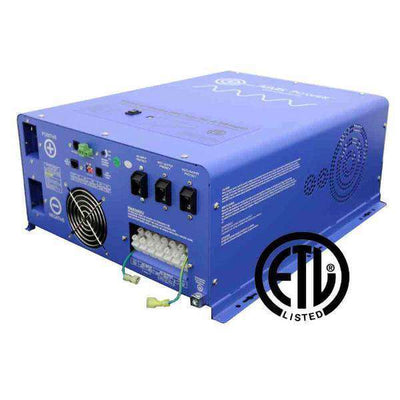

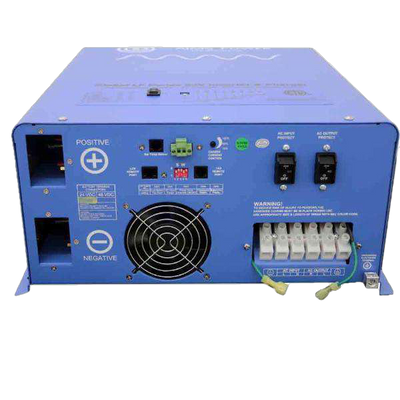

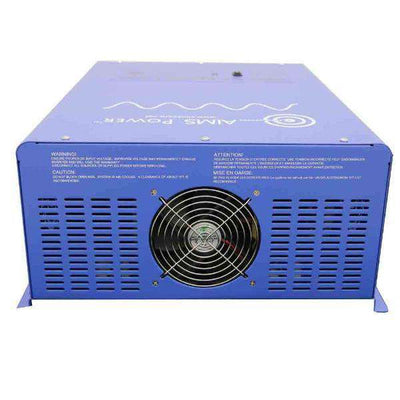

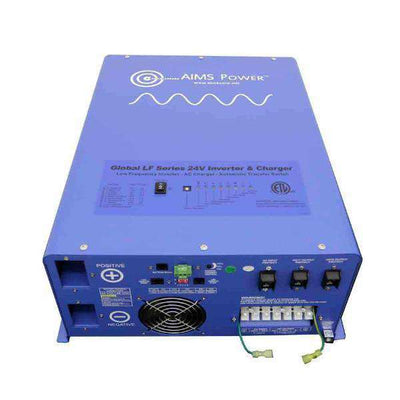

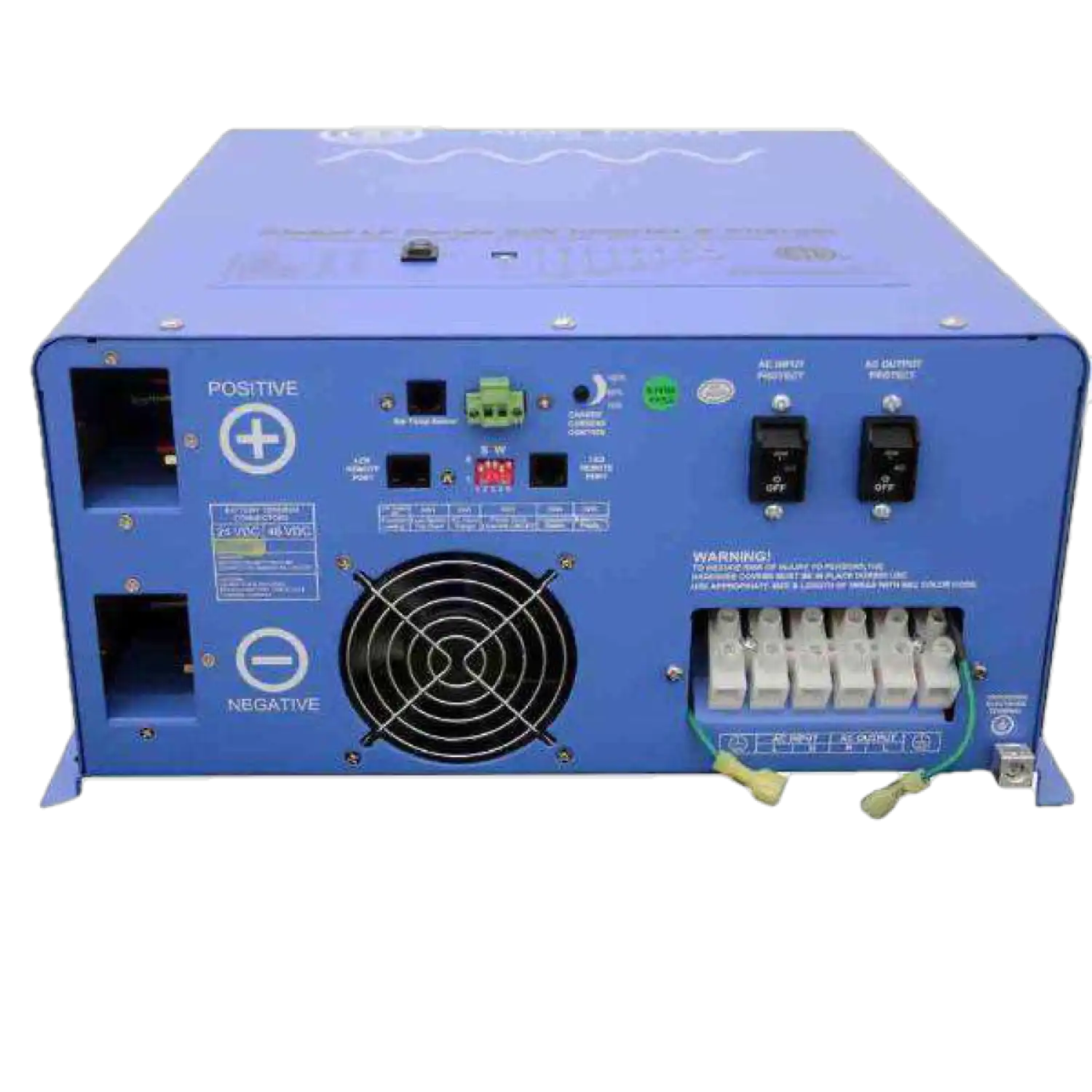

Aims Power 6000 Watt Pure Sine Inverter Charger
AIMS Power 6000 Watt Pure Sine Low Frequency Inverter, single phase with built-in battery charger and transfer switch. This inverter charger is perfect for large-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.
This AIMS power inverter charger includes a powerful 60 amp charger and is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension cord plugged into your wall outlet at home.
The 6000 watt inverter charger is capable of a 18000 watt surge for 20 seconds and can run at 6000 watts continuously. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at either 20 volts or 21 volts depending on your selection. With the battery priority mode, you can set your inverter to run directly off of a battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a power saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will “sleep” and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it.
An optional wired LED or LCD remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.
- 6000 watt low frequency inverter
- 18000 watt surge for 20 seconds 300% surge capability
- 24 Volt DC
- Single phase 120Vac output
- Listed to UL 458 and CSA 22.2
- Battery priority selector
- Terminal block
- Marine coated and protected
- Multi stage smart charger 80 Amp

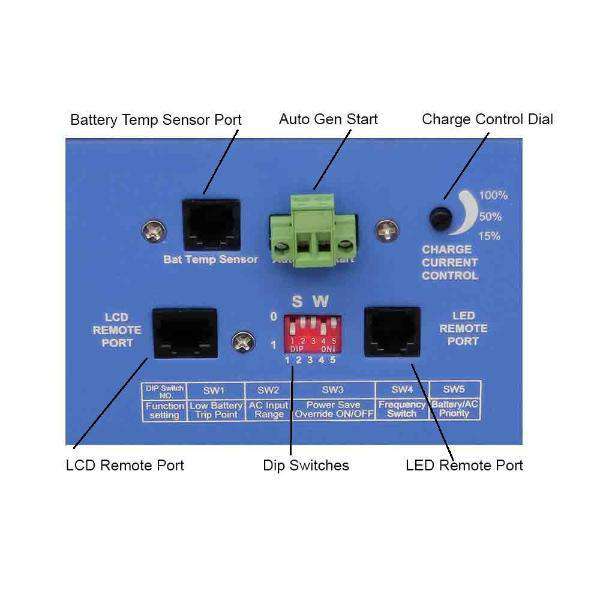

- Remote panel available LED or LCD
- Auto frequency
- 10msec typical transfer time
- Selectable 25W power save mode (hibernation)
- 7 battery type settings for charger
- Allows start up and through power with depleted batteries
- Continuous output power: 4000 Watts
- Surge rating: 12000 Watts (20 Seconds)
- Output waveform: Pure Sine/Same as input (Bypass Mode)
- Output voltage 100-110-120-220-230-240Vac
- Output breaker: 40 Amps
- Nominal efficiency: >88% (Peak)
- Line mode efficiency: >95%
- Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical transfer time: 10ms (Max)
- THD: < 10% DC
- Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
- Nominal input voltage: 24.0Vdc
- Minimum start voltage: 20.0Vdc
- Low battery alarm: 21.0Vdc-22.0Vdc
- Low battery trip: 20.0Vdc-21.0Vdc
- High voltage alarm: 32.0Vdc
- Low battery voltage restart: 31.0Vdc
- Idle consumption: 52.5 watts
- Idle consumption with power saver mode ON: <25 watts
- Output voltage: depends on battery Type
- Charger Rate: 80A
- Over charge protection shutdown 31.4V
- Selectable charge setting based on battery type
- Adjustable charge current: off-15%-100%
- Four stage smart charger
Transfer Switch Specifications:
- 80 amp automatic transfer switch
- 10 ms (max)
- Unit Weight: 108 lb.
- Unit Size L x W x H: 23.5 x 8.74 x 7.10 inches
- Shipping Weight: 113 lb
- Shipping L x W x H 30.5 x 14.25 x 13.75 inches
As an Aims Power authorized dealer, we offer a 2 year limited factory warranty on this item.
