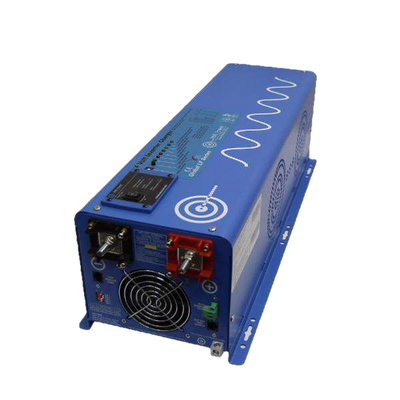

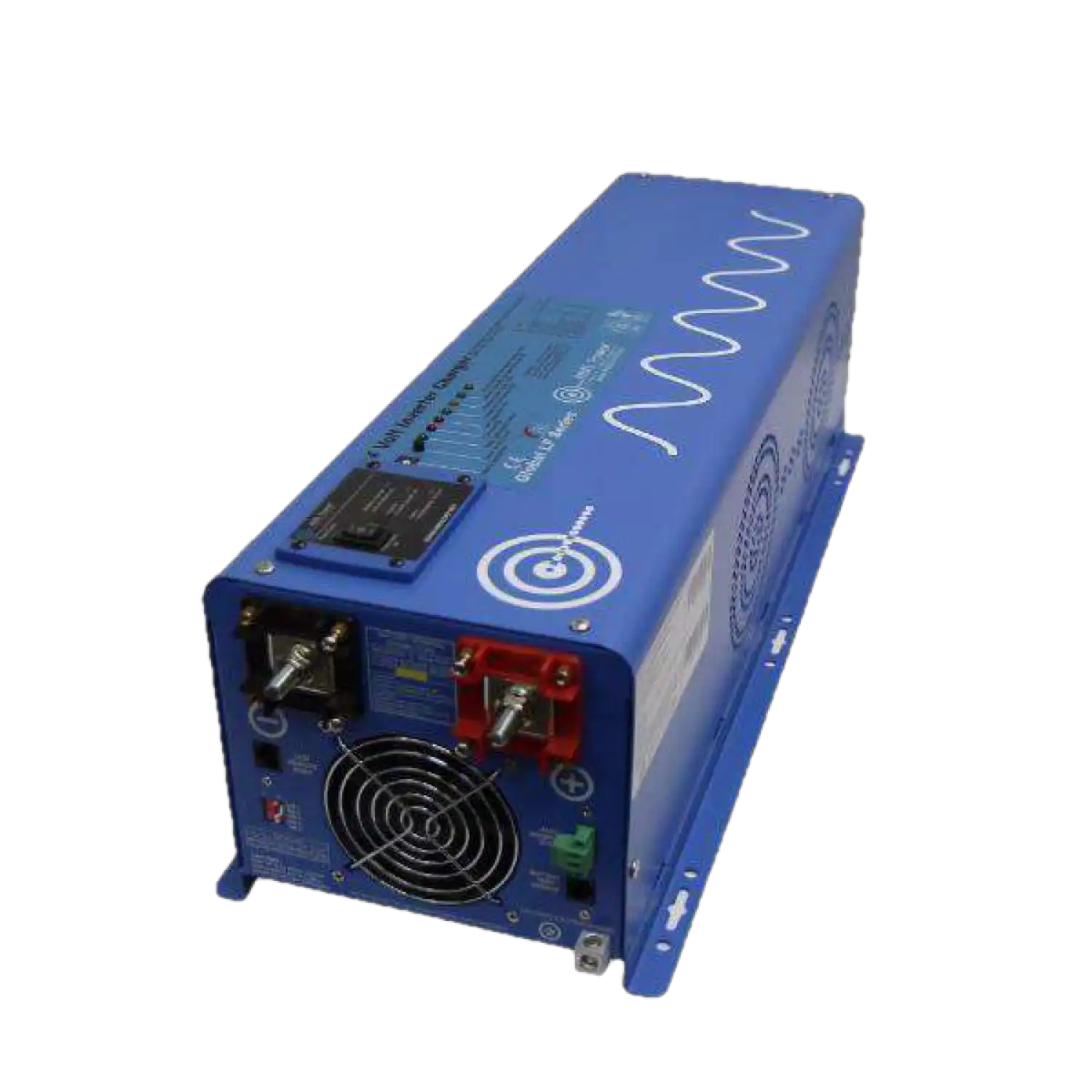

Aims Power PICOGLF60W24V240VS 6000 Watt Pure Sine Inverter Charger New
- Manufacturer: Aims Power
- SKU: PICOGLF60W24V240VS
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
|Brand new in box|
|Manufacturer direct shipping|
|1 year limited manufacturer's warranty|
|Authorized Aims Power dealer|

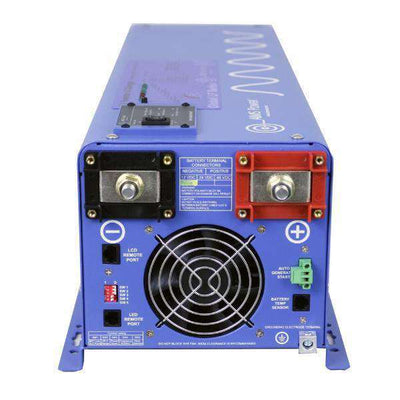

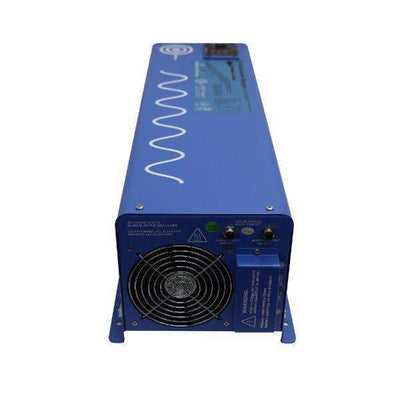

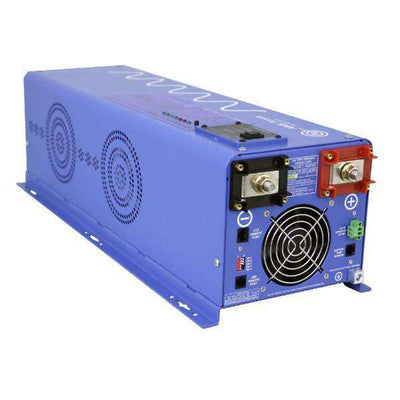

Aims Power 6000 Watt Pure Sine Inverter Charger
Combine this solar inverter charger with a deep-cycle battery bank for off-grid, mobile, and emergency backup power.
The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 18000 watts with the power to run many tools and appliances with a startup surge, such as refrigerators, freezers, microwaves and blow dryers.
If you’re looking for an inverter with similar capabilities but a lower wattage capacity, check out the 2000 watt low frequency AIMS Power inverter charger.
Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110/120 OR 220/230/240 volts of alternating current. The inverter accepts 24 volts DC, which makes it great for vehicle upfitting as well as boat and RV applications that use a 24-volt battery system. The inverter outputs 120/240 volts AC.
The marine-coated or conformal-coated boards also make this inverter great for mobile applications, as it protects the product from dust or water vapor that may be present in the air.
A low-frequency label has been given to this inverter because of the lowered level of total harmonic distortion (THD) produced during the DC to AC inversion process. This allows for a cleaner transfer of energy, which increases efficiency, and it also provides a quieter performance.
This inverter will also run power tools like most electric chainsaws, portable grinders, shop vacs, and more.
This 6000-watt inverter charger produces a pure sine wave, which some appliances require for use. It can run laserjet printers, computers, televisions, CPAP machines, and other medical equipment.
During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing.
Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.
Other popular applications for this inverter include powering lights and other appliances in an off-grid cabin, providing electricity for a mobile business or mobile office, and running camping equipment.
- 6000 watt low frequency inverter 110/220Vac Split Phase
- 18000-watt surge for 20 seconds -3x surge capability
- Battery Priority Selector

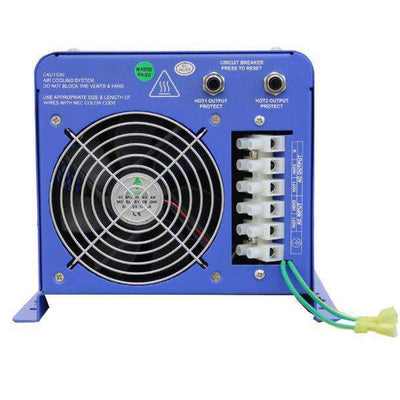

- Terminal Block
- Marine Coated and Protected
- Multi-Stage Smart charger 85 Amp
- remote panel available
- auto frequency
- 10msec typical transfer time
- selectable 25W power save mode (hibernation)
- 8 battery charger settings
Inverter Output Specifications:
- Continuous Output Power: 6000 Watts
- Surge Rating: 18000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
- Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
- Nominal Input Voltage: 24.0Vdc
- Low Battery Alarm: 21.0Vdc-22.0Vdc
- Low battery Trip: 20.0Vdc-21.0Vdc
- High Voltage Alarm: 32.0Vdc
- Low battery Voltage Restart: 31.0Vdc
- Idle Consumption: 76.8 Watts
- Idle Consumption in Power Saver Mode: 29 Watts
- Output voltage: Depends on battery Type
- Charger Rate: 85A
- Unit Weight: 79 lbs.
- Unit Size L x W x H: 23.5 x 8.5 x 7.0 inches
- Shipping Weight: 84 lbs.
- Shipping L x W x H 30.5 x 14.5 x 13.75 inches
As an Aims Power authorized dealer, we offer a 1 year limited factory warranty on this item.
