Aims Power PICOGLF60W48V120V 6000 Watt Pure Sine Inverter Charger New
- Model: Aims Power
- SKU: PICOGLF60W48V120V
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
|Brand new in box|
|Manufacturer direct shipping|
|1 year limited manufacturer's warranty|
|Authorized Aims Power dealer|

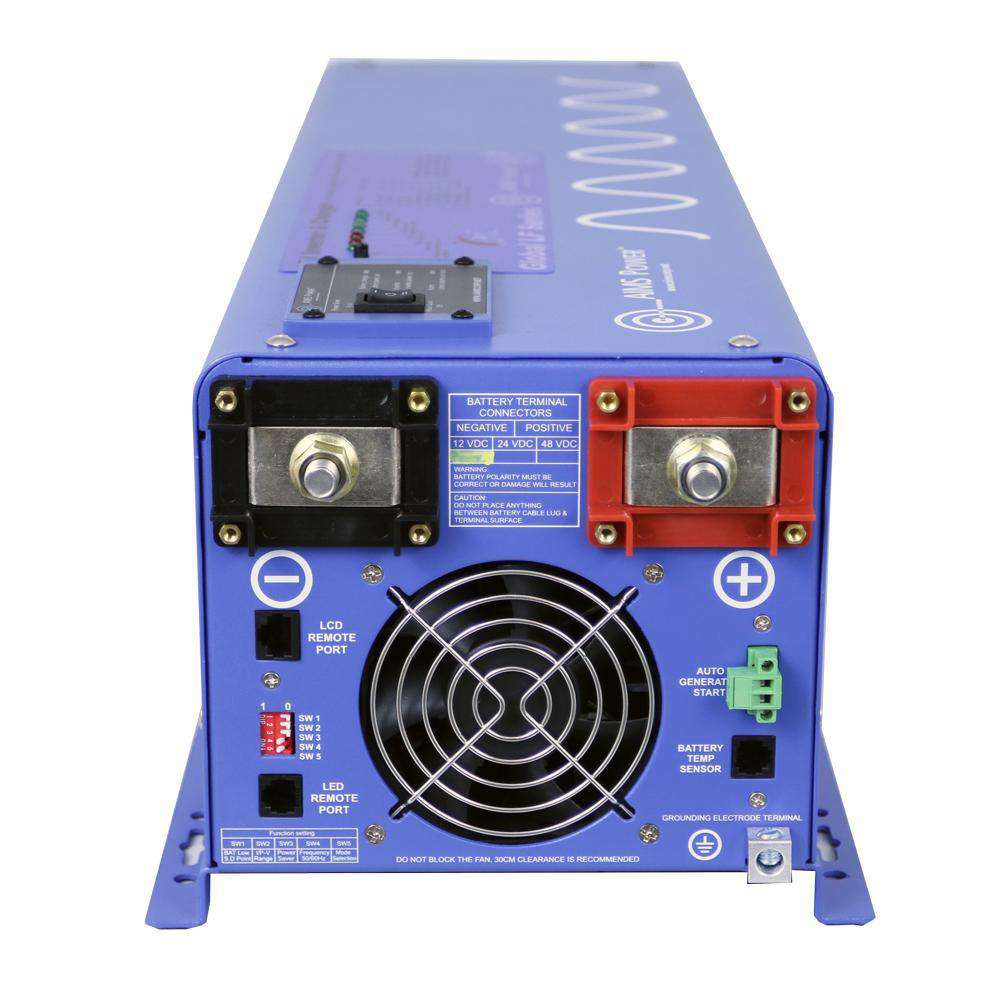

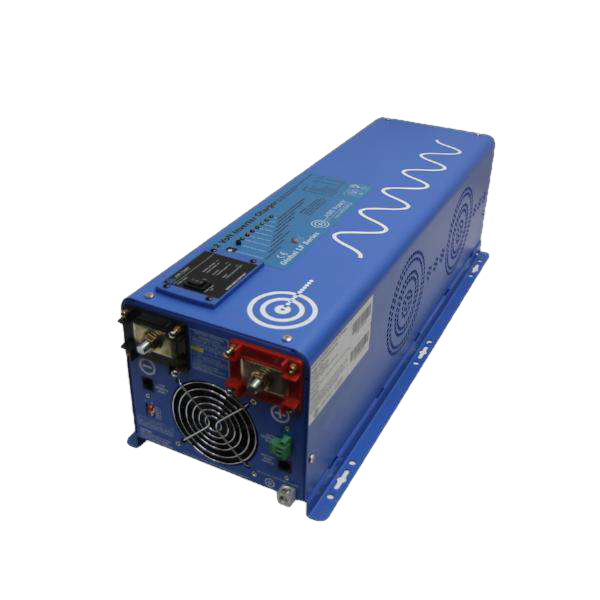

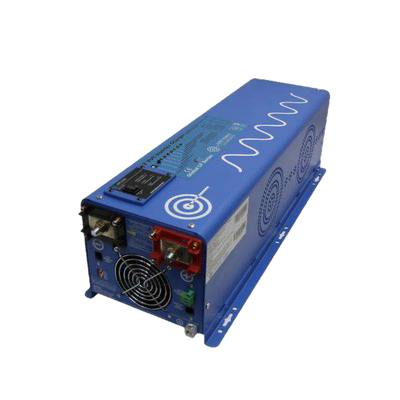

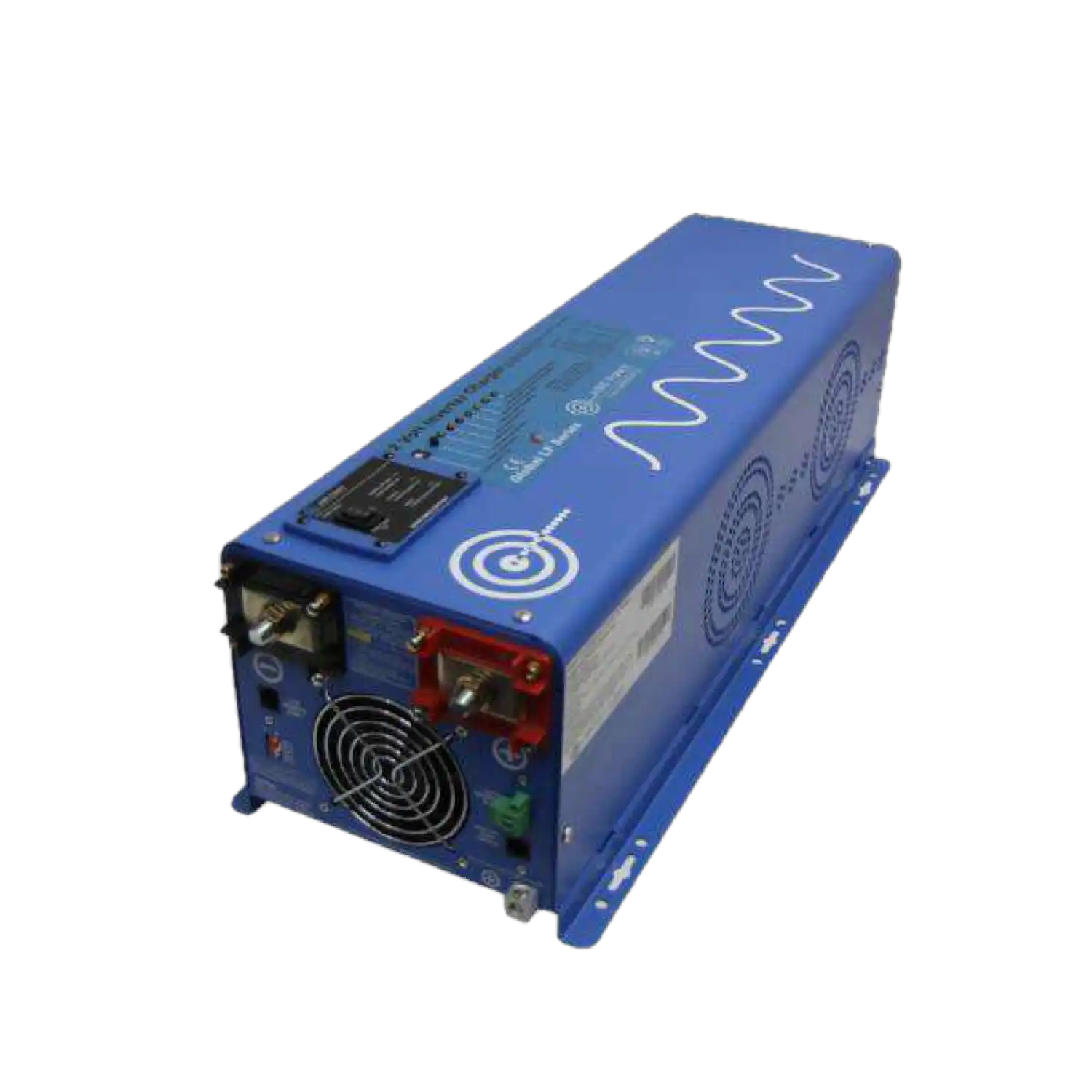

Aims Power 6000 Watt Pure Sine Inverter Charger
When you purchase a low-frequency inverter charger from AIMS Power, you’re getting our top-of-the-line product offering. The unit is repairable, and we stand behind it with a free one-year warranty and tech support.
Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using 12 or 24 volts, which can be an attractive feature for sustainability lovers looking to live as efficiently as possible.
This inverter will output 120 Vac, and it can output 50 or 60Hz via the SW4 switch on the DC side of the product. This means the inverter works internationally and is operable with nearly any electrical system on the planet!
If you need a similar inverter with a bit more power, try our new 8000 watt low frequency inverter charger.
This AIMS Power inverter is perfect for nearly any job, because it can handle even the most rugged conditions. It’s built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it’s protected from humidity or dust and dirt by virtue of its marine-coated or “conformal-coated” boards. This inverter provides the reliability needed in any business or residential emergency backup power applications.
Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere.
- 6000-watt low-frequency inverter 110 Vac Single Phase
- 18000-watt surge for 20 seconds -3x surge capability
- Battery Priority Selector
- Terminal Block
- Marine Coated and Protected
- Multi-Stage Smart charger 80 Amp
- remote panel available
- 60hz or 50 Hz selectable dip switch
- 10msec typical transfer time
- optional 25W power save mode
- 7 battery type settings for the charger
Inverter Output Specifications:
- Continuous Output Power: 6000 Watts
- Surge Rating: 18000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
- Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
- Nominal Input Voltage: 48.0Vdc
- Low Battery Alarm: 42.0Vdc-44.0Vdc
- Low battery Trip: 40.0Vdc-42.0Vdc
- High Voltage Alarm: 64.0Vdc
- Low battery Voltage Restart: 62.0Vdc
- Idle Consumption: 4.16 amps DC
- Power Saver Mode Idle Consumption: <0.83 amps DC
- Output voltage: Depends on battery Type
- Charger Rate: 60A
- Unit Weight: 79 lbs.
- Unit Size L x W x H: 23.5 x 8.5 x 7.0 inches
- Shipping Weight: 84 lbs.
- Shipping L x W x H 30.5 x 14.5 x 13.75 inches
As an Aims Power authorized dealer, we offer a 1 year limited factory warranty on this item.
