Aims Power PWRINV250012W 2500 Watt Power Inverter New
Manufacturer: Aims Power
SKU: PWRINV250012W
QTY
(888) 999-1522
$ 264.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer

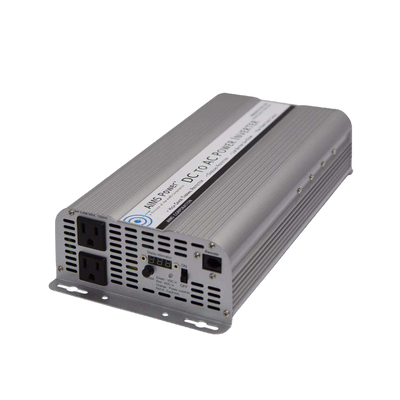

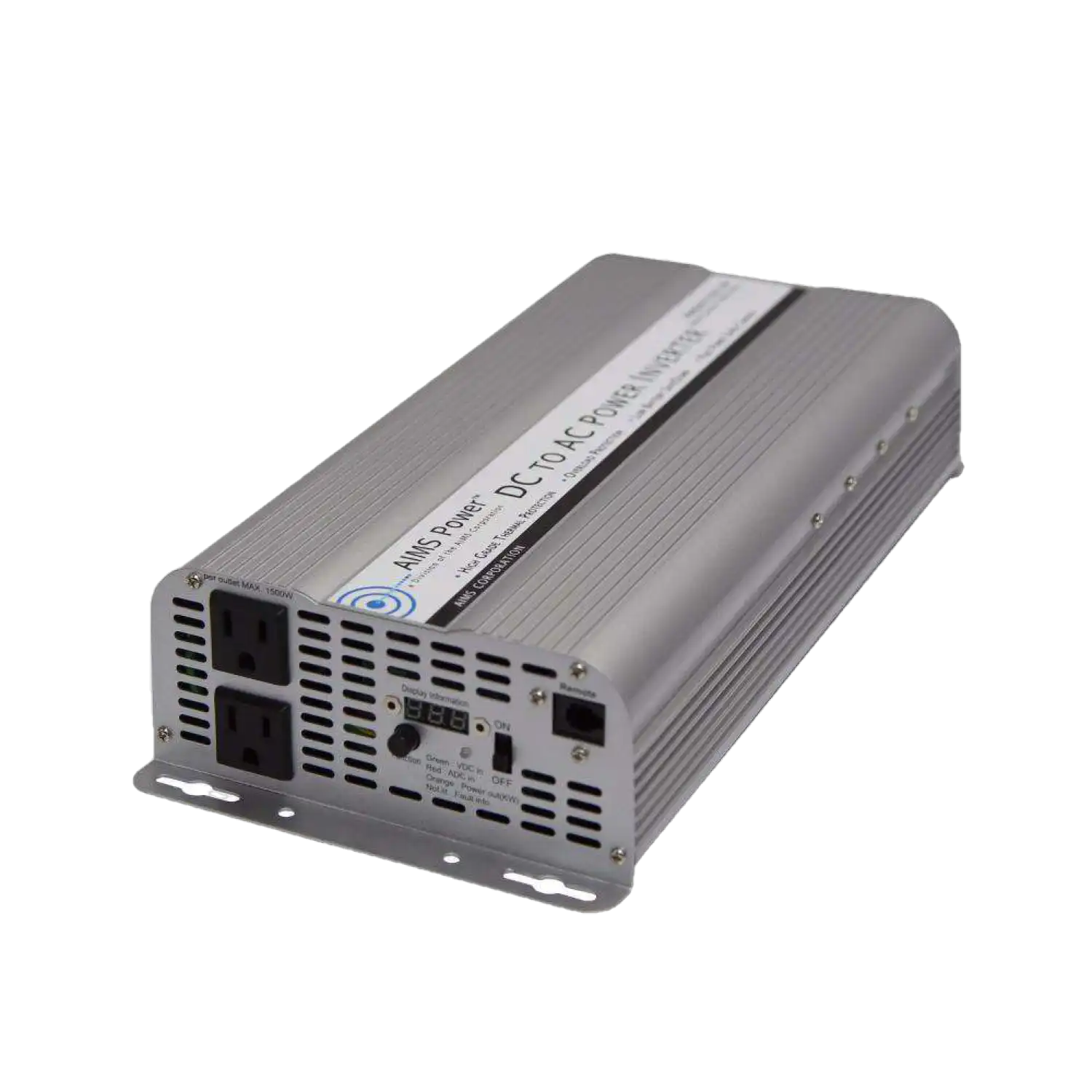

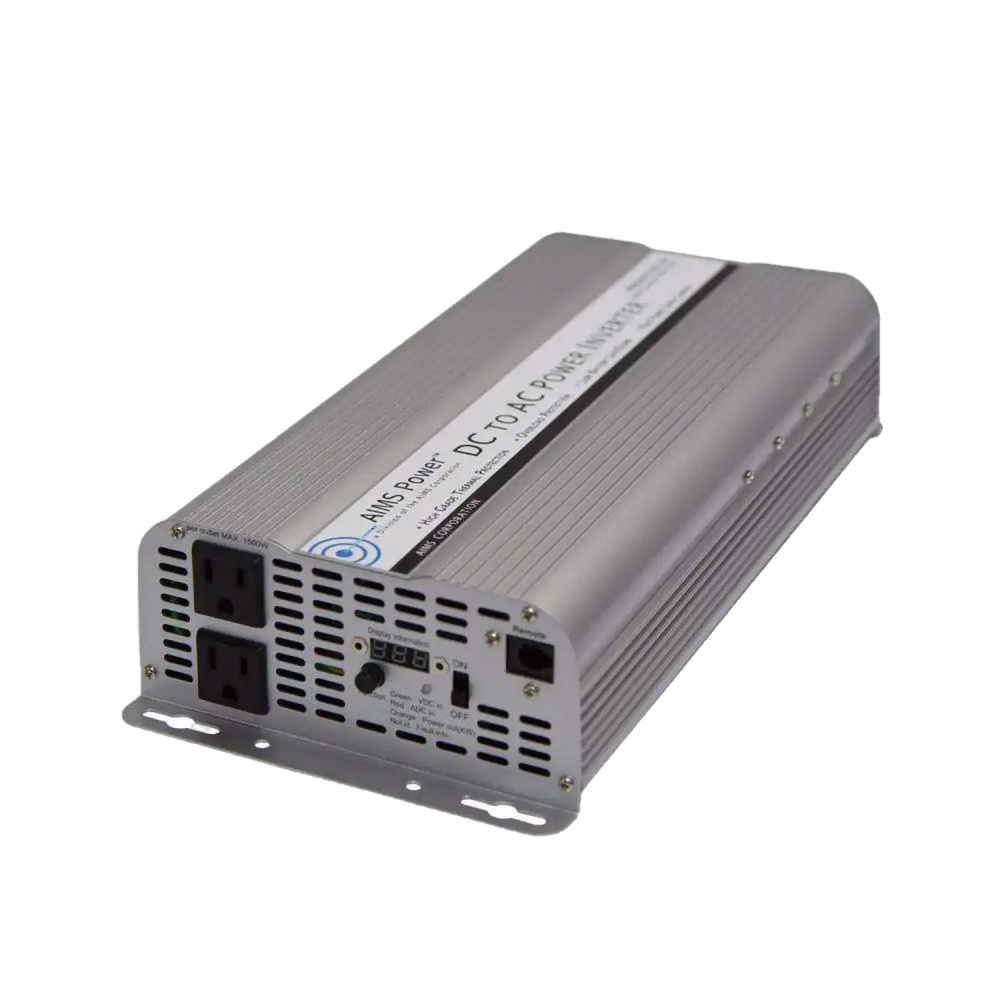

Aims Power PWRINV250012W 2500 Watt Power Inverter New
Product Overview
The 2500-Watt 12-Volt AIMS Power Inverter converts DC (direct current) power stored by deep-cycle batteries into AC (alternating current) electricity. This 2500-watt inverter produces a modified sine wave capable of running most tools and appliances. Use this product for off-grid, mobile and emergency backup power for lights, fans and space heaters as well as to operate coffee makers, charge electronic devices and much more. Because it can run off most vehicle, RV and boat standard 12-volt power system, this inverter is very popular with mobile business owners. They don't have to modify their vehicles' standard power system to run the inverter in their truck or car.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 2500Watt Max Continuous Power
- 12 Volt Power Inverter
- Modified Sine Wave
- Volt Meter to Monitor Your Battery Voltage
- Amp Meter To Monitor Your Current Use (rate at which battery is drained)
- Over Temperature LED Indicator
- Over Load LED Indicator
- 2 AC Receptacles (UL rated 1500 watts max per an outlet)
- On/Off Switch
- Over Temperature Protection
- Over Load Protection Single Cooling Fan Operation Thermally Controlled Internally Fuse Protected AC Output Short Circuit Protection
- Auto Reset On Most Fault Conditions
- Aluminum Case for Optimal Cooling
- Pre-Wired For Remote On/Off Switch
- Pre-Slotted Mounting Plate
Specifications
| Continuous Output Power | 2500 Watts |
| Surge Power Capability (peak power) | 5000 Watts |
| DC Input/Operating Voltage | 10.5 to 17 Volts |
| Output Voltage | 120 Volts AC +/- 10% |
| Output Wave Form | Modified Sine Wave With Phase Correction |
| Output Frequency | 60 Hz +/- 1 Hz |
| Battery Low Voltage Alarm | 10.5 +/- 0.5 Volts |
| Battery Low Voltage Shutdown | 10 +/- 0.5 Volts |
| No Load Current | < 0.2 Amps |
| Full Load Efficiency | 90% |
| 1/3 Load Efficiency | 95% |
| No Load Minimum Operating Temperature | -15 degrees Celsius |
| Full Load Maximum Operating Temperature | 55 +/- 5 degrees Celsius (automatic shutdown) |
| AC Output Socket Type | Quadruple Type 2 -3 prong |
| High Input Voltage Protection | 17 volts |
| Low Input Voltage Shutdown | 10 volts |
| Internal Fuse Protection | Yes |
| Product Size (L x W x H) | 14.5”X 6.5”X 3.0 |
| Weight | Unit 10 lbs |
| UL Maximum Recommended Per Outlet | 1500W |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
