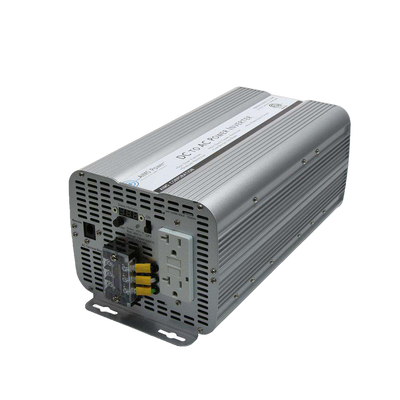

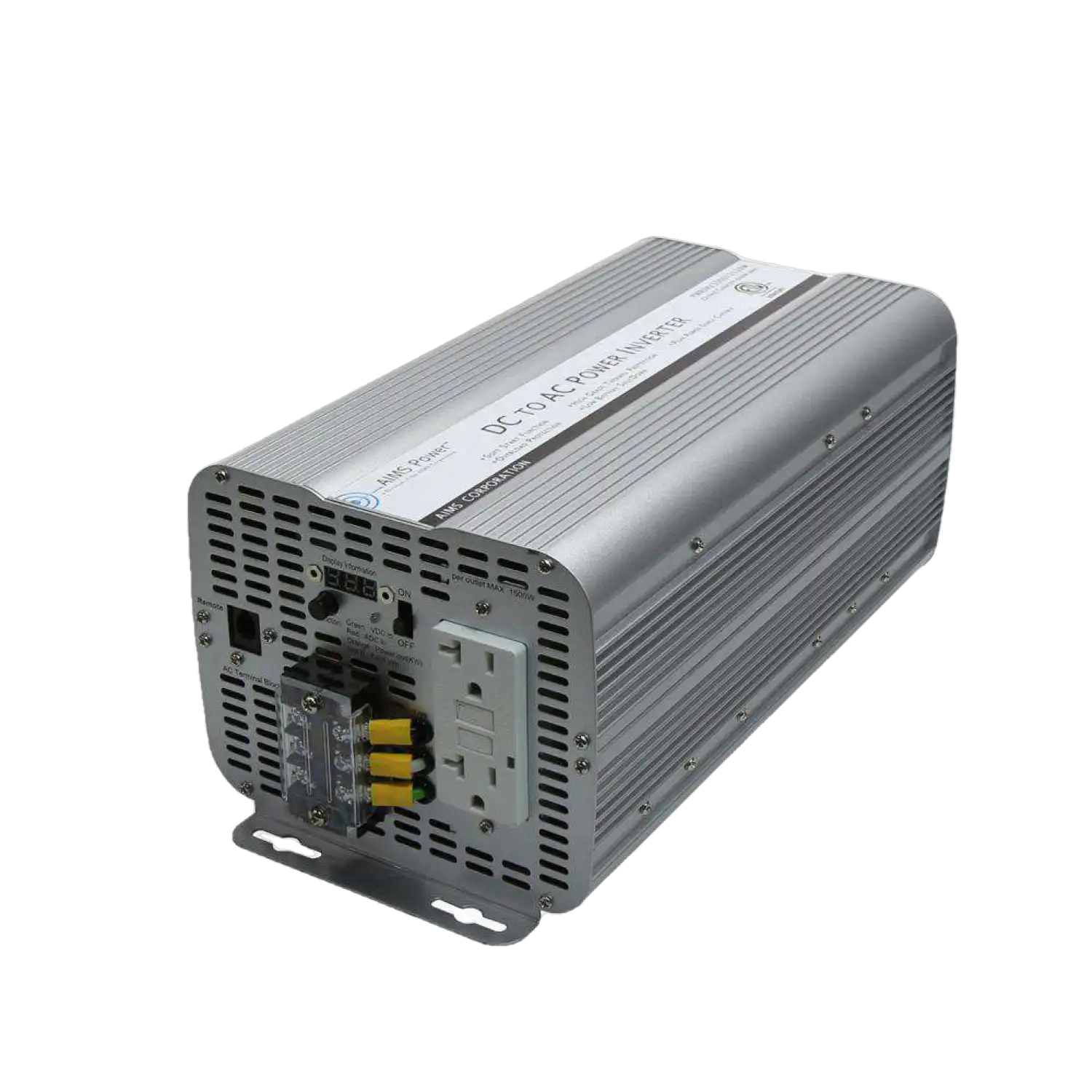

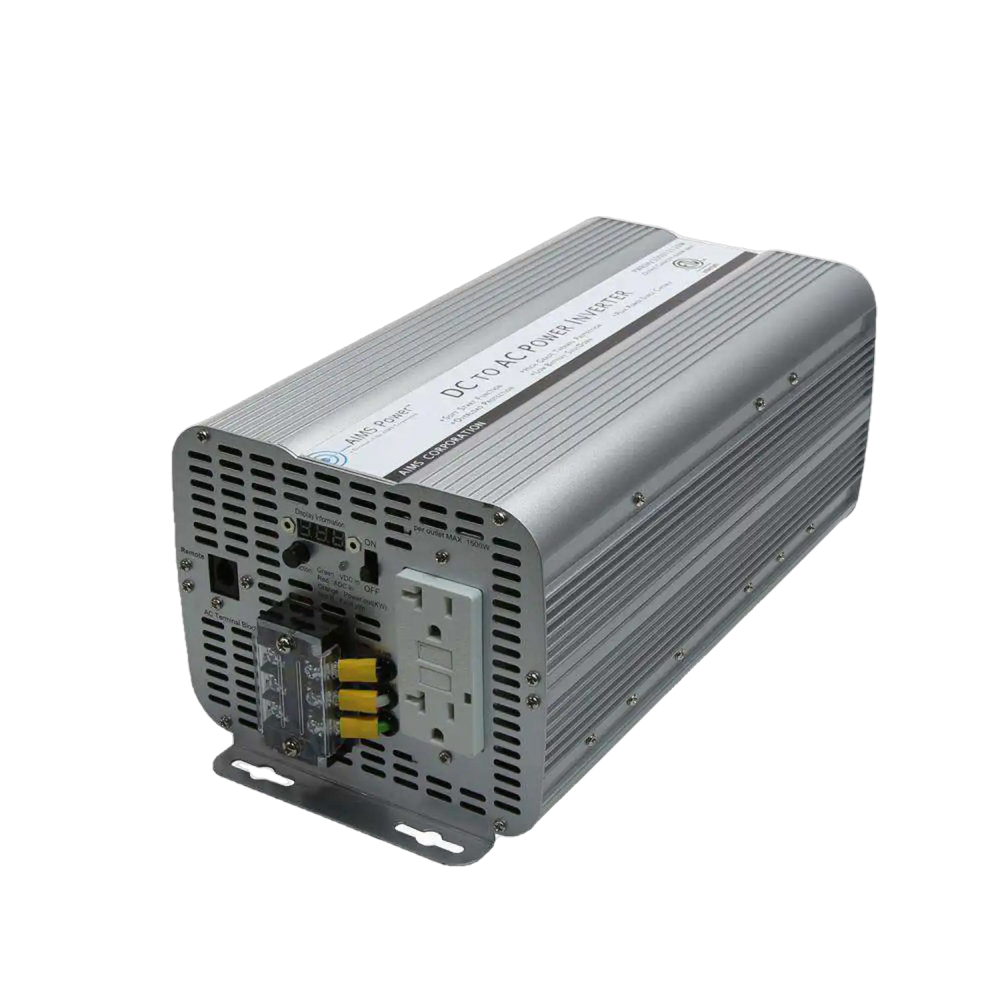

Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New

Manufacturer: Aims Power

SKU: PWRINV360012120W

  • Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New
  • Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New
  • Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New
  • Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New
  • Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New
  • Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New

QTY

$ 380.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

tags

ON SALE!

truck icon

Special! Use the following coupon code at checkout for 2% off: AIMS25 COPY

Ships in (est) 1-2 business days

Extended Warranty

×

Factory Warranty

  • 2 Year Manufacturer Warranty

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

$0

(Included)

  • 2 Year Manufacturer Warranty

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$59.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$89.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New

Aims Power PWRINV360012120W 3600 Watt UL458 Listed Power Inverter New

Product Overview

This 3600 Watt Modified Sine Inverter has a few unique features. First, the unit is ETL Listed and conforms to UL 458 Standards. The AIMS 3600 Watt also conforms to CSA Standard C22.2 No. 107.1-01. Canada. At AIMS Power, we listen to our customers and as a result, AIMS designed this 3600 Watt UL listed modified sine inverter with our customers in mind. AIMS has produced a high quality unit that is also available in two other sizes 2000 and 3000 watts. It features a 20 amp GFCI outlet which is exactly like the outlets you find in your bathroom and are able to be reset if they "pop" for safety.  This inverter also has a direct connect AC terminal block, which delivers the full 3600 watts to a single source. The compact design is lightweight and durable, taking up less space in your work environment.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

Manufacturer direct shipping

checkmark

Factory Warranty Included

checkmark

Authorized Aims Dealer

Features

  • 3600W Max Continuous Power
  • Modified Sine Wave
  • Digital Display
  • LED Monitoring Lights
  • Dual GFCI Outlet

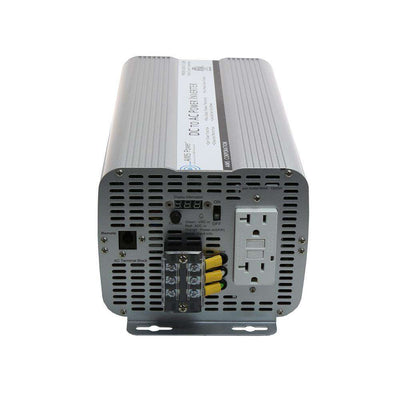

  • AC Direct Connect Terminal Block
  • Over Temperature Protection
  • Over Load Protection
  • Thermal Cooling Fan Operation
  • Internally Fuse Protected
  • AC Output Short Circuit Protection
  • Aluminum Case For Optimal Cooling
  • Pre-slotted Mounting Plate

Specifications

Continuous Output Power 3600 Watts
Surge Power Capability (peak power) 7200 Watts
DC Input/Operating Voltage 10 to 15 Volts
Output Voltage 120 Volts AC
Output Frequency 60 Hz +/1 .5 Hz
Battery Low Voltage Alarm 10.5 +/- 0.5 Volts
Battery Low Voltage Shutdown 10.0 +/- 0.5 V
No Load Minimum Operating Temperature 25 degrees F
Full Load Maximum Operating Temperature 140 degrees F (automatic shutdown)
Efficiency 90%
No Load Draw <2.0A
AC Amps 30
DC Amps 300
AC Output Socket Type Dual GFCI and AC direct connect terminal
High Input Voltage Protection 15V
Low Input Voltage Shutdown 10V
Internal Fuse Protection Yes
Product Size (L x W x H) 14.5 X 6.62 X 5.6
Weight Unit
ETL Listed to UL458 Standards CSA 22.2

Package Contents

Aims Inverter

Owner's manual

Warranty
