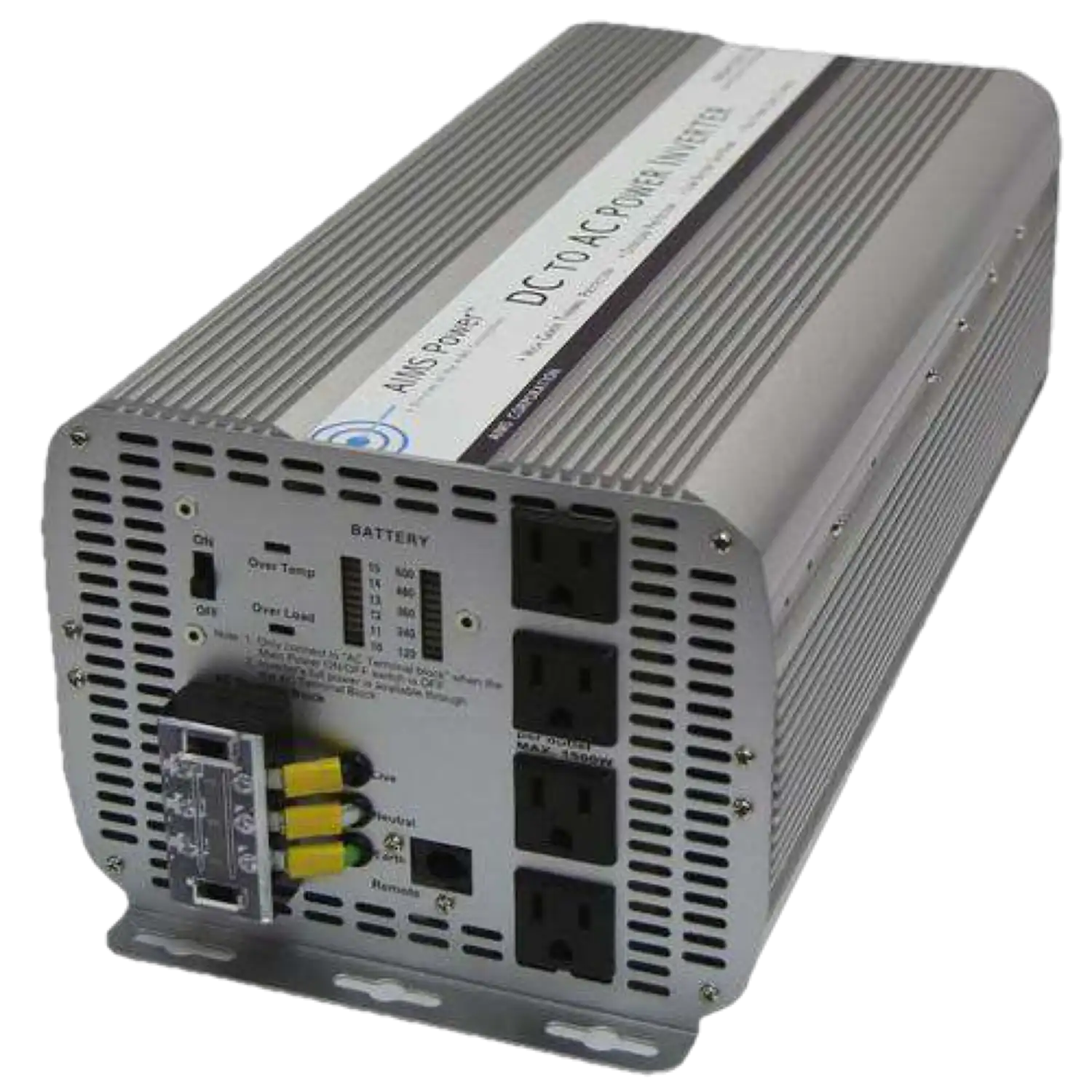

Aims Power PWRINV500012W 5000 Watt Power Inverter New

Manufacturer: Aims Power

SKU: PWRINV500012W

Aims Power PWRINV500012W 5000 Watt Power Inverter New
Aims Power PWRINV500012W 5000 Watt Power Inverter New
Aims Power PWRINV500012W 5000 Watt Power Inverter New



Aims Power PWRINV500012W 5000 Watt Power Inverter New
Aims Power PWRINV500012W 5000 Watt Power Inverter New
Aims Power PWRINV500012W 5000 Watt Power Inverter New

QTY

$ 459.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

This 5000-watt 12-volt power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity. You can use this powerful AIMS 5000-watt inverter to run practically any household appliances or tools. This unit produces a modified sine wave capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, in your cabin or on your boat. This 5000-watt power inverter is perfect for larger solar systems or anywhere that doesn't have city power. What really makes this 5000-watts power inverter special is its capability to run off most vehicles' standard power systems at 12 volts. That also makes it a simple solution for RVs and boats. This inverter is very attractive to mobile business owners because users don't have to modify a vehicle's standard power system to run the inverter. This will definitely save you some money if you are upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.
vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

Manufacturer direct shipping

checkmark

Factory Warranty Included

checkmark

Authorized Aims Dealer

Aims Power PWRINV500012W 5000 Watt Power Inverter New

Aims Power PWRINV500012W 5000 Watt Power Inverter New

Features

  • 5000W Max Continuous Power
  • Modified Sine Wave

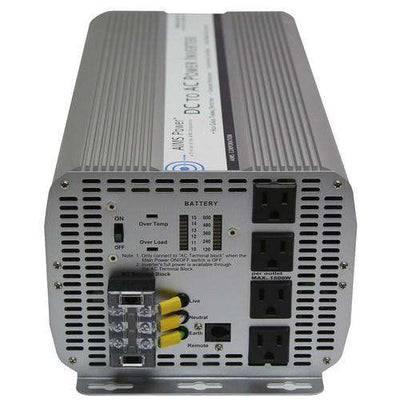

  • Volt Meter on Front Panel to Monitor Your Battery Voltage
  • Amp Meter on Front Panel to Monitor Your Current Use (rate at which battery is drained)
  • AC Direct Connect Terminal
  • Over Temperature LED Indicator
  • Over Load LED Indicator
  • Quadruple AC Receptacle That Can Be Used With Any Separate Splitter to Provide Even More Outlets
  • On/Off Switch
  • Over Temperature Protection
  • Over Load Protection
  • Single Cooling Fan Operation Thermally Controlled
  • Internally Fuse Protected
  • AC Output Short Circuit Protection
  • Auto Reset on Most Fault Conditions
  • Aluminum Case For Optimal Cooling
  • Pre-Wired for Remote On/Off Switch
  • Pre-Slotted Mounting Plate

Specifications

Continuous Output Power5000 Watts
Surge Power Capability (peak power)10000 Watts
DC Input/Operating Voltage10 to 15 Volts
Output Voltage120 Volts AC +/- 10%
Output Wave FormModified Sine Wave with Phase Correction
Output Frequency60 Hz +/- 1 Hz
Battery Low Voltage alarm10.5 +/- 0.5 Volts
Battery Low Voltage Shutdown10.0 +/- 0.5 Volts
No Load current< 0.6 Amps
Full Load Efficiency90%
1/3 Load Efficiency95%
No Load Minimum Operating Temperature-15 degrees Celsius
Full Load Maximum Operating Temperature55 +/- 5 degrees Celsius (automatic shutdown)
AC Output Socket TypeQuadruple Type 2 -3 Prong
High Input Voltage Protection15V-17V
Low Input Voltage Shutdown10V
Internal Fuse ProtectionYes
Product Size (L x W x H)16.92”X 7.95”X 6.1”
Weight18 lb.
UL Maximum Recommended per Outlet1500W

Package Contents

Aims Inverter

Owner's manual

Warranty

vendor logo
divider
authorized dealer

1 Year Manufacturer Warranty

Manuals & Documentation

Customer Reviews (3)

Customer Reviews

05/29/2020
David Berthel
Aims 5000W

Put 2-12VDC wired in parallel to get the most power from inverter. Works great

01/16/2020
Dale Martin
Aims 5000 watt inverter

I've had it one month so far no problems works very well

07/03/2019
Jonathan Royer
Aims power inverter

Excellent unit...
