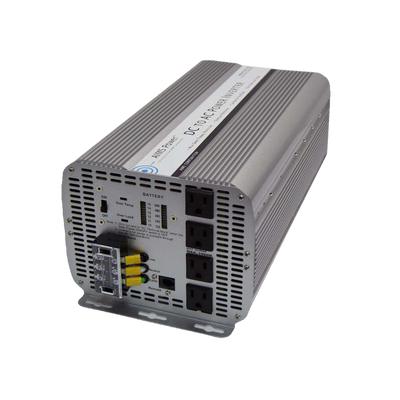

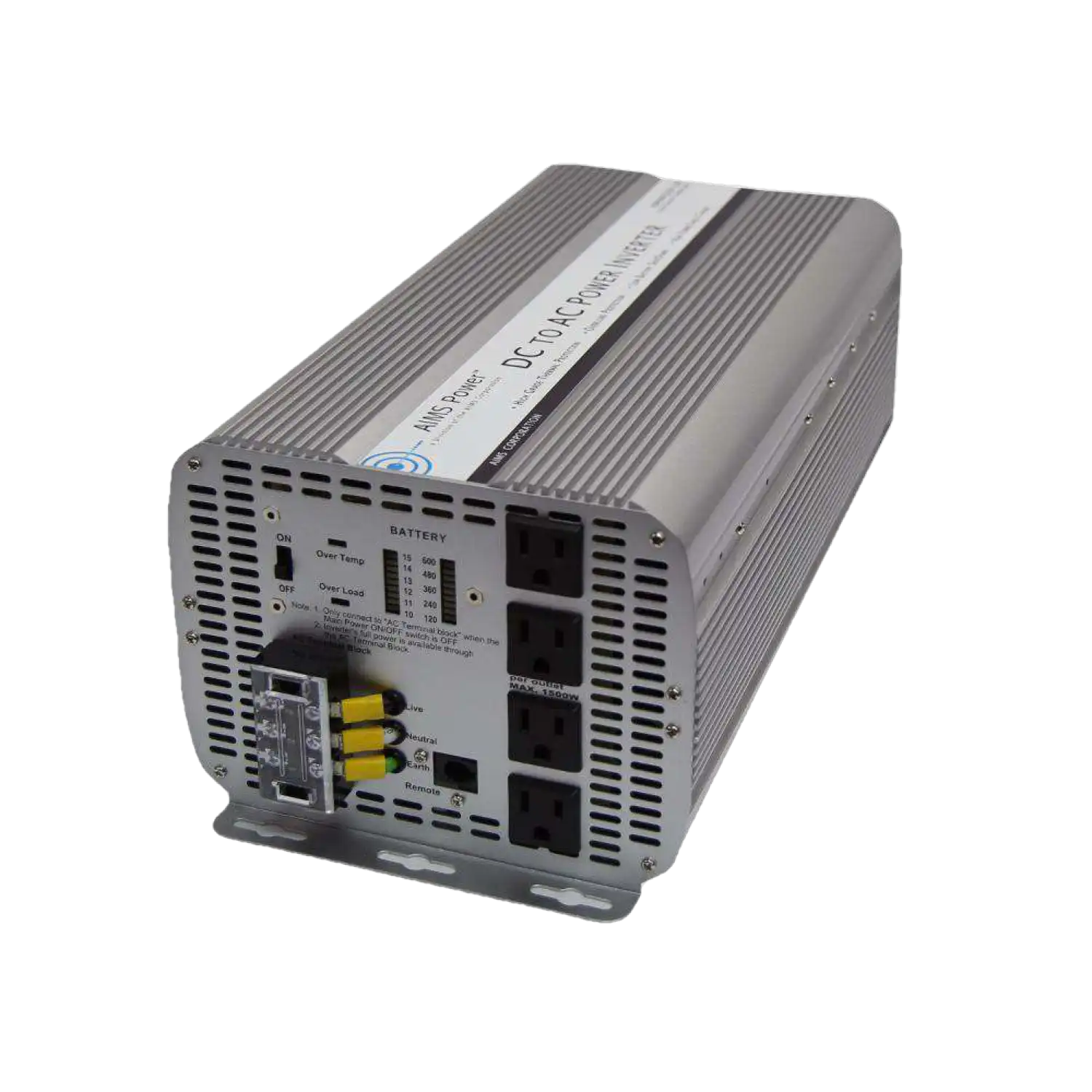

Aims Power PWRINV500036W 5000 Watt 36 Volt Inverter
This 5000 watt 36 Volt DC power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools.
This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, larger solar systems or anywhere that doesn't have city power.
What really makes this 5000 watt AIMS Power inverter special is its capability to run off at 36 volt DC which allows for more efficiency at higher loads. This makes the inverter very attractive to users using a 36 volt DC source or multiple batteries.
The biggest incentives for using inverters for electricity include the fact that they make little-to-no noise, making for a more peaceful environment for customers, and that they’re non-polluting, which makes for a great green-energy marketing campaign.
The unit features two easily-accessible AC outlets with a maximum output of 1500 watts. The 200 percent surge capabilities of this unit should only be used as a safety feature. Other safety features include over-temperature and over-load LED indicators that are used as a warning system for the operator. Also on the AC side of the unit are the battery voltage and amperage meters which display the usage levels of your battery bank. This inverter is equipped with dual cooling fans and over-temperature protection that keeps it from overheating.
- 5000 Watt max continuous power
- 36 Volt Power Inverter
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED indicator
- Over Load LED indicator
- Quadruple ac receptacle that can be used with any separate more split to provide even more outlets
- On/off switch

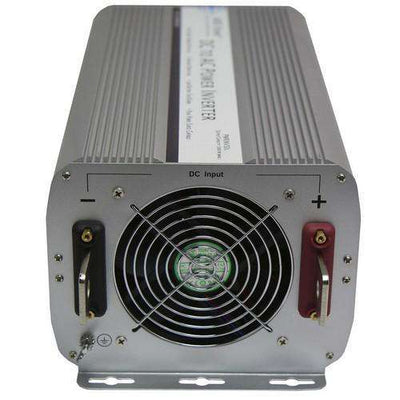

- Over Temperature protection
- Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- Continuous output power: 5000 Watts
- Surge power capability (peak power): 10,000 Watts
- dc input / operating voltage: 30 to 48 Volts
- Output voltage: 120 Volts ac +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 31 +/- 0.5 Volts
- Battery low voltage shutdown: 28 +/- 0.5 Volts
- No load current: < 0.9 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
- AC Output Socket Type: quadruple Type 2 -3 prong
- High input voltage protection: 48 volts
- Low input voltage shutdown: 28 volts
- Internal fuse protection
- Product size (L x W x H): 16.92”X 7.95”X 6.10”
- Weight: unit 16.72 lbs boxed 20 lbs
- UL maximum recommended per outlet 1500W
As an Aims Power authorized dealer, we offer a 1 year limited factory warranty on this item.
