Aims Power PWRINV500048W 5000 Watt 48 volt Inverter New
Manufacturer: Aims Power
SKU: PWRINV500048W
QTY
(888) 999-1522
$ 632.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer

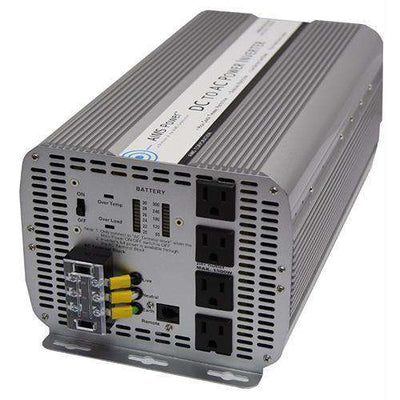

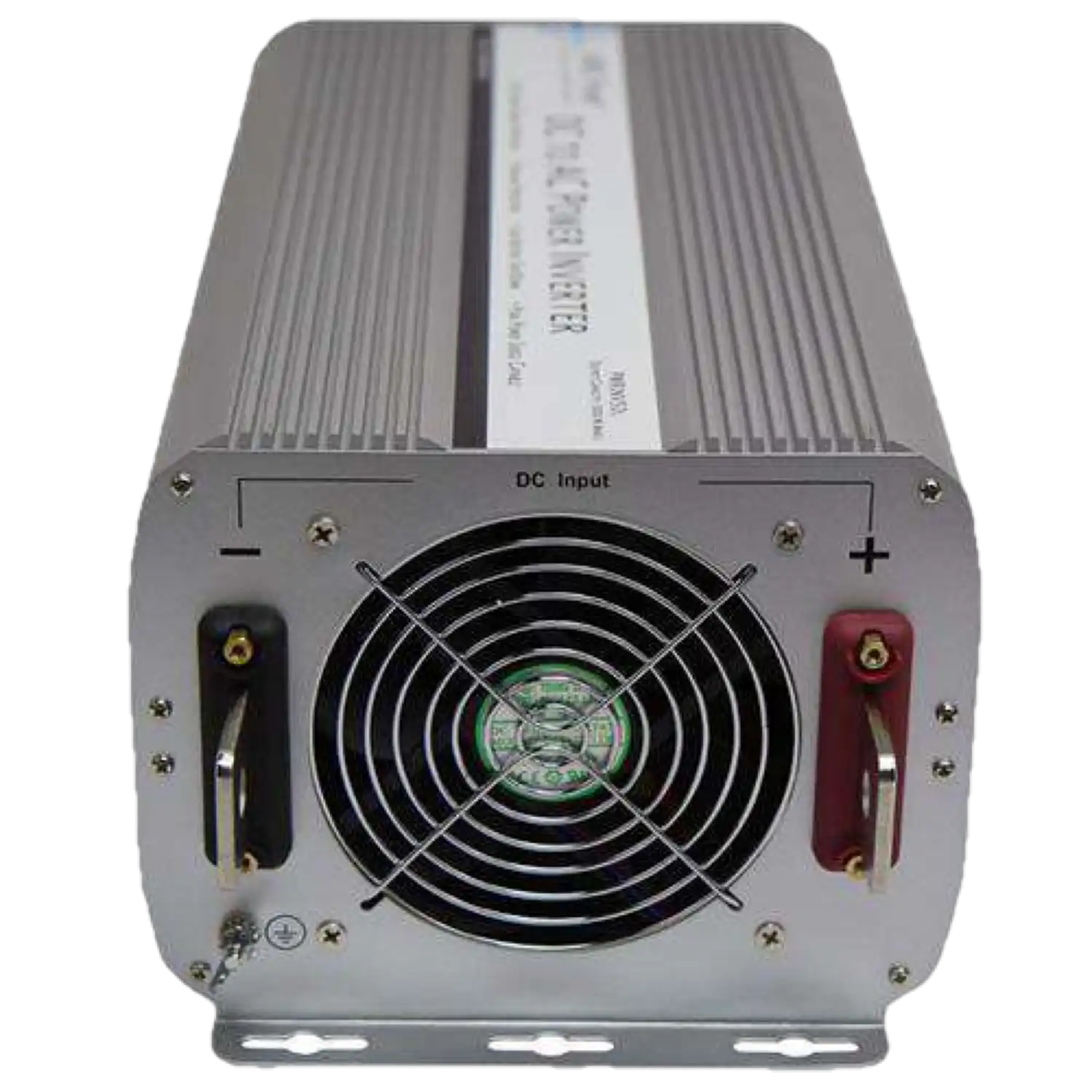

Aims Power PWRINV500048W 5000 Watt 48 volt Inverter New
Product Overview
This 5000 watt 48 Volt DC power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools. This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, larger solar systems or anywhere that doesn't have city power. What really makes this 5000 watt AIMS Power inverter special is its capability to run off at 48 volt DC which allows for more efficiency at higher loads. This makes the inverter very attractive to users using a 48 volt DC source or multiple batteries.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 5000 Watt Max Continuous Power
- 48 Volt Power Inverter
- Modified Sine Wave
- Volt Meter on Front Panel to Monitor Your Battery Voltage
- Amp meter on Front Panel to Monitor Your Current Use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED Indicator
- Over Load LED Indicator
- Quadruple AC Receptacle
- On/Off Switch
- Over Temperature Protection
- Over Load Protection
- Single Cooling Fan Operation Thermally Controlled
- Internally Fuse Protected
- AC Output Short Circuit Protection
- Auto Reset on Most Fault Conditions
- Aluminum Case for Optimal Cooling
- Pre-wired For Remote On/Off Switch
Specifications
| Continuous Output Power | 5000 Watts |
| Surge Power Capability (peak power) | 10,000 Watts |
| DC Input/Operating Voltage | 39 to 64 Volts |
| Output Voltage | 120 Volts ac +/- 10% |
| Output Wave Form | Modified Sine Wave with phase correction |
| Output Frequency | 60 Hz +/- 1 Hz |
| Battery Low Voltage Alarm | 40 +/- 0.5 Volts |
| Battery Low Voltage Shutdown | 38 +/- 0.5 Volts |
| No Load Current | < 0.2 Amps |
| Full Load Efficiency | 90% |
| 1/3 Load Efficiency | 95% |
| No Load Minimum Operating Temperature | -15 degrees Celsius |
| Full Load Maximum Operating Temperature | 55 +/- 5 degrees Celsius (automatic shutdown) |
| AC Output Socket Type | Quadruple Type 2 -3 Prong |
| High Input Voltage Protection | 64 volts |
| Low Input Voltage Shutdown | 38 volts |
| Internal Fuse Protection | Yes |
| Product Size (L x W x H) | 16.93”X 7.95”X 6.10” |
| Weight | Unit 16.72 lbs |
| UL Maximum Recommended Per Outlet | 1500W |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
