Product Overview

1200 Pure Sine Inverter with Transfer Switch - ETL Certified to conform to UL 458 standards. This inverter is ideal for built-in RV refrigerators or other appliances. Easy to install. The inverter will switch between shore power and battery power without any extra wires. Many RV'ers and mobile businesses like to use residential size refrigerators and this is the perfect solution. Smaller microwaves and coffee pots are also common uses for this inverter. One of the standards of UL 458 is that all AC inverters pass a High Voltage Dielectric Withstand Test, commonly called the Hi-Pot Test. The voltage applied to the control is usually equal to 1,000 volts, plus two times the line voltage rating of the inverter. Therefore, the standard hi-pot voltage for 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested before it leaves the factory, with a UL Certified hi-pot tested, set to the voltages shown above.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

Manufacturer direct shipping

checkmark

Factory Warranty Included

checkmark

Authorized Aims Dealer

Aims Power PWRIX120012SUL 1200W Pure Sine with Transfer Switch - Hardwire UL Listed New

Aims Power PWRIX120012SUL 1200W Pure Sine with Transfer Switch - Hardwire UL Listed New

Features

  • Pure Sine Wave
  • Conforms to UL458

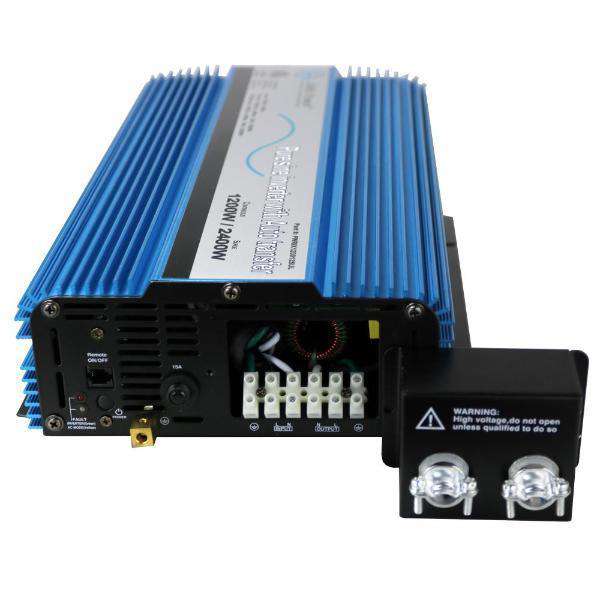

  • Hard Wire Direct Connect Terminal Block
  • 1200 Watt Continuous Power
  • 2400 Watt Surge
  • Bypass When The Inverter Is Off or On
  • Over Voltage Shutdown
  • Under Voltage Shutdown
  • Intelligent Cooling Fan
  • Automatic Transfer Switch 10 amps
  • Conformal Coated for Marine Applications
  • Remote Switch Available
  • Less Than 20msec Typical Transfer Time

Specifications

Built In Transfer Switch 10 Amp Transfer
DC Input Voltage 10-16V
AC Input Voltage 120VAC +/-10%
Output Voltage 120VAC, 60HZ
Efficiency 86-90%
Over Voltage Shutdown 16VDC +/- .5V
Under Voltage Shutdown 10VDC +/- .5V
Under Voltage Alarm 10.3VDC +/- .3V
Over Temp Protection 150 degrees F +/- 5 degrees F
Thermal Fan Yes
Direct Connect Terminal Block Yes
L x W x H 17.25 x 9.31 x 3.8
Unit Weight 10.2 lbs

Package Contents

Aims Inverter

Owner's manual

Warranty
