Product Overview

ARC-200DC is a professional Stick Arc with Lift-TIG welding machine using the advanced inverter technology. The welding power source can provide a stronger, more concentrated and more stable arc. When the stick and work-piece become shorter, the response will be faster. This means it is easier to design it as a welding machine with different dynamic characteristics, and it can even be adjusted as needed to make the arc softer or harder.

vendor logo
divider
authorized dealer
checkmark

1 year limited factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Amico Electric out of CA

checkmark

Authorized Amico Electric dealer

Amico Electric ARC-200DC 100V/250V 200 Amp Stick Arc and Lift TIG Combo Welder New

Amico Electric ARC-200DC 100V/250V 200 Amp Stick Arc and Lift TIG Combo Welder New

Features

  • ARC-200DC is a professional Stick Arc and Lift-TIG combo welding machine with an industrial level design. It is compatible with all electrodes: E6010, E6011, E6013, E7014, E7018, etc. The machine has an excellent Lift-TIG arc welding function; 10-200A comfortably welds thin stainless steel and other various metals.
  • Automatic selection feature detects input voltage automatically, allowing you to easily switch between 100-250V/50-60Hz input powers. Almost all of the voltages and frequencies can be used. Adjustable arc force settings allow you to meet your custom welding needs.
  • Incorporates advanced IGBT inverter technology with superior arc characteristics and has excellent arc stability. 80% duty cycle at 200 amps ensures long time welding and the machine can still work normally with an extended power cord up to 700 feet. The power cord can resist power fluctuations and cable attenuation at any length.
  • ARC-200DC has very powerful functions, making it easy to start and use. The machine has a built-in hot start function, anti-stick function, thrust adjustment function, current-intensity control function, and automatic compensation for voltage fluctuations: over-voltage protection, under-voltage protection, over-current protection, and over-load protection.
  • ARC-200DC Stick Arc with Lift-TIG can achieve the perfect weld. It is a welding machine of the highest level; the strength of its components makes it a reliable work tool for professionals or individuals. Package includes 7 feet of power cord, 10 feet of 300-Amp electrode holder assembly, 10 feet of 300-Amp grounding clamp assembly, and a 230V to 110V power adapter.

Specifications

Model ARC-200DC
Rated Input Voltage AC 100V-250V
Frequency 50Hz & 60Hz
Rated Input Power 230V/8.7KVA/37.9A & 115V/4.4KVA/38.5A
Current Range 230V/10-200A & 115V/5-150A
Force Current 230V/1-50A & 115V/1-15A
Rated Duty Cycle 230V/80%@200A & 115V/80%@150A
Nominal DC Open Circuit Voltage 85-Volt
Usable Electrode 230V/1/16-1/4 in. & 115V/1/16-5/32 in.
Power Factor 0.93
Dimension 17.0 x 7.5 x 12.0 in.
Net Weight 17.0 lbs.
Packaging Size 18.97 x 10.12 x 13.27 in.
Packaging Weight 23.26 lbs.

Package Contents

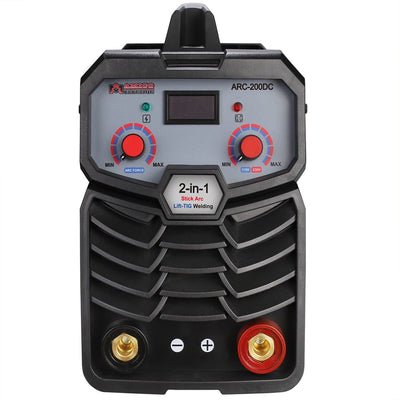

ARC-200DC Pro. Stick Arc Welding Machine

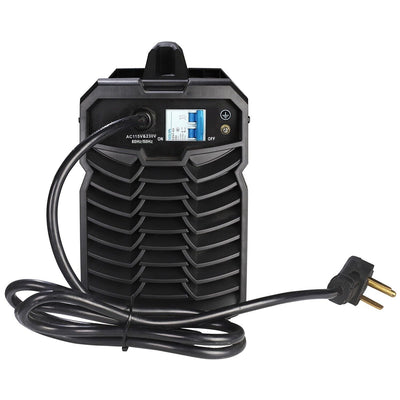

7-feet Power Cord & 6-50P Plug (on the machine)

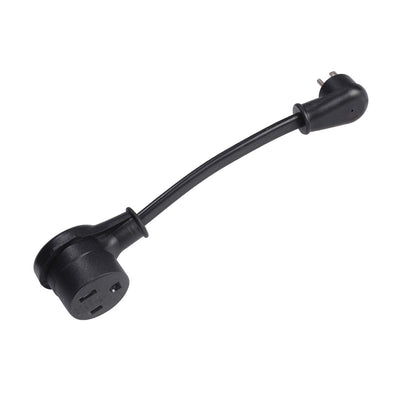

230V to 110V Power Adapter

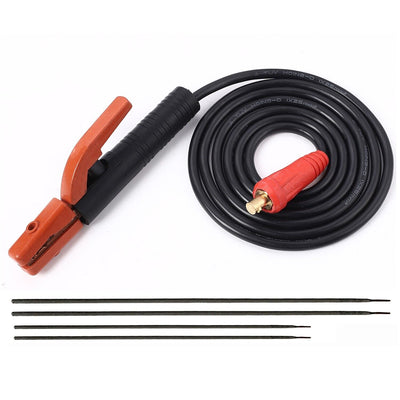

300A Electrode Holder, 10-feet Cable, 35-50mm Connect

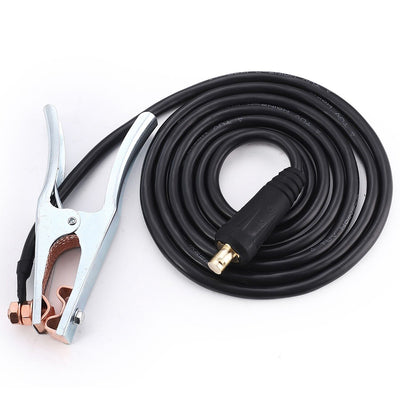

300A Work Clamp, 10-feet Cable, 35-50mm Connect

4 Pieces Electrode of 5/32 in. & 1/8 in.

Owner’s Manual

Warranty
