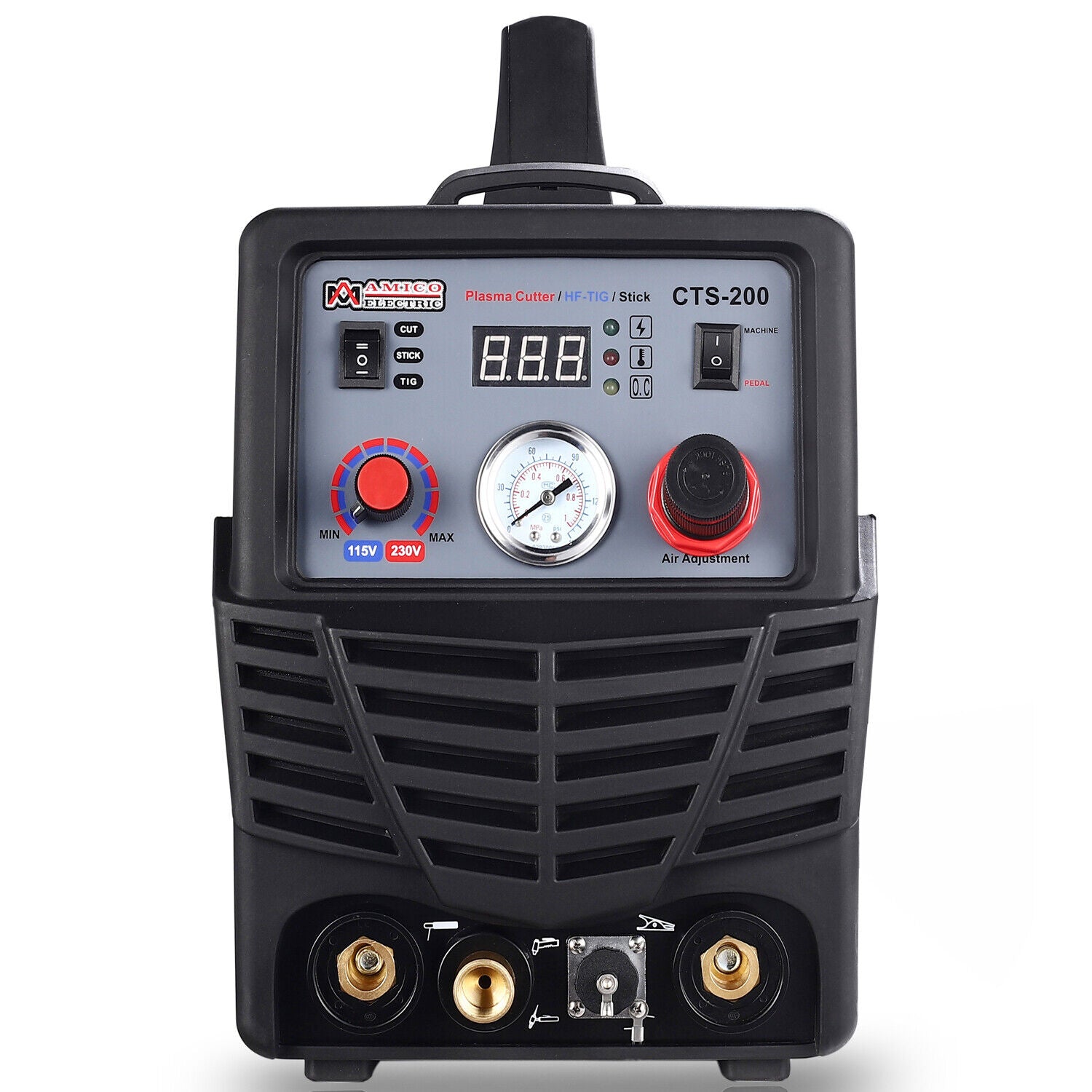

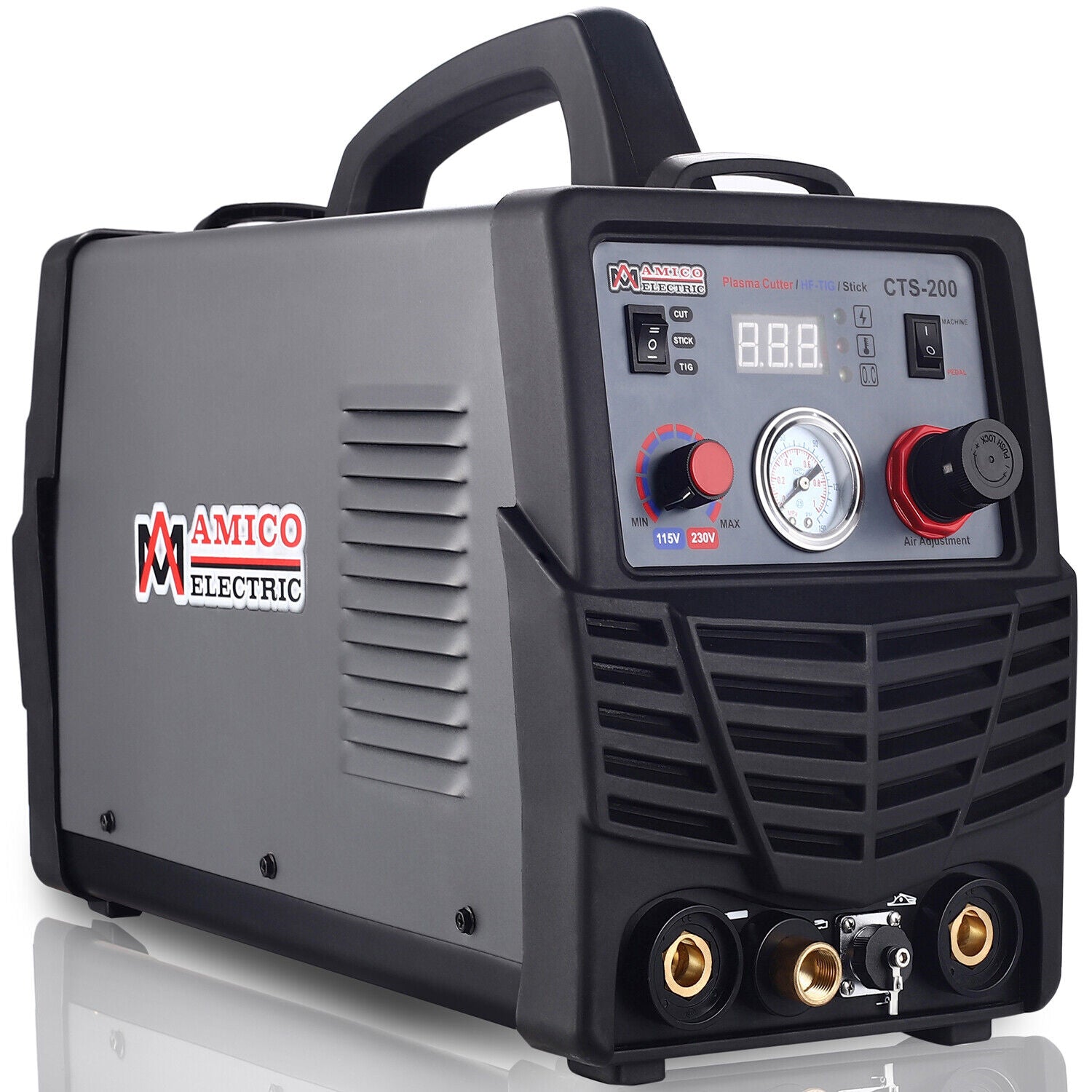

Amico Electric CTS-200B 110V/230V 50 Amp HF-TIG Plasma Stick Welder New
Manufacturer: Amico Electric
SKU: CTS-200B
Share
Email
QTY
$ 495.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview
CTS-200B is a new type of multifunctional machine with stylish and generous appearance and superb production technology. Using the most advanced IGBT inverter technology, the arc stability is good, the cutting effect is excellent, and the welding effect is perfect. Can cut and weld almost all metals: stainless steel, carbon steel, low carbon steel, steel, alloy, iron, copper, cast iron. Using the pedal to control the TIG current, you can make exquisite works of art.
1 year limited factory warranty
Brand new in box
Ships directly from Amico Electric out of CA
Authorized Amico Electric dealer
Similar Products
Customers Also Purchased
Amico Electric CTS-200B 110V/230V 50 Amp HF-TIG Plasma Stick Welder New
Share
Email
Share
Share
Features
- 200-Amp STICK Welder, professional manufacturing, strong penetrating power, compatible with all electrodes: E6010, E6011, E6013, E7014, E7018, etc. With built-in thrust, built-in hot start, electrode anti-sticking, and current intensity control functions, all tasks can be completed efficiently and easily.
- 50-Amp Plasma Cutter, can cut stainless steel, alloy steel, low carbon steel, copper, iron, pig iron, cast iron, aluminum alloy, aluminum, etc. 4/5 inches, forming straight cuts, corners, holes, curves, circles, and even V-shaped Groove. The NPT 1/4 inch industrial D-type coupler can be quickly and easily connected to the air compressor.
- The 200-Amp HF-TIG high-frequency ignition system is 100% accurate and effective, making the welding products extremely clean and perfect. The foot pedal function can remotely control and adjust the current, so long-term welding will not be fatigued. It can weld 1/2 inch stainless steel, alloy steel, carbon steel, steel, cast iron, iron, copper perfectly. ( Foot Pedal: FP515-1K )
- CTS-200B integrates the most innovative design structure and technology; it is designed and manufactured in accordance with the highest standards of American industrial equipment. The lightweight ergonomic design makes the machine very portable, suitable for house maintenance, construction sites, and dock operations. It is the most efficient and multifunctional machine.
- Intelligent power supply system, automatic detection of input voltage, automatic switching between 110V and 220V. Extending the power cord by 700 feet can also resist power fluctuations and cable attenuation. The automatic temperature control fan makes the machine run very quietly. All accessories and interfaces comply with American standards.
Specifications
| Type | Plasma Cutter, HF-TIG, Stick/Arc 3-in-1 Combo Welding |
| Supply Power | 110/220V, 50/60Hz, 1-Phase |
| Welding current Range | Plasma Cutter, 220V/50A & 115V/35A HF-TIG, 220V/200A & 110V/140A STICK Arc, 220V/200A & 115V/140A |
| Welding output,104F (40C) | Plasma Cutter 50A/100V TIG Torch 200A/18V · STICK ARC 200A/28V |
| Rated Input Current | Plasma Cutter 27.1A/220V & 35.7A/110V TIG Torch 19.6A/220V & 23.7A/110V STICK Arc 30.5A/220V & 39.1A/110V |
| Duty Cycle | Plasma Cutter |
| Nominal DC Open Circuit Voltage | 73V |
| Efficiency | 85% & Power Factor |
| Output Terminal Type | Direct Wire |
| Cooling Method | Fan Air Cooled |
| Plasma Air Supply | Clean Dry Oil-Free Air |
| Plasma Air Pressure Range | 30-75 psi |
| Recommended Air Inlet Flow | 4.5scfm @ 75 psi |
| Maximum Severance Cutting Thickness | 1.0 in. |
| Movement Speed | 12.5 in./min |
| Net Weight | 28 lbs. |
| Product Size | 19.5 x 9.0 x 13.5 in. |
| Package Weight | 50 lbs. |
| Shipping Size | 22.5 x 12.5 x 16.8 in. |
Package Contents

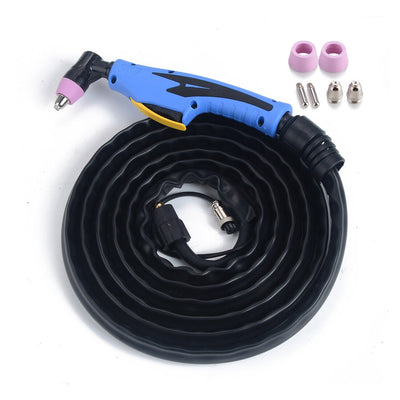

13-Feet Plasma Cutter Torch Gun Assembly
13-Feet High Frequency TIG Torch Assembly
300-Amp Electrode Holder and 10-Feet Cable

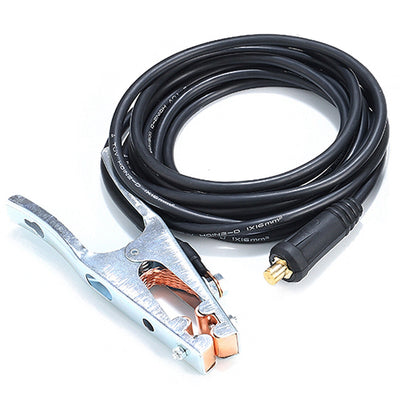

300-Amp Work Clamp and 10-Feet Cable

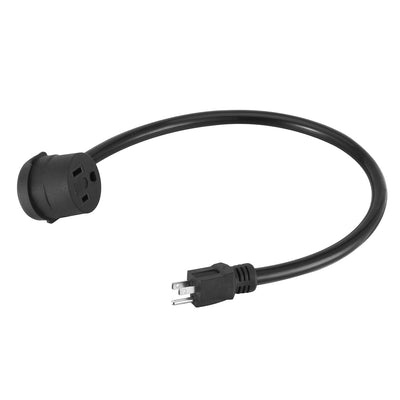

220V (N6-50R) to 110V (10-30P) Power Adapter
Owner’s Manual
Warranty
This item comes with a 1 year limited factory warranty.
