Product Overview

TIG-165 is a rectifier adopting the most advanced inverter technology. Welding power source can offer stronger, more concentrated and more stable arc. When stick and work piece get short, its response will be quicker. It means that it is easier to design into welding machine with different dynamic characteristics, and it even can be adjusted for specialty to make arc softer or harder.

vendor logo
divider
authorized dealer
checkmark

1 year limited factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Amico Electric out of CA

checkmark

Authorized Amico Electric dealer

Features

  • TIG-165 is ideal for high frequency TIG torch with Stick/Arc welder.
  • HF Start-easy arc starting and improvers tungsten life, the HF service guarantees a start-up at 100%, simple to operate, LCD amperage display.
  • Fan automatic temperature control, intelligent fan control operates when welding commences to cool components and reduce airborne contaminants pulled through the power source.
  • Automatic compensation for voltage fluctuation, over-voltage protection, under voltage protection, over current protection, over load protection.
  • The lightness and strength of its components make this a reliable work tool for professionals or personal use.
  • Advanced IGBT inverter technology, excellent Arc stability, 15-160 amps very suitable weld thin workpiece.
  • This is optimized to deliver a flawless weld, making spatter and post-weld cleanup almost non-existent, steeples amperage control, all generators friendly.
  • 115V/230V Dual Voltage Input, all machines tested in the USA and one-year warranty.

Specifications

Processes TIG (GTAW), Stick, Arc
Input Power 115/230V/1phase/50-60Hz
Rated Input Power 230V/5.7KVA/25A & 115V/3.9KVA/34A
TIG Current Range 230V/DC 16.4V/15-160A & 115V/DC 14.8V/15-120A
Stick Current Range 230V/DC 16.4V/15-140A & 115V/DC 14.8V/15-110A
Duty Cycle 60% at 160 Amps
Cooling Method Forced Air / Fan Cooling
TIG-Arc Start Method High Frequency & High Voltage
Usable Electrode 230V/1/16” – 1/8” & 115V/1/16” – 3/32”
Power Factor 0.93
Insulation Grade F
Protection Degree IP21S
Dimension 16 x 6.25 x12 in.
Net Weight 15 lbs.
Packaging Size 19 x 10.2 x 13.6 in.
Packaging Weight 26 lbs.

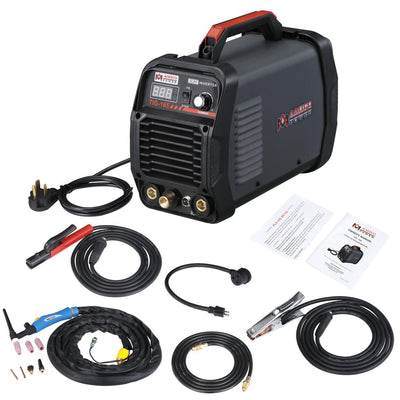

Package Contents

TIG-165: TIG & Stick 2-IN1 Welder

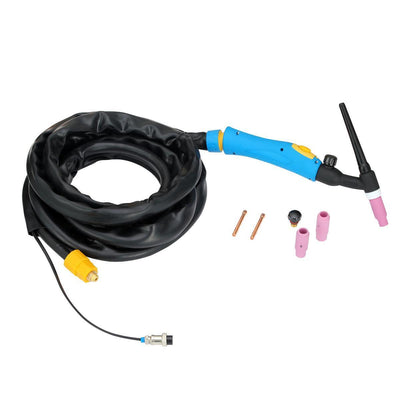

13 Feet Professional TIG Torch Gun

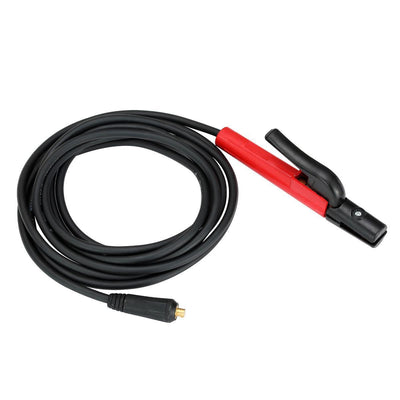

10 Feet Electrode Holder and Cable

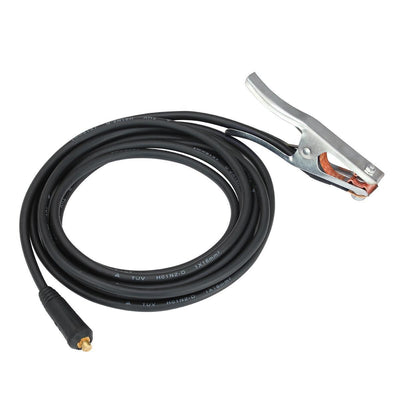

10 Feet Work Clamp and Cable

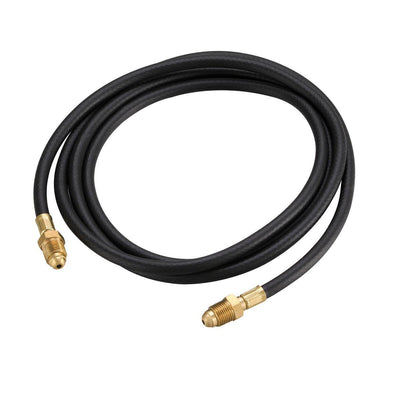

8 Feet Argon Gas Hose

115V & 230V Power Cord Adapter

1 pieces of Tungsten 1/16 in.

Owner’s Manual

Warranty
