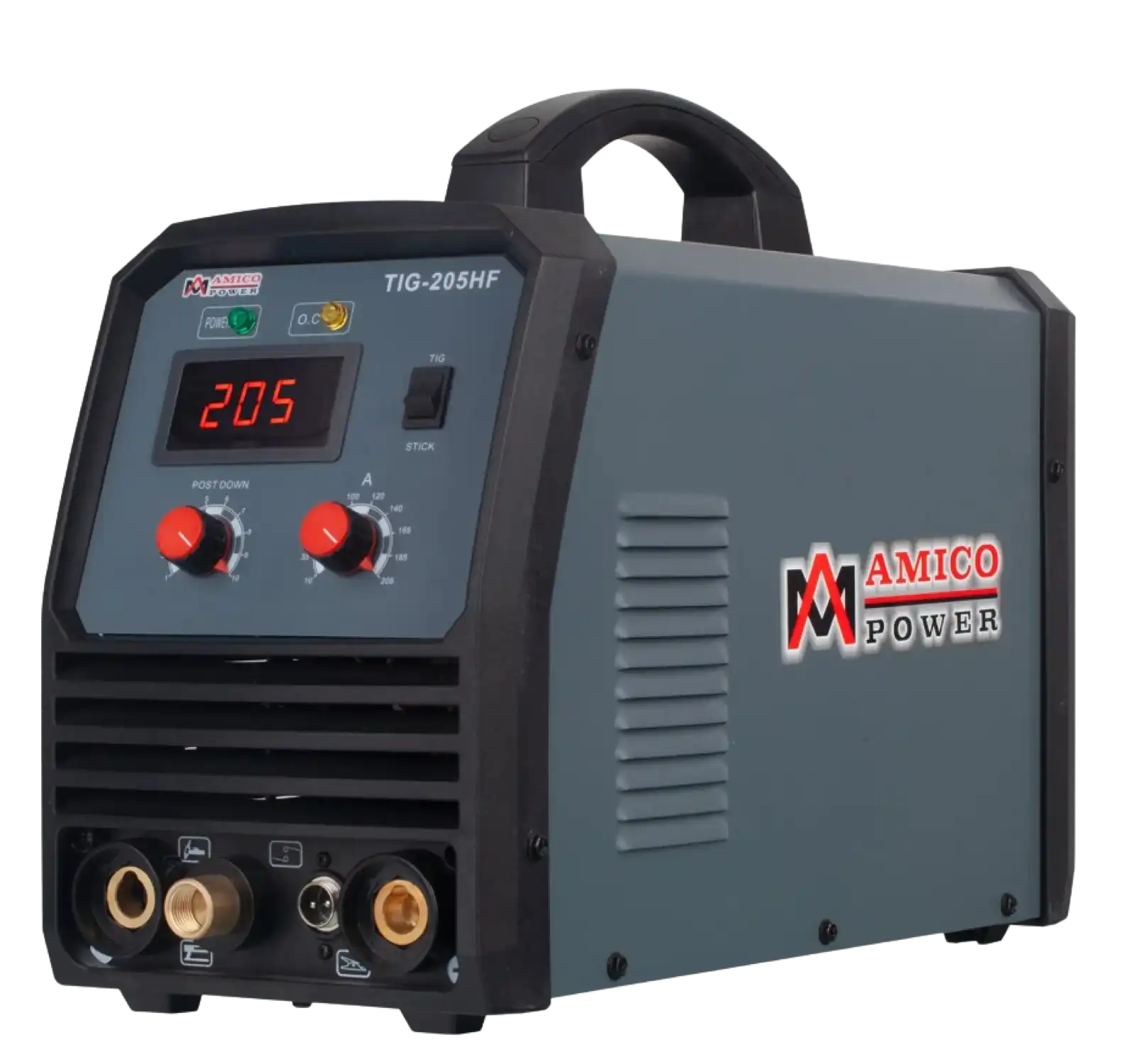

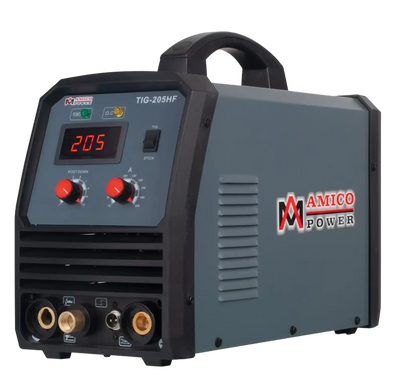

Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New

Manufacturer: Amico Electric

SKU: TIG-205HF

Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New









Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New
Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New

QTY

$ 288.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Ships Same or Next Day

If ordered by 12PM EST

Extended Warranty

×

Factory Warranty

  • This item comes with a 1 year limited factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 1 year limited factory warranty.

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$59.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$89.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

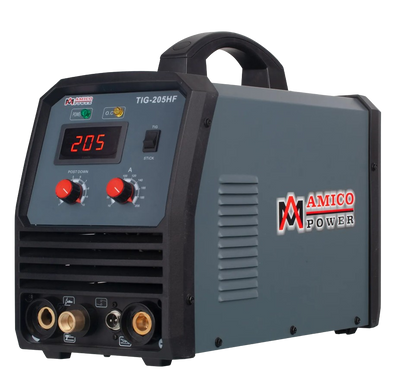

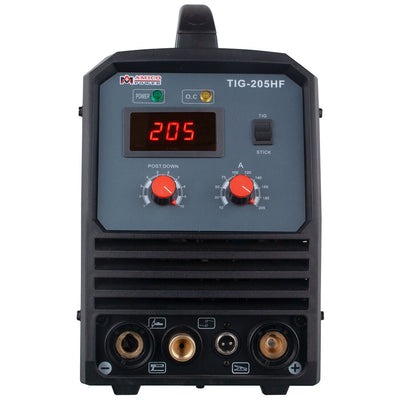

TIG-205HF integrates advanced inverter technology, allowing excellent arc stability and the most beautiful welds. Whether the material is stainless steel, alloy steel, low carbon steel, copper, iron, pig iron, cast iron, etc., the welding effect is absolutely ideal; the machine can be swiftly operated and can efficiently finish any tasks from home repairs or professional use. The new lightweight model design gives the machine an elegant structure and makes the machine very easy to carry.

vendor logo
divider
authorized dealer
checkmark

1 year limited factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Amico Electric out of CA

checkmark

Authorized Amico Electric dealer

Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New

Amico Electric TIG-205HF 100-250V Wide Voltage 205 Amp HF-TIG Stick Arc DC Inverter Welder New

Features

  • TIG-205HF is an intelligent power supply system built with a sleek and modern design. The automatic selection function can automatically detect the input voltage and will adjust to the suitable conditions on its own. Additionally, you can easily manually adjust it in the range of 95V to 260V for specific requests. This machine is designed for demanding industrial work and construction, including simple tasks and chores around the house.
  • Extending the power cord by 700 feet can also resist power fluctuations and cable attenuation. At that extreme length, the machine can still work perfectly and flawlessly, ensuring that the work is efficiently completed. It is extremely suitable for difficult operations on construction sites, agricultural sites, relatively remote areas, and even suitable for simple tasks around the house or workshop.
  • TIG-205HF is a professional Argon arc welding machine with outstanding performance and a robust and elegant structure. This is an industrial level machine – high-frequency and high-voltage arcs are easy to start and ensure 100% perfection. The current of 10-205 amperes is very suitable for welding all types of thicknesses regarding work-pieces. The outstanding 80% duty cycle can also ensure long-time welding.
  • TIG-205HF has a variety of safety protection functions, such as automatic voltage fluctuation compensation, over-heating protection, over-current protection, over-load protection, TIG torch gun safety protection, solenoid valve gas control, etc. The fan has an automatic temperature control function, which can make the machine run very quietly.

Specifications

Processes TIG (GTAW), Stick, Arc
Supply Power AC 95~260V, 50/60Hz, 1-phase
Rated Input Power 230V/6.6KVA/40A, 115V/3.85KVA/47A
TIG Current Range 230V/18.0V/10-200A, 115V/15.8V/10-130A
Stick Current Range 230V/28.0V/20-200A, 115V/25.8V/20-130A
Nominal DC Open Circuit Voltage 62-Volt
Output Voltage TIG 230V/18.0-Volt, 115V/15.2-Volt
Output Voltage Stick 230V/28.0-Volt, 115V/25.2-Volt
Duty Cycle @ 104F(40c) 80% at 200 Amp
Cooling Method Forced Air / Fan Cooling
TIG-Arc Start Method High Frequency & High Voltage
Usable Electrode 230V/1/16-3/16 in. & 115V/1/16-5/32 in.
Power Factor 0.93
Protection Degree IP21S
Dimension 15.72 x 8.52 x 12.85 in.
Net Weight 25.0 lbs.
Packaging Size 20.0 x 12.6 x 14.8 in.
Packaging Weight 35.0 lbs.

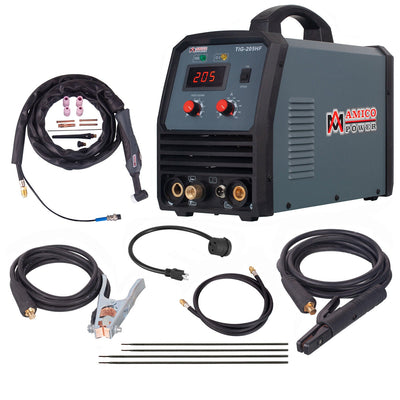

Package Contents

TIG-205HF TIG & Stick Welding Machine

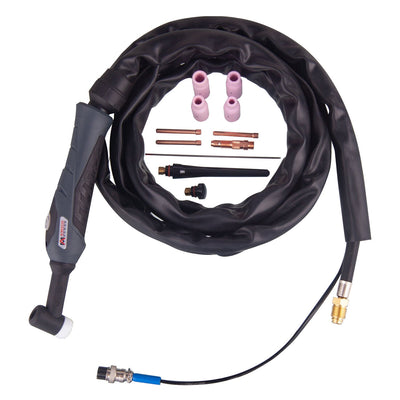

13 Feet 250A Professional TIG Torch Gun

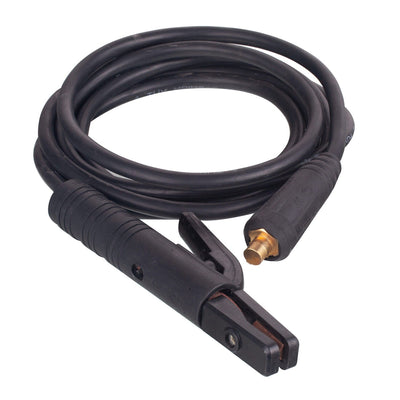

300A Electrode Holder, 10 Feet Cable, 35-50mm Lead Dines

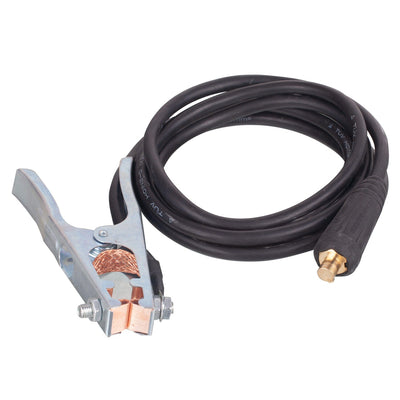

300A Work Clamp, 10 Feet Cable, 35-50mm Lead Dines

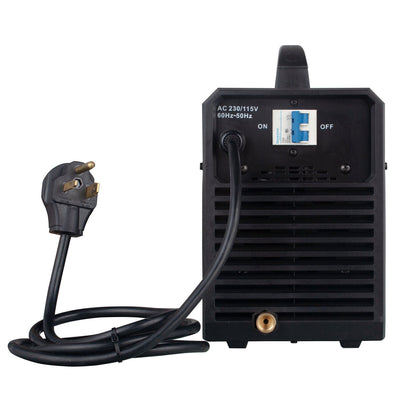

8 Feet Power Cord, N6-50P Plug

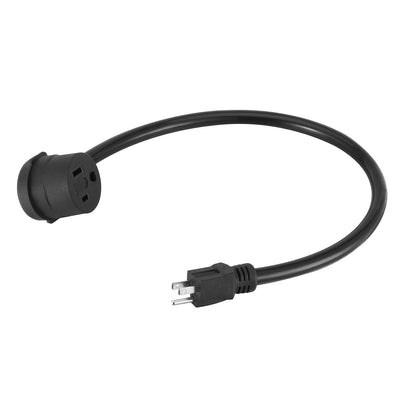

230V to 115V Power Cord Adapter

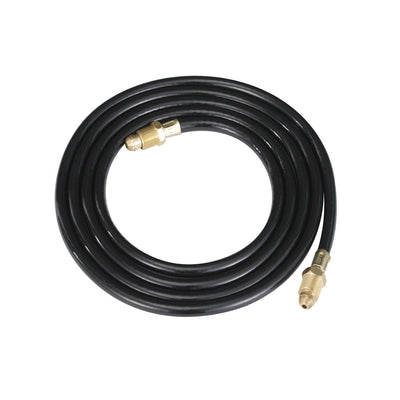

8 Feet Argon Gas Hose

1 pieces of Tungsten 5/64 in.

4 Pieces Electrode 1/8 in. & 3/32 in.

Owner’s Manual

Warranty
