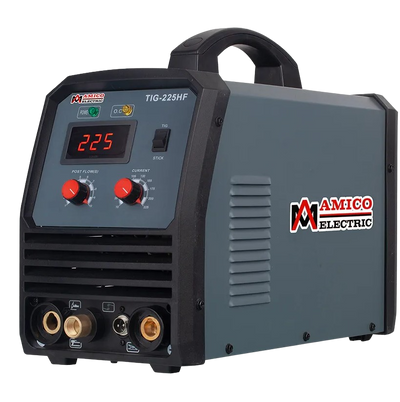

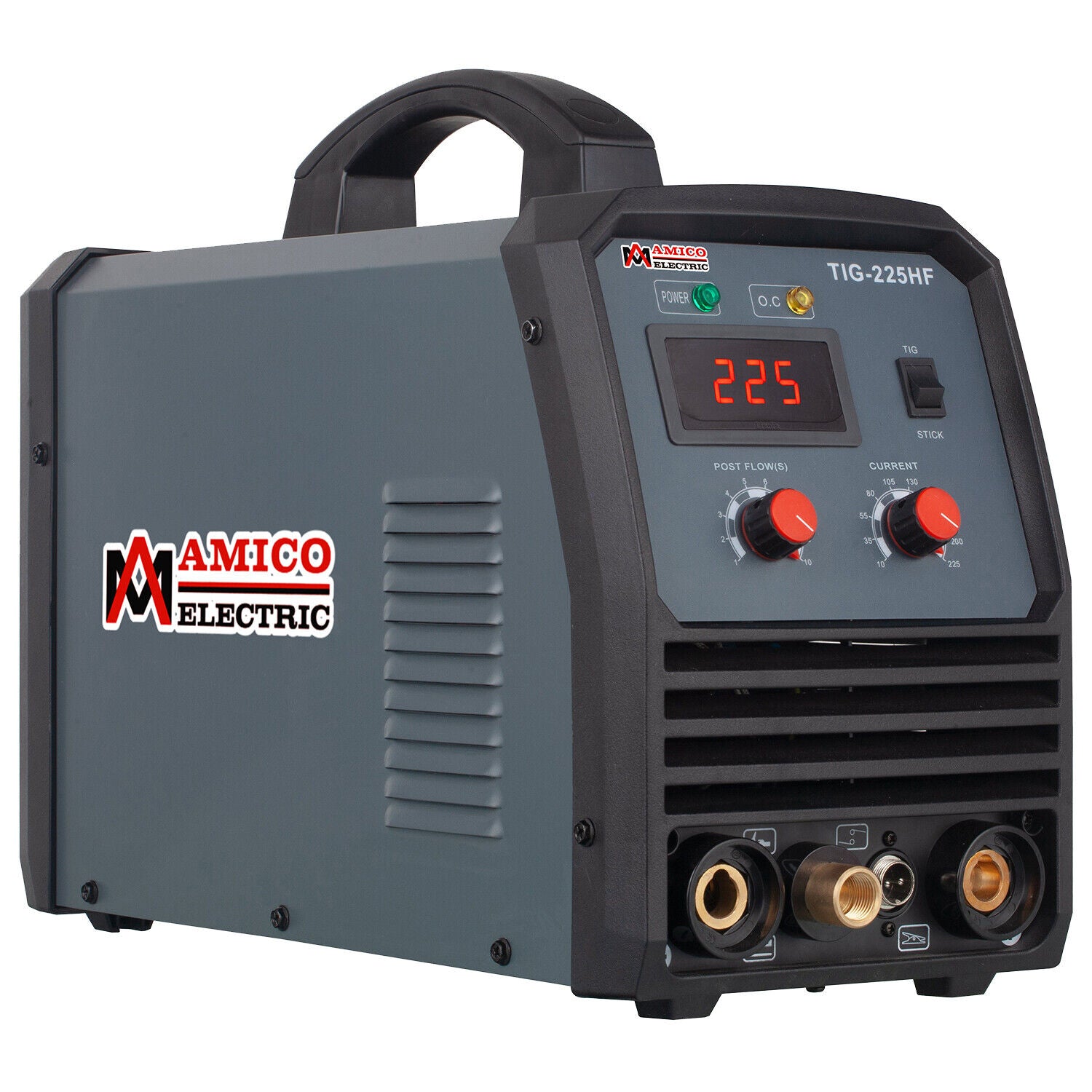

Amico Electric TIG-225HF 100-250V Wide Voltage 225 Amp HF-TIG Stick Arc DC Inverter Welder New
Manufacturer: Amico Electric
SKU: TIG-225HF
QTY
(888) 999-1522
$ 319.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Amico Electric TIG-225HF 100-250V Wide Voltage 225 Amp HF-TIG Stick Arc DC Inverter Welder New
Product Overview
TIG-225HF integrates advanced inverter technology, allowing excellent arc stability and the most beautiful welds. Whether the material is stainless steel, alloy steel, low carbon steel, copper, iron, pig iron, cast iron, etc., the welding effect is absolutely ideal; the machine can be swiftly operated and can efficiently finish any tasks from home repairs or professional use. The new lightweight model design gives the machine an elegant structure and makes the machine very easy to carry.
1 year limited factory warranty
Brand new in box
Ships directly from Amico Electric out of CA
Authorized Amico Electric dealer
Features
- TIG-225HF is an intelligent power supply system built with a sleek and modern design. The automatic selection function can automatically detect the input voltage and will adjust to the suitable conditions on its own. Additionally, you can easily manually adjust it in the range of 95V to 260V for specific requests. This machine is designed for demanding industrial work and construction, including simple tasks and chores around the house.
- Extending the power cord by 700 feet can also resist power fluctuations and cable attenuation. At that extreme length, the machine can still work perfectly and flawlessly, ensuring that the work is efficiently completed. It is extremely suitable for difficult operations on construction sites, agricultural sites, relatively remote areas, and even suitable for simple tasks around the house or workshop.
- TIG-225HF is a professional Argon arc welding machine with outstanding performance and a robust and elegant structure. This is an industrial level machine – high-frequency and high-voltage arcs are easy to start and ensure 100% perfection. The current of 10-225 amperes is very suitable for welding all types of thicknesses regarding work-pieces. The outstanding 80% duty cycle can also ensure long-time welding.
- TIG-225HF has a variety of safety protection functions, such as automatic voltage fluctuation compensation, over-heating protection, over-current protection, over-load protection, TIG torch gun safety protection, solenoid valve gas control, etc. The fan has an automatic temperature control function, which can make the machine run very quietly.
Specifications
| Processes | TIG (GTAW), Stick, Arc |
| Supply Power | AC 95~260V, 50/60Hz, 1-phase |
| Rated Input Power | 230V/8.5KVA/37A, 115V/4.8KVA/42A |
| TIG Current Range | 230V/18.8V/10-220A, 115V/16.5V/10-160A |
| Stick Current Range | 230V/32.0V/10-220A, 115V/28.0V/10-160A |
| Nominal DC Open Circuit Voltage | 65-Volt |
| Output Voltage TIG | 230V/18.8-Volt, 115V/16.5-Volt |
| Output Voltage Stick | 230V/32.0-Volt, 115V/28.0-Volt |
| Duty Cycle @ 104F(40c) | 80% at 220 Amp |
| Cooling Method | Forced Air / Fan Cooling |
| TIG-Arc Start Method | High Frequency & High Voltage |
| Usable Electrode | 230V/1/16-3/16 in. & 115V/1/16-5/32 in. |
| Power Factor | 0.93 |
| Protection Degree | IP21S |
| Dimension | 15.72 x 8.52 x 12.85 in. |
| Net Weight | 27.0 lbs. |
| Packaging Size | 20.0 x 12.6 x 14.8 in. |
| Packaging Weight | 36.0 lbs. |

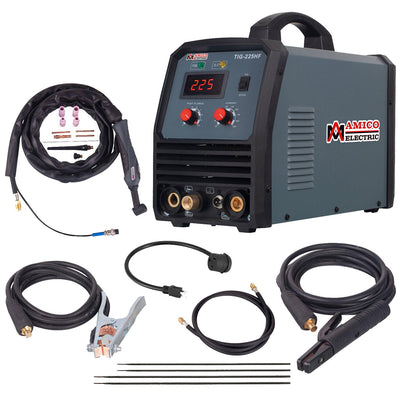

Package Contents
TIG-225HF TIG & Stick Welding Machine

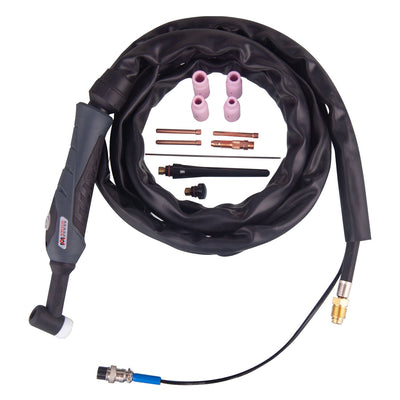

13 Feet 250A Professional TIG Torch Gun
300A Electrode Holder, 10 Feet Cable, 35-50mm Lead Dines

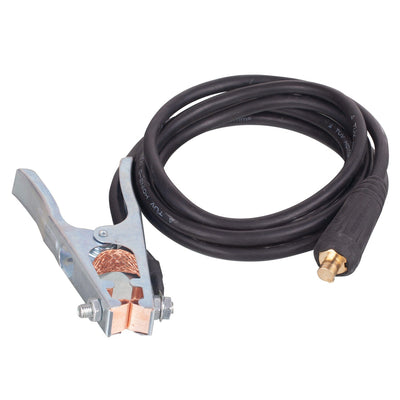

300A Work Clamp, 10 Feet Cable, 35-50mm Lead Dines

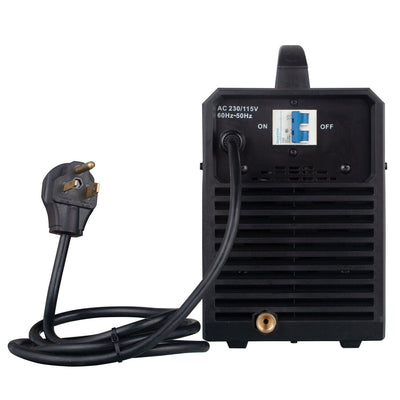

8 Feet Power Cord, N6-50P Plug

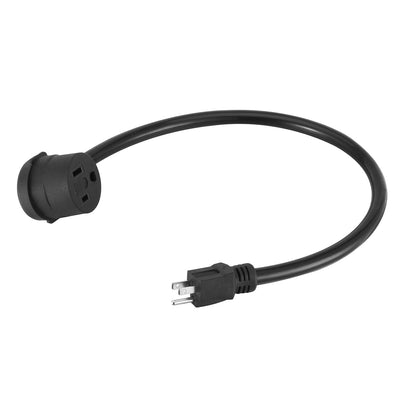

230V to 115V Power Cord Adapter

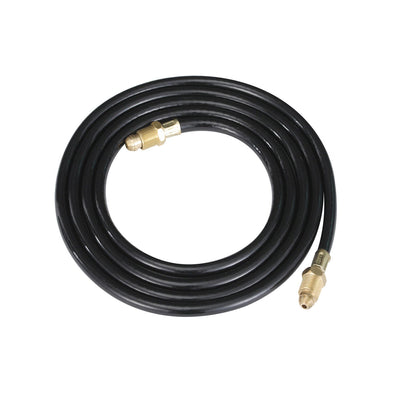

8 Feet Argon Gas Hose
1 pieces of Tungsten 5/64 in.
4 Pieces Electrode 1/8 in. & 3/32 in.
Owner’s Manual
Warranty
This item comes with a 1 year limited factory warranty.
