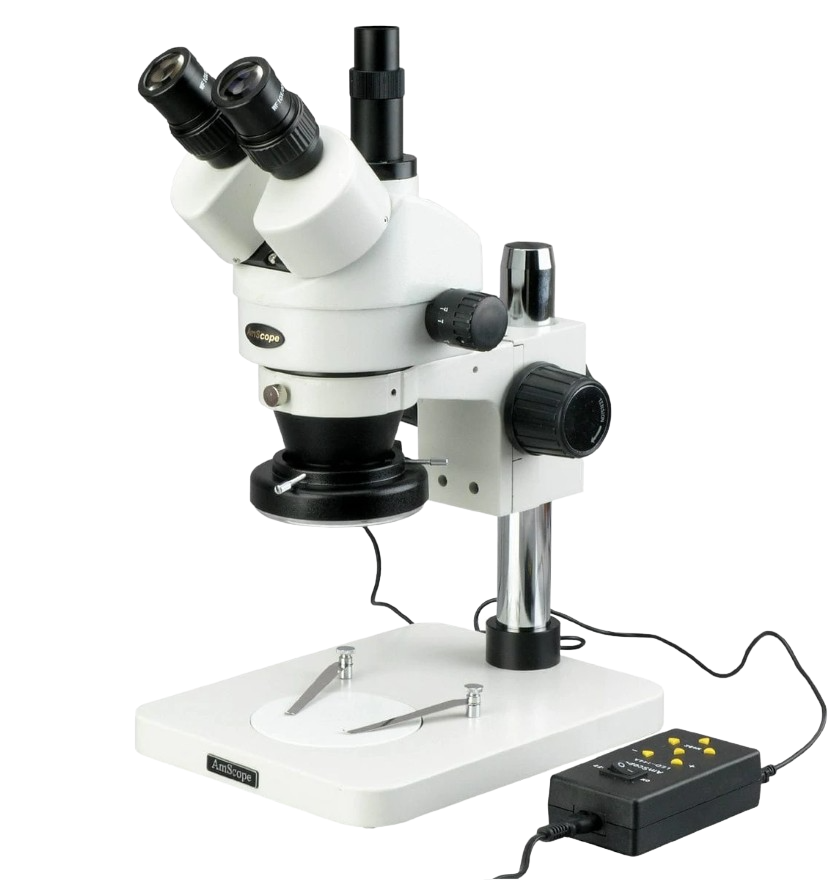

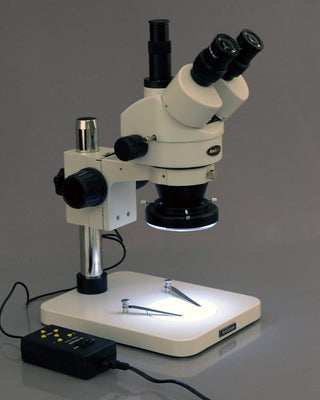

Amscope SM-1TSZ-144A 3.5X - 90X Trinocular Inspection Zoom Stereo Microscope with 144 LED 4 Zone Light New
Product Overview
This trinocular stereo microscope comes with a 144 LED 4 light zone ring light. The 144 LED ring light is lighting direction changeable and lighting intensity adjustable, providing cool, even and bright LED illumination.
This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- A trinocular stereo inspection microscope with LED ring light
- Intensity and light direction variable cool, even and bright 144 LED ring illumination
- 3.5X - 90X super wide zoom magnification power
- 8" (200mm) extreme large working distance
- High resolution with great flatness and contrast, giving sharp and clear images
- Trinocular head with 45 degree inclined 360 degree swiveling eye tubes

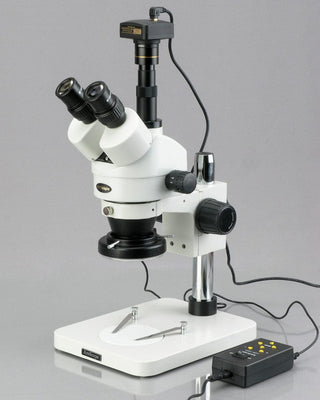

- The trinocular port enables the easy use of camera capabilities
- 30mm super widefield high eyepoint eyepieces with a 20mm field of view
- Sharp stereo erect images with a wide field of view
- Crystal clear, original true color microscope images
- Dual eye tubes with adjustable diopters
- Contemporary table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome plated mechanical components
- Adjustable interpupillary distance
- Rubber eye guards included
- Manufactured under ISO 9001 quality control standard
- Five 5 year manufacturer warranty for microscope
Specifications
| Head | 360 degree rotatable 45 degree inclined trinocular |
| Eyepiece | 30mm super widefield high eyepoint WH10X/20MM |
| Barlow Lens | 0.5X and 2.0X |
| Zoom Range | 0.7X - 4.5X |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55 - 75mm) |
| Working Distance | 8" (200mm) |
| Field of View | 2 - 1/2" (65mm) super widefield |

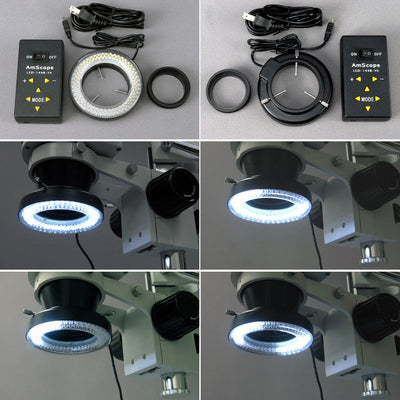

| Illumination | 144 LED ring light, 4 light zones |
| Power Input | 110 - 240V, 50 - 60HZ, automatic switching |
| Stand | 10" x 7 - 7/8" x 10.75" (254 x 200 x 275mm) |
| Round Plate | 3 - 3/4" (95mm) in diameter |
| Accessories | A pair of eye guards |
| Shipping Weight | 20 lbs |
Package Contents
Trinocular Stereo Zoom Head
Pair of Super Widefield 10X Eyepieces
0.5X Barlow Lens
2.0X Barlow Lens
144 LED Ring Illuminator with 4 Light Zones
Pillar Table Stand
Focusing Rack
Round Plastic Plate
Pair of Eye Guards
Pair of Clips
Dust Cover
User's Manual
Warranty
This product comes with a 5 year factory warranty.
