Amscope SM-1TZ 3.5X - 90X Trinocular Inspection Microscope with Super Large Stand New
Manufacturer: AmScope
SKU: SM-1TZ
QTY
(888) 999-1522
$ 403.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Amscope SM-1TZ 3.5X - 90X Trinocular Inspection Microscope with Super Large Stand New
Product Overview

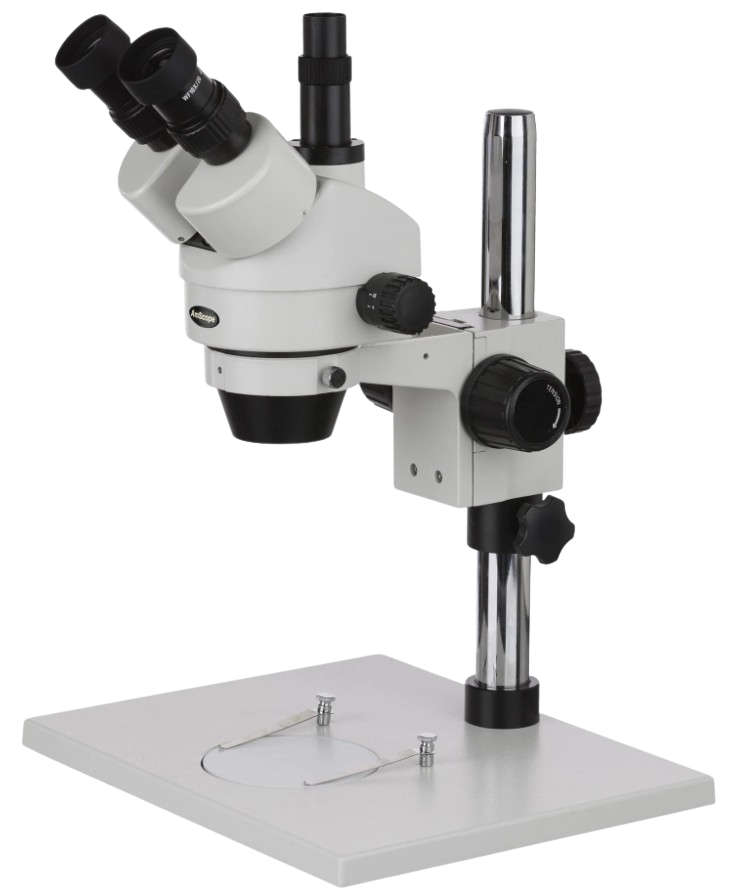

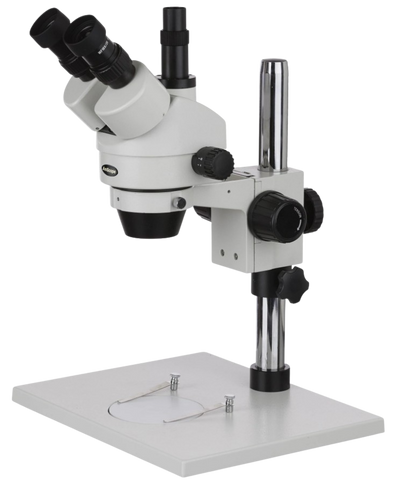

This is a trinocular stereo zoom microscope with a pillar stand with extra large base. The microscope also features a switched trinocular photo port for attaching an imaging device without the need to replace one of the eyepieces.
This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dye makers, philatelists, and anyone in semiconductor or electronic industry.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- Trinocular port for adding photo / video capability
- 0.7X - 4.5X continuous zoom objective lenses
- 30mm super widefield oculars
- 4" (100mm) large native working distance
- 45 degree inclined ocular tubes
- Crystal clear original true color images
- Erect sharp stereo images over a super widefield of view
- High resolution with great flatness and contrast
- Accurate alignment ensuring fatigue free comfortable observation
- Both ocular tubes with adjustable diopters
- Adjustable interpupillary distance
- Full optical glass elements
- Precise ground glass lenses
- Metal pillar stand finished with stain resistant enamel
- All metal mechanical components
- Five 5 year manufacturer warranty for microscope
Specifications
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular Port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Photo Port | Height adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X, 0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X, 60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with large base |
| Stand Dimensions | Base |
| Focusing Block Focus Range | 50mm |
| Stage Plate | Diameter 95mm |
Package Contents
Trinocular Stereo Microscope Head
Photo Port
Pair 10X Eyepieces
0.5X Barlow Lens
2X Barlow Lens
Pair of Eye Guards
Stand Base
Stand Pillar
Focusing Block
Pair of Stage Clips
Black/White Stage Plate
Hex Wrench
Screws and Washers
User's Manual
Warranty
This product comes with a 5 year factory warranty.
