Amscope SM-2T-LED-TP 7X - 45X LED Trinocular Zoom Stereo Microscope with Touchpad Digital Imaging System New
Product Overview

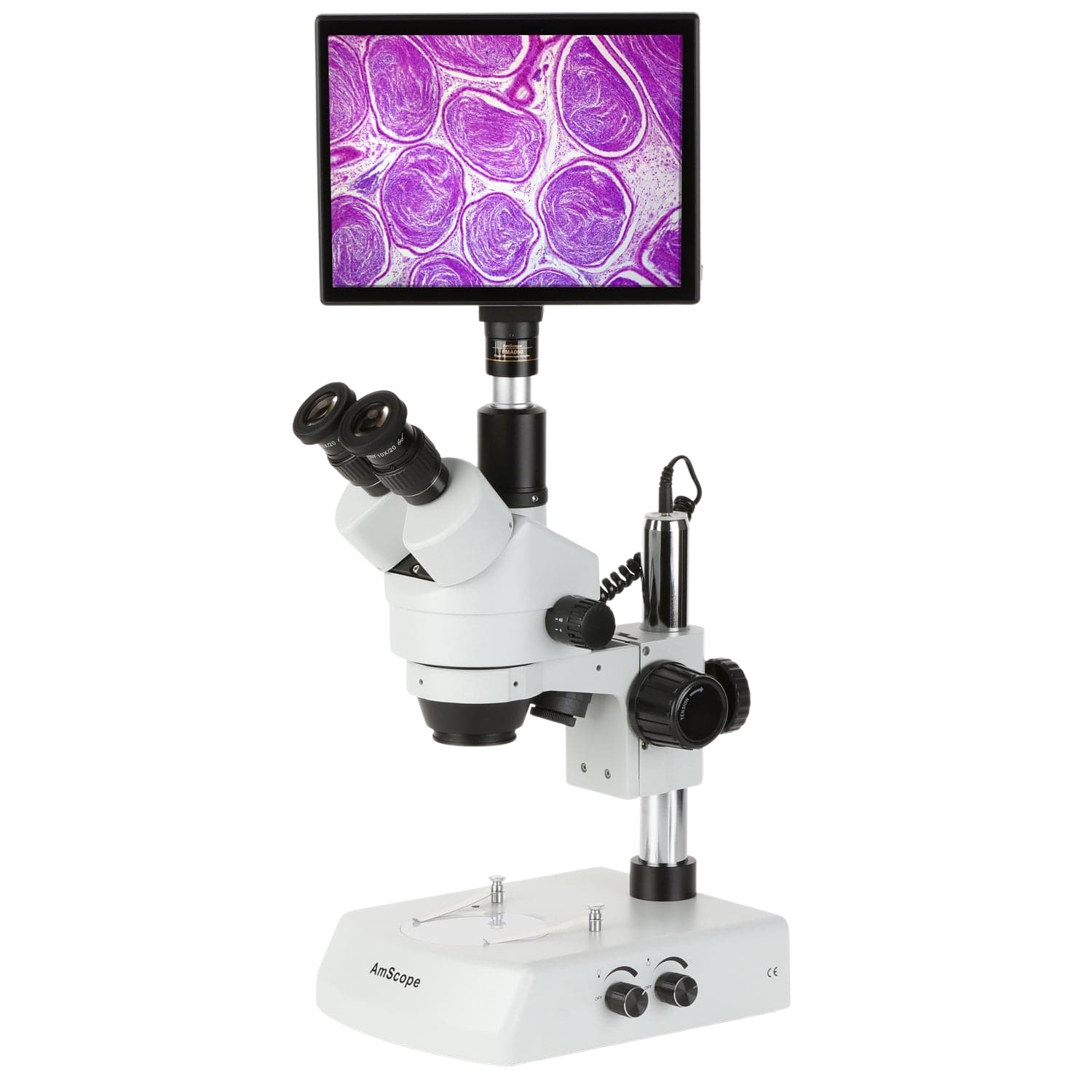

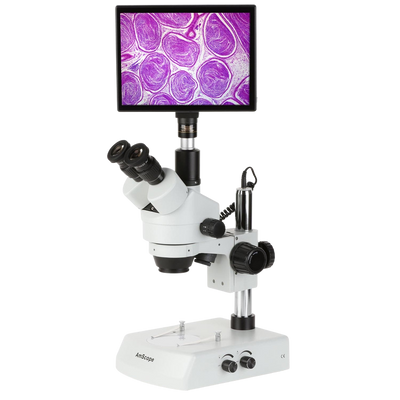

This is a first class 7X - 45X trinocular stereo zoom microscope with LED cool illumination and a touchscreen imaging system. The 9.7" color touchscreen imaging system offers great color, smooth images, and a multi touch screen, this system is ideal for educational and industrial applications.
This system has an integrated 5MP camera which allows for high speed, high quality image capture. You can also focus through the screen instead of the microscope eyepieces when needed.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- A great microscopy system for temperature sensitive applications
- 7X - 45X large zoom range continuous magnification

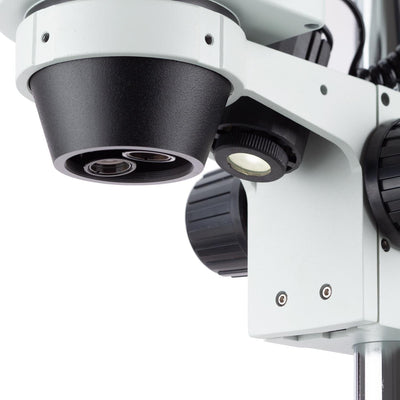

- LED incident top cool lighting and transmitted bottom cool illumination
- Includes a 9.7" tablet with an integrated camera for digital imaging
- 4" 100mm Large working distance
- 45 degree inclined trinocular head with super widefield eyepieces
- High eyepoint design for easy observation including eyeglass wearers
- 23 mm upright tube for photo or video accessories
- 30mm super widefield eyepieces
- High resolution with great flatness and contrast
- Sharp stereo erect images over a super widefield of view
- Crystal clear original true color images
- Both ocular tubes with adjustable diopter
- Metal pillar stand finished with stain resistant enamel
- Accurate alignment ensuring a fatigue free long time view
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical components
- Adjustable interpupillary distance
- Rubber eye guards included
- CE approval electric apparatus
- Manufactured under restrict ISO 9001 quality control standards
Specifications
| CPU | Dual core 1.5GHz |
| Memory | 1G (DDR3) |
| Storage | Internal 2GB or External MicroSD (TF) Card (up to 32GB) |
| HDMI Display | Yes |
| Output Ports | 1x Micro HDMI Port; 2x USB 2.0 Port |
| Power Supply | 110 - 220VAC input; 5VDC output |
| Head | 45 degree inclined 360 degree swiveling trinocular |
| Eyepiece | 30mm super wide field high eyepoint WF10X/20 |
| Objective | 0.7X - 4.5X |
| Zoom Range | 6.5 |
| Maximum Field of View | 1 - 1/4" (31.75mm) |
| Minimum Field of View | 3/16" (4.75mm) |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55mm - 75mm) |
| Working Distance | 4" (100mm) |
| Frosted Glass Plate | 3 - 3/4" (95mm) in diameter |
| White/Black Plastic Plate | 3 - 3/4" (95mm) in diameter |
| Incident (Top) Illumination | LED |
| Transmitted (Bottom) Illumination | LED |
| Power Supply | 100 - 240VAC 50/60Hz wide band |
| Accessories | dust cover, eye guards and clips |
| Display | 9.7" 1024 × 768 Color LCD Touch Screen |
| Built-in Camera | 5.0 Megapixel Color Camera |
| Still Image Capture | 2592 x 1944, 2048 x 1536, 1600 x 1200 |
| Video Capture | 1024 x 768 @ 15fps |
| Built-in Software | Capture/Measurement App |
| Mechanical Structure | LCD Screen 360° horizontal rotatable; LCD Screen 90° vertical rotatable |
| Operating System | Android 4.1.1 |
Package Contents
Trinocular Stereo Zoom Head
Pair of Super Widefield High Eyepoint 10X Eyepieces
LED Top Light
Pillar Base with LED Bottom Light
Focusing Rack
Frosted Round Glass Plate
White/Black Round Working Plate
Power Cord
Pair of Clips and One Pair of Eye guards
Dust Cover
Touchscreen Imaging System
User's Manual
Warranty
This product comes with a 5 year factory warranty.
