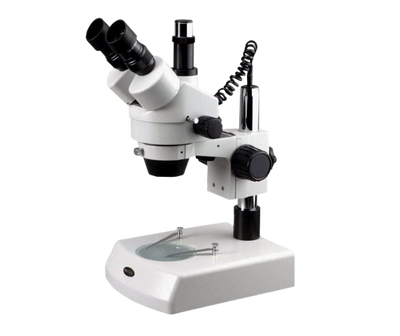

Amscope SM-2TX 3.5X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights New
Manufacturer: AmScope
SKU: SM-2TX
QTY
(888) 999-1522
$ 503.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR 2% OFF: amscope COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This product comes with a 5 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 5 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Amscope SM-2TX 3.5X - 45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights New
Product Overview
The SM-2T is a turnkey trinocular stereo microscope solution for biological and industrial fields. The dual illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs.

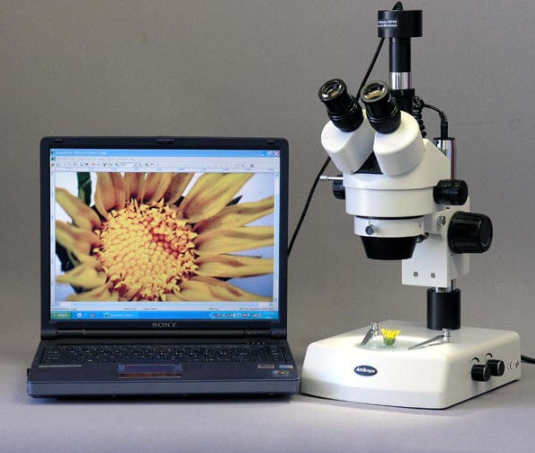

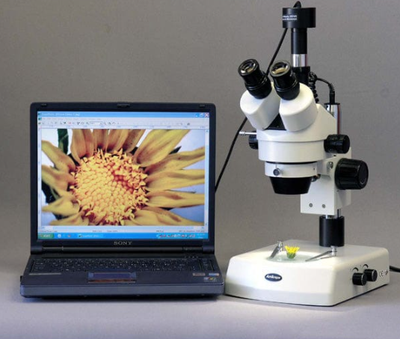

This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- The stereo optics provide clear, sharp images with excellent focus depth and a large working distance.
- With 0.7X - 4.5X zoom objectives, moving through the magnification range is as easy as turning a knob.
- 10X wide field eyepieces provide an ample magnification range from 7X to 45X, with high eyepoint optics to accommodate glasses or goggles.
- A 0.5X Barlow lens is included, which can be mounted to the objective housing to halve the magnification range to 3.5X - 22.5X.
- This also increases the working distance. The combined magnification ranges provide 3.5X - 45X.
- Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity.
- Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

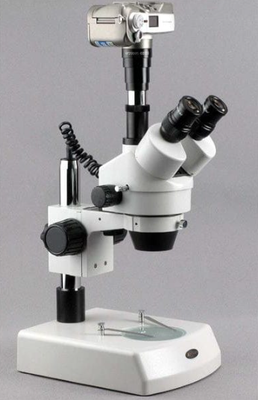

- The switched trinocular photo port provides a dedicated mount for a camera.
- When the photo port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.
- The dual illumination stand provides a turnkey solution for biological and industrial applications.
- The pillar based support system offers flexibility with its ability to quickly adjust height and lateral position.
- The microscope can be easily set and rotated in the mounting collar, and locked in place once adjusted.
- Large, symmetrical focus knobs provide the precision control needed, with adjustable tension for light or heavy loads as well as comfort.
- Overhead and substage halogen lighting allows you to work with opaque and translucent objects.
- The top light is mounted behind the head to provide offset light, and can be tilted for varied effect.
- This is useful for topological examination, such as with circuit boards and biological cultures.
- Thin tissue specimens, gemstones, and other translucent materials will benefit from the substage transmitted lighting.
- A frosted glass stage-plate is provided to diffuse the light for more even back-lighting.
Specifications
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Photo Port | Height adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing block Focus Range | 50mm |
| Reflected Illumination | 15W halogen |
| Transmitted Illumination | 15W halogen |
| Stage Illumination Plate Diameter | 95mm |
| Power | 110VAC 60Hz |

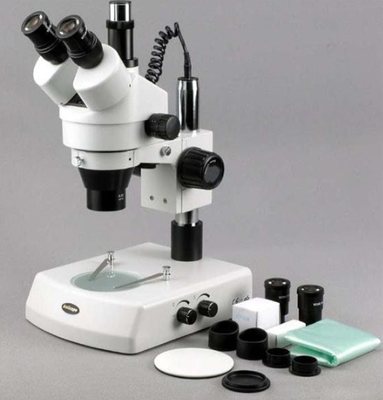

Package Contents
Trinocular stereo microscope head
Photo port
Pair of 10X eyepieces
0.5X Barlow lens
Pair of eye guards
Pillar stand
Focusing block
Top light
Pair of stage clips
Glass stage plate
Black/White stage plate
Power cord
Two light bulbs
Hex wrench
Dust cover
User's Manual
Warranty
This product comes with a 5 year factory warranty.
