Amscope SM-2TZ 3.5X - 90X Trinocular Stereo Zoom Microscope with Dual Intensity Adjustable Lights New
Product Overview
The SM-2T is a turnkey trinocular stereo microscope solution for biological and industrial fields. Using our workhorse SM745 head, it provides remarkable optical quality with a wide zoom magnification range.

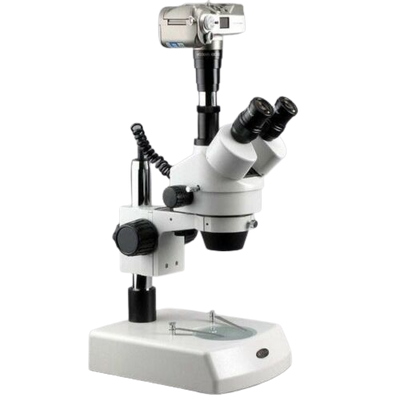

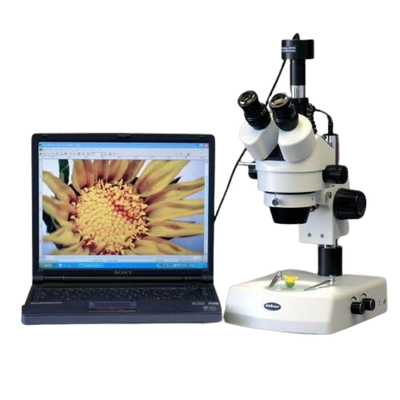

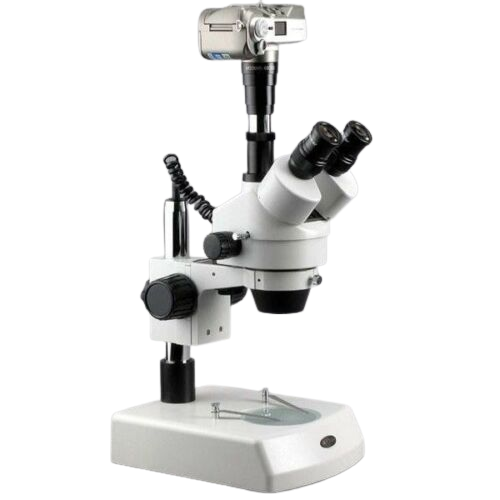

The dual illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs. This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- 3.5X - 90X Continuous Zoom Magnification Range
- Trinocular Design for High Quality Photographs or Video
- Trinocular Port for Adding Photo / Video Capability
- 30mm Super Widefield 10X Eyepieces
- 8" (200mm) Large Working Distance
- 45 Degree Inclined Trinocular Head
- Crystal Clear Original True Color Images
- Erect Sharp Stereo Images over a Super Widefield of View
- High Resolution with Great Flatness and Contrast
- Accurate Alignment Ensuring Fatigue Free Comfortable Observation
- Both Ocular Tubes with Adjustable Diopters
- Adjustable Interpupillary Distance
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- Built in Epi illumination and transmitted lighting system with adjustable intensity
- Metal Pillar Stand Finished with Stain Resistant Enamel
- All Metal Mechanical Components
- CE approval electric apparatus
- Rubber Eye guards Included
- Manufactured under ISO 9001 Quality Control Standard
Specifications
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Photo Port | Height adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing Block Focus Range | 50mm |
| Reflected Illumination | 15W halogen |
| Transmitted Illumination | 15W halogen |
| Stage Illumination Plate Diameter | 95mm |
| Power | 110VAC 60Hz |

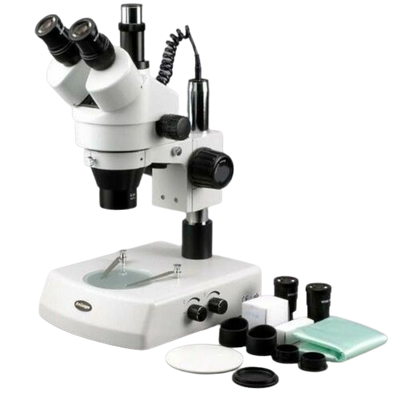

Package Contents
Trinocular stereo microscope head
Photo port
Pair of 10X eyepieces
0.5X Barlow lens
2X Barlow lens
Pair of eye guards
Pillar stand
Focusing block
Top light
Pair of stage clips
Glass stage plate
Black/White stage plate
Power cord
Two light bulbs
Hex wrench
Dust cover
User's Manual
Warranty
This product comes with a 5 year factory warranty.
