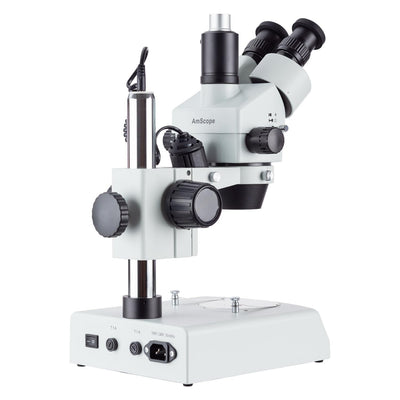

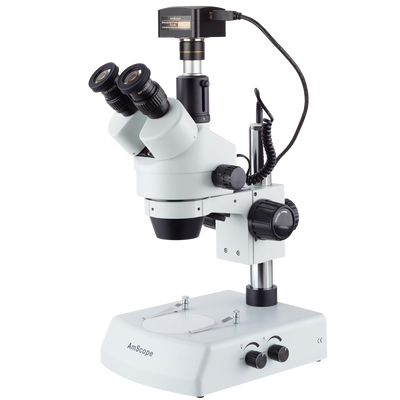

Amscope SM-2TZ-LED-18M3 3.5X - 90X LED Trinocular Zoom Stereo Microscope Plus 18MP Digital Camera New
Manufacturer: AmScope
SKU: SM-2TZ-LED-18M3
QTY
(888) 999-1522
$ 1,040.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR 2% OFF: amscope COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This product comes with a 5 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 5 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Amscope SM-2TZ-LED-18M3 3.5X - 90X LED Trinocular Zoom Stereo Microscope Plus 18MP Digital Camera New
Product Overview
Designed to meet the demands of the modern microscopy applications that are temperature sensitive, like dissecting live tissues or observing live creatures, this scope exceeds all expectations.
You can choose between incident illumination shining down onto the object or transmitted illumination through the frosted stage plate. The first is used for the observation of three dimensional objects and the second for the inspection of the objects that allow light to get through them.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- A great microscopy system for temperature sensitive applications
- Large continuous zoom range
- LED incident (top) cool lighting and transmitted (bottom) cool illumination
- 4" (100mm) large native working distance
- 45 degree inclined trinocular head with super widefield eyepieces
- High eyepoint design for easy observation including eyeglass wearers
- 23mm upright tube for photo or video accessories
- 30mm super widefield eyepieces included
- High resolution with great contrast
- Sharp stereo erect images over a super widefield of view
- Crystal clear original true color images
- Both ocular tubes with adjustable diopter
- Metal pillar stand finished with stain resistant enamel
- Accurate alignment ensuring a fatigue free long time view
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical components
- Adjustable interpupillary distance
Specifications
| Features Windows Version | Live video preview, Captures still images and video, Time lapse capture, Exposure and white balance controls, Dark field correction, Digital binning, Image processing, Measurement tools, including lines, arcs, polygons, Segmentation and counting tools, Image stitching, extended depth of field, HDR, Fluorescence color mapping |
| Features Mac/Linux Versions | Live video preview, Captures still images and video, Exposure control, Color adjustment, Measurement tools, including lines, arcs, polygons |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Photo Port | Height adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing Block Focus Range | 50mm |
| Reflected Illumination | 5W LED |
| Transmitted Illumination | 5W LED |
| Stage Illumination Plate Diameter | 95mm |
| Power | 100-240VAC 50/60Hz |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.3" |
| Active Pixels | 18M (4912 x 3684) |
| Pixel Size | 1.25µm x 1.25µm |
| Active Sensor Area | 6.14mm x 4.61mm |
| Shutter | Electronic rolling shutter |
| Spectral Response | 380 - 650nm with IR cut filter |
| Capture Resolution and Maximum Framerate | 5.6fps @ 4912 x 3684 18.1fps @ 2456 x 1842 32.2fps @ 1228 x 922 |
| Connectivity | USB 3.0 |
| Lens mount | C-mount |
| Compensating | Lens 0.5X |
| Power | 5VDC over USB |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM |
Package Contents
Trinocular stereo microscope head
Photo port
Pair of 10X eyepieces
0.5X Barlow lens
2X Barlow lens
Pair of eye guards
Pillar stand
Focusing block
Top light
Pair of stage clips
Glass stage plate
Black/White stage plate
Power cord
Hex wrench
Dust cover

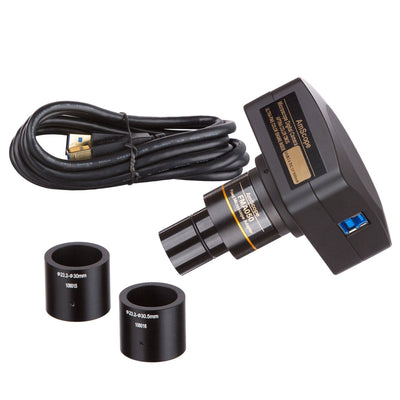

C-mount USB camera
0.5X reduction lens
Two sizing adapters
USB 3.0 Type B to type A cable
Software CD
User's Manual
Warranty
This product comes with a 5 year factory warranty.
