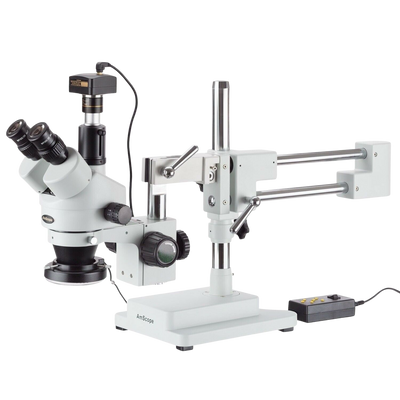

Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New

Manufacturer: AmScope

SKU: SM-3TZ-144A-10M3

Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New

QTY

(888) 999-1522

$ 975.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE FOLLOWING CODE AT CHECKOUT FOR 2% OFF: amscope COPY

Ships in 1-2 business days

Extended Warranty

×

Factory Warranty

  • This product comes with a 5 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This product comes with a 5 year factory warranty.

$69.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$89.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$119.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Review
Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New

Amscope SM-3TZ-144A-10M3 3.5X - 90X Trinocular Stereo Zoom Microscope 144 LED Ring Light and USB3.0 10MP Camera New

Product Overview

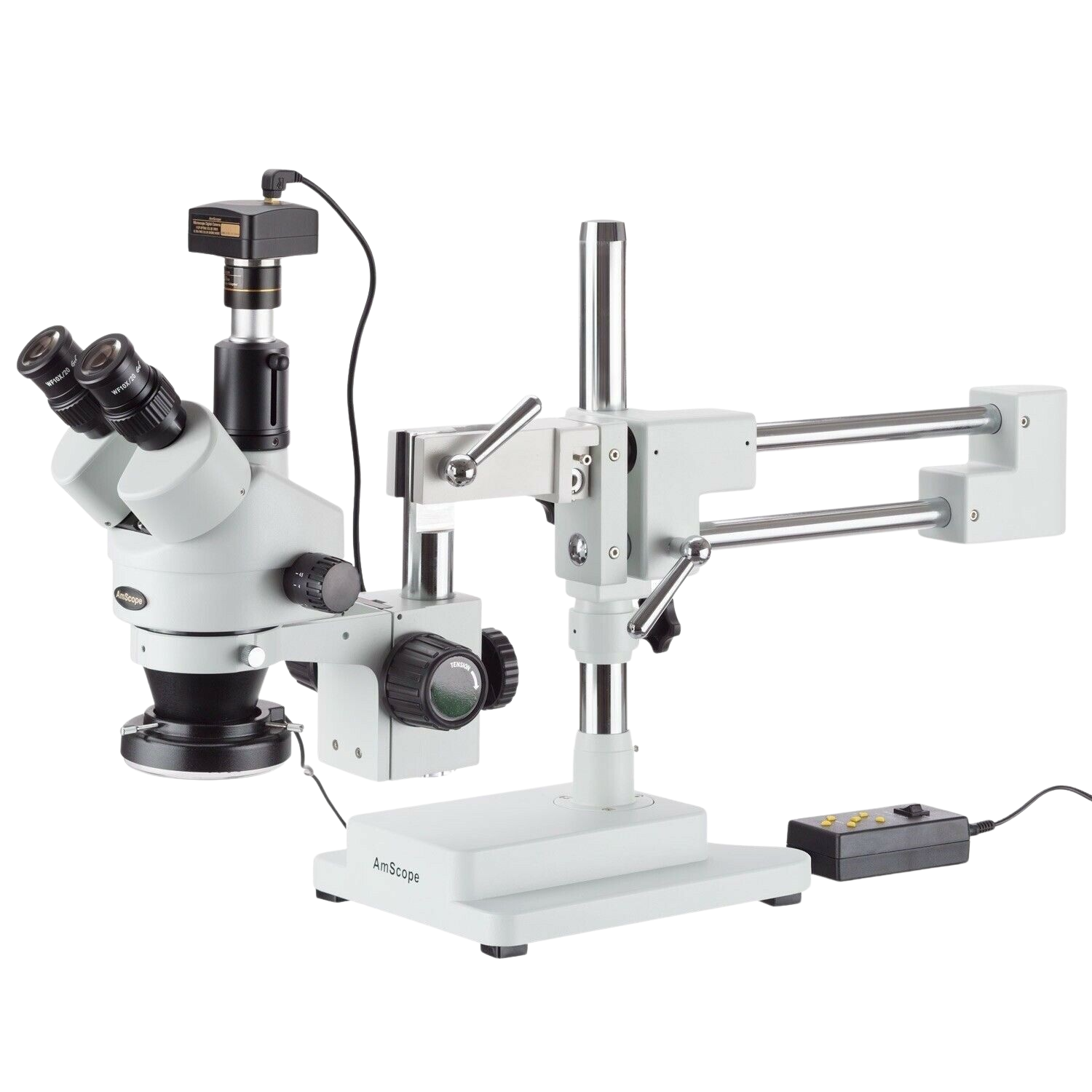

This version of our popular 3.5X - 90X zoom stereo microscope mounted on a single arm boom stand. The trinocular port enables to add photographic or video capability to the microscope. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

The 10MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

5 year factory warranty

checkmark

Manufacturer direct shipping from CA

checkmark

Authorized AmScope dealer

Features

  • 3.5X - 90X zoom stereo microscope with super widefield optics
  • Trinocular design for high quality photographs or video
  • 30mm super widefield 10X eyepieces with 20mm field of view
  • 8 inch (200mm) large working distance
  • 45 degree inclined trinocular head
  • Sharp stereo erect images over a wide field view
  • Crystal clear original true color images
  • High resolution with great flatness and contrast
  • Eye tube with adjustable diopter
  • Adjustable interpupillary distance
  • High eyepoint optic design ensuring an easy and comfortable viewing, especially for eyeglass wearers
  • Accurate alignment ensuring a fatigue free comfortable observation
  • Rubber eye guards providing further comfort
  • Full optical glass elements
  • Precise ground glass lens
  • Sturdy boom stand for versatility and large working area
  • Stand finished with stain resistant enamel
  • 1.5" rugged solid cast metal stand base
  • An ideal stereo inspection microscope with variable 144 LED ring light
  • Intensity adjustable and direction adjustable bright LED cool light illumination
  • All metal mechanical components
  • Manufactured under ISO 9001 quality control standard

Specifications

Compatibility Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0
Head 45 degree inclined 360 degree swiveling trinocular
Eyepiece 30mm super widefield high eyepoint WF10X/20
Objective 0.7 - 4.5X
Zoom Ratio 26
Maximum Field of View 2 - 1/2" (65mm)
Minimum Field of View 3/16" (4.75mm)
Diopter Adjustment +/- 5dp
Interpupillary Distance 2 - 3/16" - 2 - 15/16" (55 - 75mm)
Working Distance 8" (200mm)
Boom Stand 16" arm (overall length
Illumination 144 white LEDs
Power input 110 - 240V, 50 - 60HZ, Automatic Switching
Sensor Aptina MT9J003 (Color)
Sensor Type CMOS
Sensor Size 1/2.2" (6.119mm(H) x 4.589mm(V), diagonal 7.649mm)
Pixel Size 1.67µm x 1.67µm
Resolution 10.0MP
Frame Rate 25fps @1792 x 1372 (Multiple Speed Level), 7.2fps @3584 x 2746
Sensitivity 0.31v / lux-sec (550nm)

Package Contents

Trinocular Stereo Zoom Head

Pair of Super Widefield 10X Eyepieces

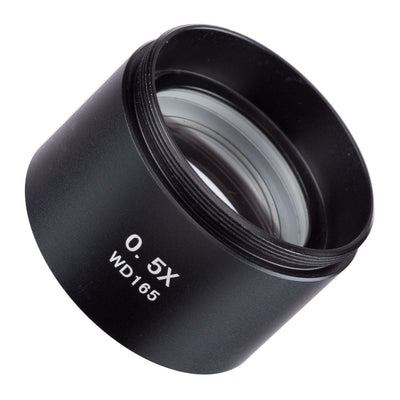

0.5X Barlow Lens

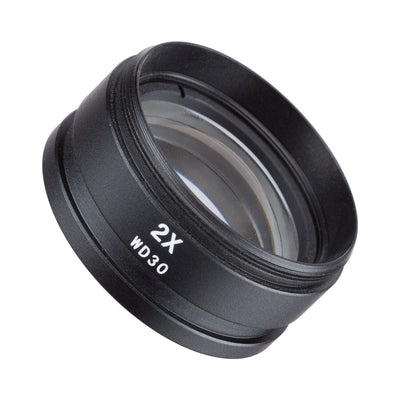

2.0X Barlow Lens

Single Arm Boom Stand

Focus Rack

Pair of Eye Guards

4 zone 144 LED Ring Light with Control Box

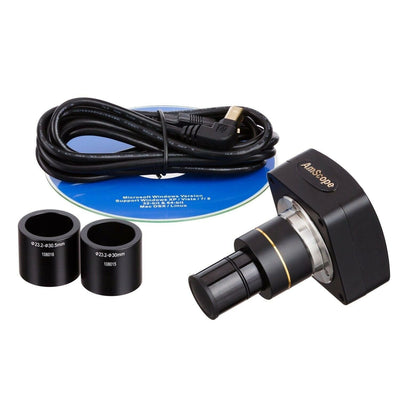

10MP USB3.0 Microscope Digital Camera with Reduction Lens

CD with Camera Software and Driver

6' USB Cable

Two Adapter Sleeves (23.2mm - 30mm and 23.2mm - 30.5mm)

User's Manual
