Amscope SM-3TZ-54S-5M 3.5X - 90X Trinocular LED Boom Stand Stereo Microscope Plus 5MP Camera New
Manufacturer: AmScope
SKU: SM-3TZ-54S-5M
Share
Email
QTY
$ 786.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR 2% OFF: amscope COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This product comes with a 5 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 5 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview

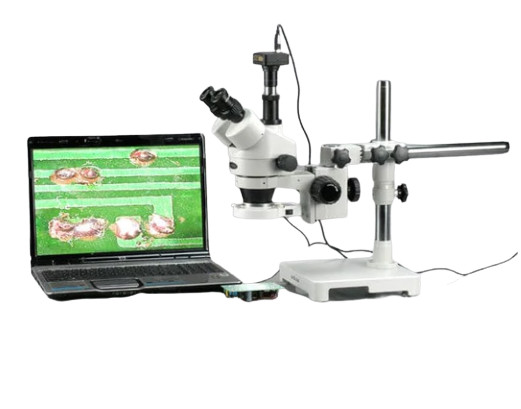

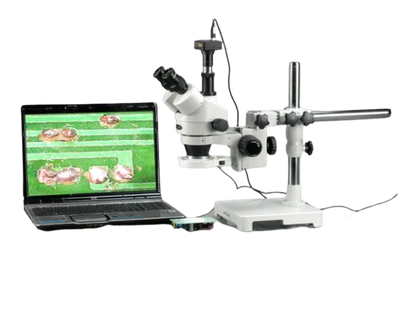

This 3.5X - 90X trinocular stereo zoom microscope is on boom stand. The digital camera captures still images and video, and allows you to view a live stream on your PC.

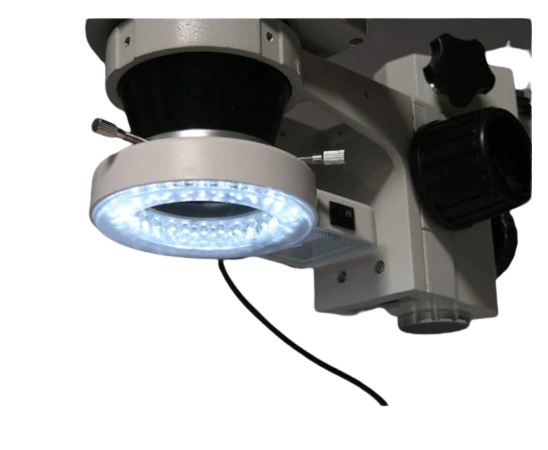

The intensity adjustable LED ring light provides bright, even and cool light illumination. This microscopy system is an ideal instrument for researchers, gemologists, engravers, collectors and anyone in semiconductor and electronics industries.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Amscope SM-3TZ-54S-5M 3.5X - 90X Trinocular LED Boom Stand Stereo Microscope Plus 5MP Camera New
Share
Email
Share
Share
Features

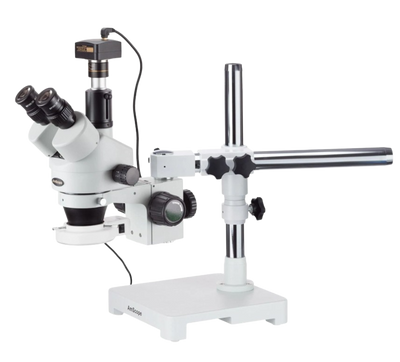

- A 3.5X - 90X Continuous Zoom Magnification Microscopy System on Boom Stand
- 54 LED Ring Light and 5MP Color Digital Camera Included
- 54 LED Bright, Even and Cool Lighting Illumination

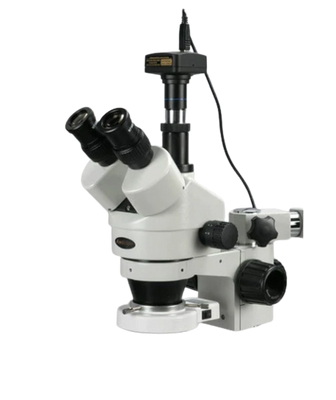

- 45 Degree Inclined Trinocular Head with Super Widefield High Eyepoint Eyepieces
- Erect Stereo Sharp Images over a Super Widefield of View
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- High Resolution with Great Flatness and Contrast
- Crystal Clear Original True Color Images
- 30mm Super Widefield WF10X Eyepieces
- Large Working Distance
- Accurate Alignment Ensuring Fatigue Free Observation
- Both Ocular Tubes with Adjustable Diopter
- Adjustable Interpupillary Distance

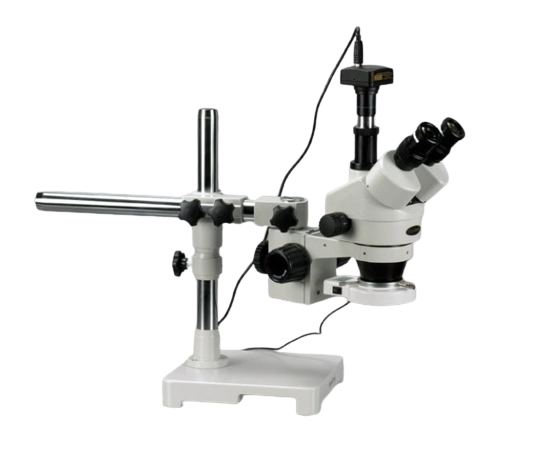

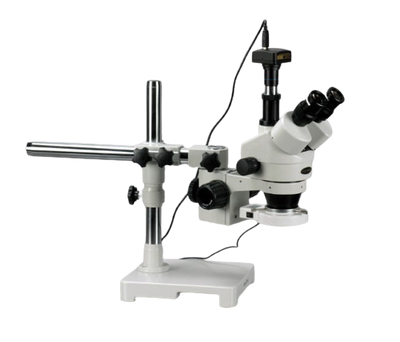

- Versatile Boom Stand Covering Large Working Area
- Heavy Duty Cast Steel Stand Finished with Stain Resistant Enamel
- Rugged Solid Cast Steel Base
- All Metal Mechanical Components
- Rubber Eye guards Included
- Mounting Adapter for LED Ring Light Included
- Camera Adapters for Fitting All Other Microscopes Included
- Manufactured Under ISO 9001 Quality Control Standard
Specifications
| Head | 45 degree inclined 360 degree swiveling trinocular |
| Eyepiece | 30mm super widefield high eyepoint WF10X |
| Objective | 0.7 - 4.5X |
| Barlow Lens | 0.5X and 2.0X |
| Zoom Range | 26 |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55 - 75mm) |
| Working Distance | 8" (200mm) |
| Widefield of View (Maximum) | 2 - 1/2" (65mm) in diameter, super widefield |
| Illumination | 54 LED |
| Power input | 110 - 240V, 50 - 60HZ, Automatic Switching |
| Boom Stand | 16" arm (overall length |
| Accessories | eye guards |
| Shipping Weight | 65 lbs |
| Sensor | Aptina MT9P001 |
| Sensor Type | CMOS |
| Sensor Size | 5.7 x 4.28mm |
| Pixel Size | 2.2 |
| Resolution | 5.1MP |
| Frame Rate | 5 @ 2592 x 1944, 18 @ 1280 x 960, 60 @ 640 x 480 |
| Sensitivity | 0.53 V/lux-sec |
| Compatibility | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port |
Package Contents
Trinocular Stereo Zoom Head
Pair of Super Widefield 10X Eyepieces
Super Widefield 0.5X Barlow Lens
Super Widefield 2.0X Barlow Lens
Single Arm Boom Stand with Focus Rack
Pair of Eye Guards

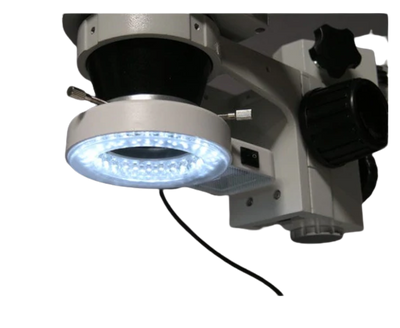

54 LED Ring Light with Mounting Adapter

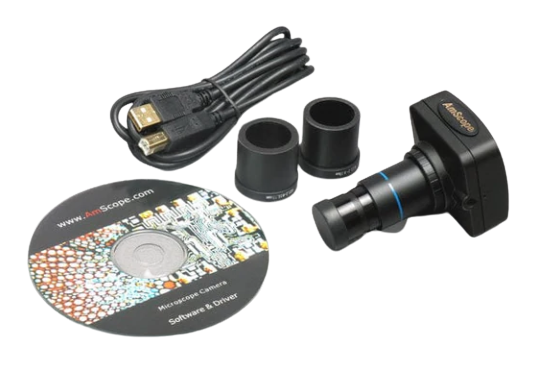

5MP USB2.0 Microscope Digital Camera with Reduction Lens
Two Mounting Adapters for the Camera
USB Cable
CD with Driver and Software
User's Manual
Warranty
This product comes with a 5 year factory warranty.
