Amscope SM-4B-80S 7X - 45X Zoom Magnification Circuit Inspection Stereo Microscope with 80 LED Light New
Product Overview

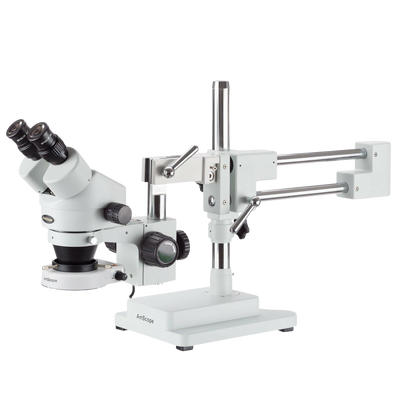

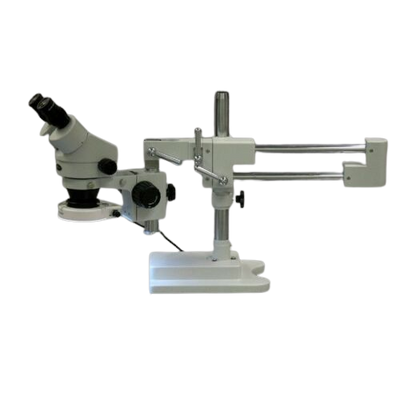

This is a 7X - 45X zoom stereo inspection boom microscope with 80 LED ring light. The 3D double arm boom stand allows you to turn the microscope head around three different axis (x, y, and z), allowing you to point the microscope head in any direction you wish.
It is an ideal instrument for manufacturers, gemologists, engravers, collectors and anyone in semiconductor and/or electronic industry. It is a right microscope for biological laboratory applications that require cool illumination.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- A 7X - 45X Zoom Power Stereo Microscope on Boom with 80 LED Light
- Bright, Even and Cool Lighting Illumination
- Versatile Boom Stand Covering Large Working Area
- Double Arm Design for 3 Degree Freedom
- Allowing You to Point Microscope Head in Any Direction You Wish
- High Resolution with Great Flatness and Contrast
- Erect Stereo Sharp Images over a Super Widefield of View
- 4" (100mm) Large Working Distance
- Accurate Alignment Ensuring Fatigue Free Long Time View
- Crystal Clear Original True Color Images
- 45 Degree Inclined Binocular Head with Super Widefield High Eyepoint Eyepieces
- 30mm Super Widefield Eyepieces, WF10X/20
- Both Ocular Tubes with Adjustable Diopter
- Adjustable Interpupillary Distance
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- Heavy Duty Cast Steel Stand Finished with Stain Resistant Enamel
- Rugged Solid Cast Steel Base
- All Metal Mechanical Components
- Rubber Eye guards Included
- Mounting Ring Adapter Included
- Manufactured under ISO 9001 Quality Control Standard
Specifications
| Shipping Weight | 65 lbs |
| Head | 45 degree inclined 360 degree swiveling binocular |
| Eyepiece | 30mm Super widefield high eyepoint WF10X/20 |
| Objective | 0.7X - 4.5X |
| Zoom Range | 6.5 |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55 - 75mm) |
| Working Distance | 4" (100mm) |
| Illumination | 80 LED |
| Power input | 110 - 240V, 50 - 60HZ, Automatic Switching |
| Boom Stand | 20" double arm (overall length |
| Accessories | Eye guards |
Package Contents

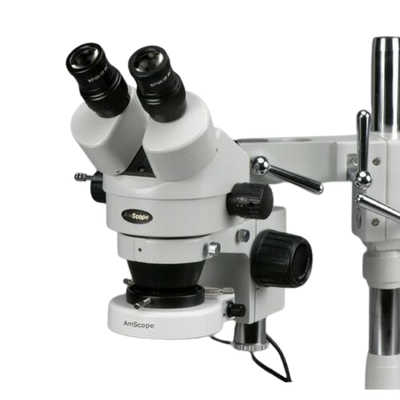

Binocular Stereo Zoom Head
Pair of Super Widefield 10X Eyepieces
Double Arm Boom Stand
Focus Rack

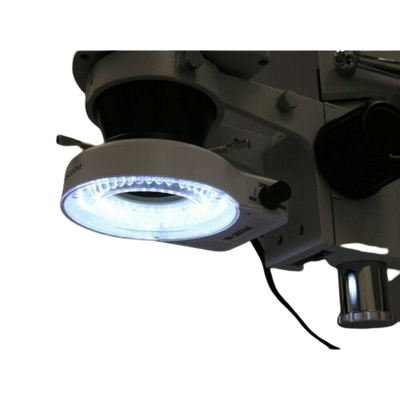

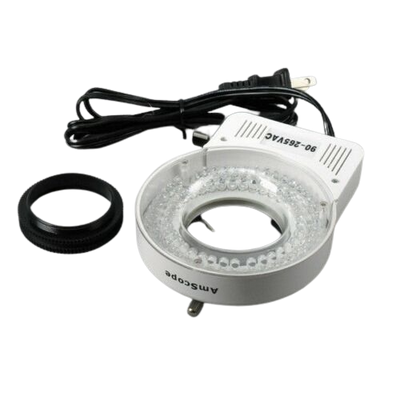

80 LED Ring Light
Ring Adapter for Ring Light
Pair of Eye Guards
User's Manual
Warranty
This product comes with a 5 year factory warranty.
